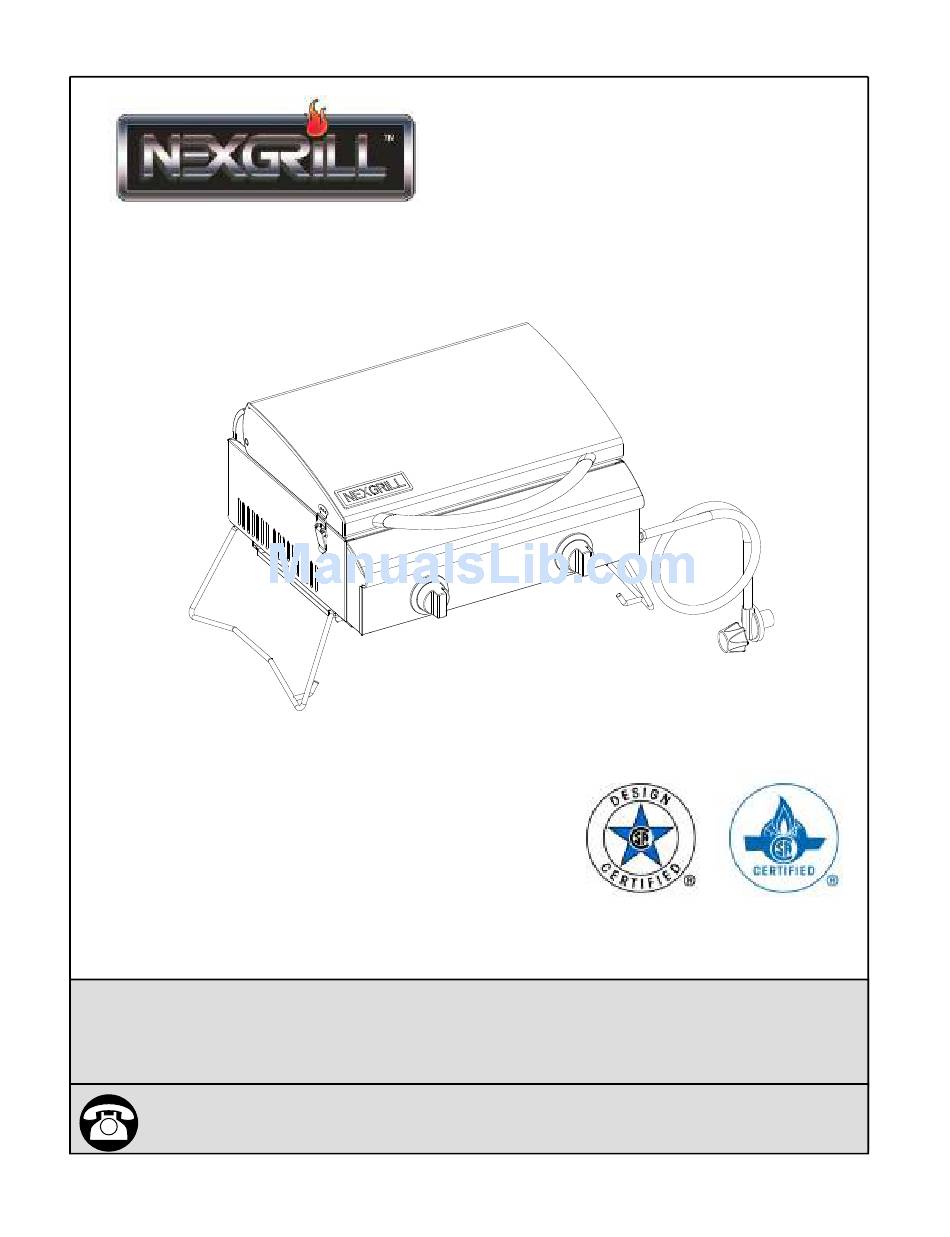

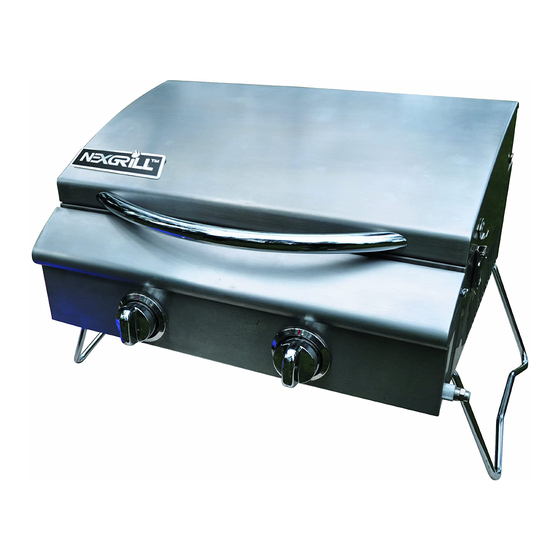

Page 1 OUTDOOR TABLE TOP GAS GRILL MODEL #820-0015 SERIAL # ____________________ MFG. DATE _____________ PURCHASE DATE: ____________ This instructions manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance...
Page 2: Table Of Contents
TABLE OF CONTENTS Table of contents & Warning………...……2 Operation Instructions…………………..10 Safety Information…………………....3 Care and maintenance……………………..11 Package Contents List……………………..5 Trouble shooting……..……………………..13 Preparation………………………….……..5 Replacement Parts List…………..…..14 Assembly Instructions…………...…………6 Warranty……….………………………….…15 Installation Instructions………………….….8 DANGER If you smell gas: Shut off gas to the appliance. Extinguish any open flame.
Page 3: Safety Information
SAFETY INFORMATION Please read the following instructions carefully before attempting to assemble, operate or install the product. Failure to follow these instructions may result in serious bodily injury and/or property damage. If you have questions regarding the product please call customer service at 1-866-984-7455, 8 a.m.-5 p.m., PST, Monday-Friday.
Page 4 The LP gas cylinder shall be used only outdoors in a well-ventilated space and not in a building, garage, or any other enclosed area. The Nexgrill Table Top Grill may be stored indoor if the LP gas cylinder is removed and stored outdoor.
Page 5: Package Contents List
Contact customer service for replacement parts. • Your Nexgrill Table Top Grill is pre-assembled. The only assembly required is to connect the foldable legs and place the flame tamers, cooking grid and control knobs into the grill.
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Fig. 1 1. Remove all the packing materials and move grill close to a desired location. 2. Take out the two foldable legs, insert them into the bracket A, B,C,D under firebox as shown in Fig.1. Note: Expand (using two hands) the legs and they will slide into the brackets as shown.
Page 7 ASSEMBLY INSTRUCTIONS Fig. 4 5. Place on the control knobs as shown in fig. 4. Push and turn the knob and check for sparks. Fig. 5 6. Attach the regulator with 3 feets hose to the propane cylinder by turning the regulator handle clockwise as shown in Fig.
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS GAS HOOK-UP Only the pressure regulator and hose assembly supplied with the grill should be used. Any replacement pressure regulator and hose assembly must be specified by the grill manufacturer. This grill is configured for Liquid Propane. Do not use a Natural Gas supply. Total gas consumption (per hour) with all burners set on “HI”: Main burners 20,000 BTU/Hr.
Page 9 INSTALLATION INSTRUCTIONS DISCONNECTING THE LIQUID PROPANE CYLINDER Turn the grill burner valves “OFF” and make sure the grill is cool. Turn the Liquid Propane cylinder valve “OFF” by turning clockwise until it stops. Detach the regulator assembly from the cylinder valve by turning the quick coupling nut counterclockwise. Place dust cap on cylinder valve outlet whenever the cylinder is not in use.
Page 10: Operation Instructions
WARNING The grill and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressure in excess of 1/2-in.PSI (3.5kpa). The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressure equal to or less than 1/2-in.PSI (3.5kpa).
Page 11: Care And Maintenance
OPERATION INSTRUCTIONS FLAME CHARACTERISTICS Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting as shown in Fig. 10. The following steps should be followed for correcting the flame characteristics: Turn the control knobs and Liquid Propane cylinder valves “OFF.”...
Page 12 CARE AND MAINTENANCE Grill Main Burners - Extreme care should be taken when removing a burner. It must be correctly centered on the orifice before any attempt is made to relight the grill. Frequency of cleaning will depend on how often you use the grill.
Page 13: Trouble Shooting
CARE AND MAINTENANCE THIS COOKING APPLIANCE IS FOR OUTDOOR USE ONLY AND SHALL NOT BE USED IN A BUILDING, GARAGE OR ANY OTHER ENCLOSED AREA. MOVING INSTRUCTIONS Caution: Never move the grill with burner lit. Make sure control knob is in the “OFF” position. Disconnect the propane cylinder from the regulator. Remove the regulator from the grill.
Page 14: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-984-7455, 8 a.m.-5 p.m., PST, Monday- Friday. Part Description Part # Part Description Part # Main Lid 1 pc Main control panel 1 pc Main Lid Screw 2 pcs Control knob bezel 2 pcs Logo...
Page 15: Warranty
Limited Warranty (Model # 820-0015) Nexgrill warrants to the original consumer-purchaser only that this product (Model #820-0015) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase.
