(2) Detaching and refitting the transfer roller unit

Procedure
1. Open the paper conveying unit.
2. Release two hooks and then remove
the transfer roller unit.
3. Check or replace the transfer roller unit
and refit all the removed parts.
Hook

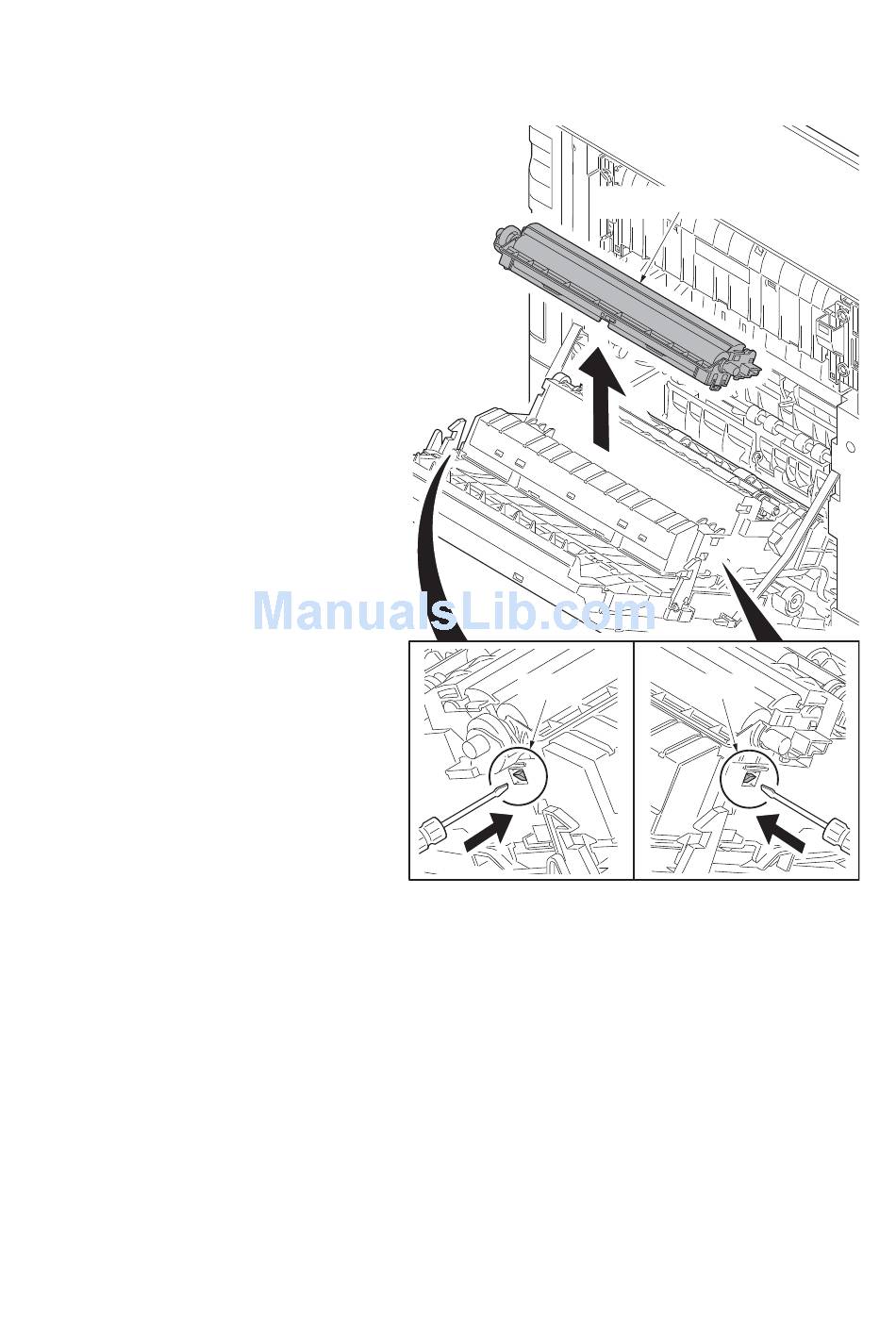

Figure 1-5-34
1-5-24
Transfer roller unit
Hook
