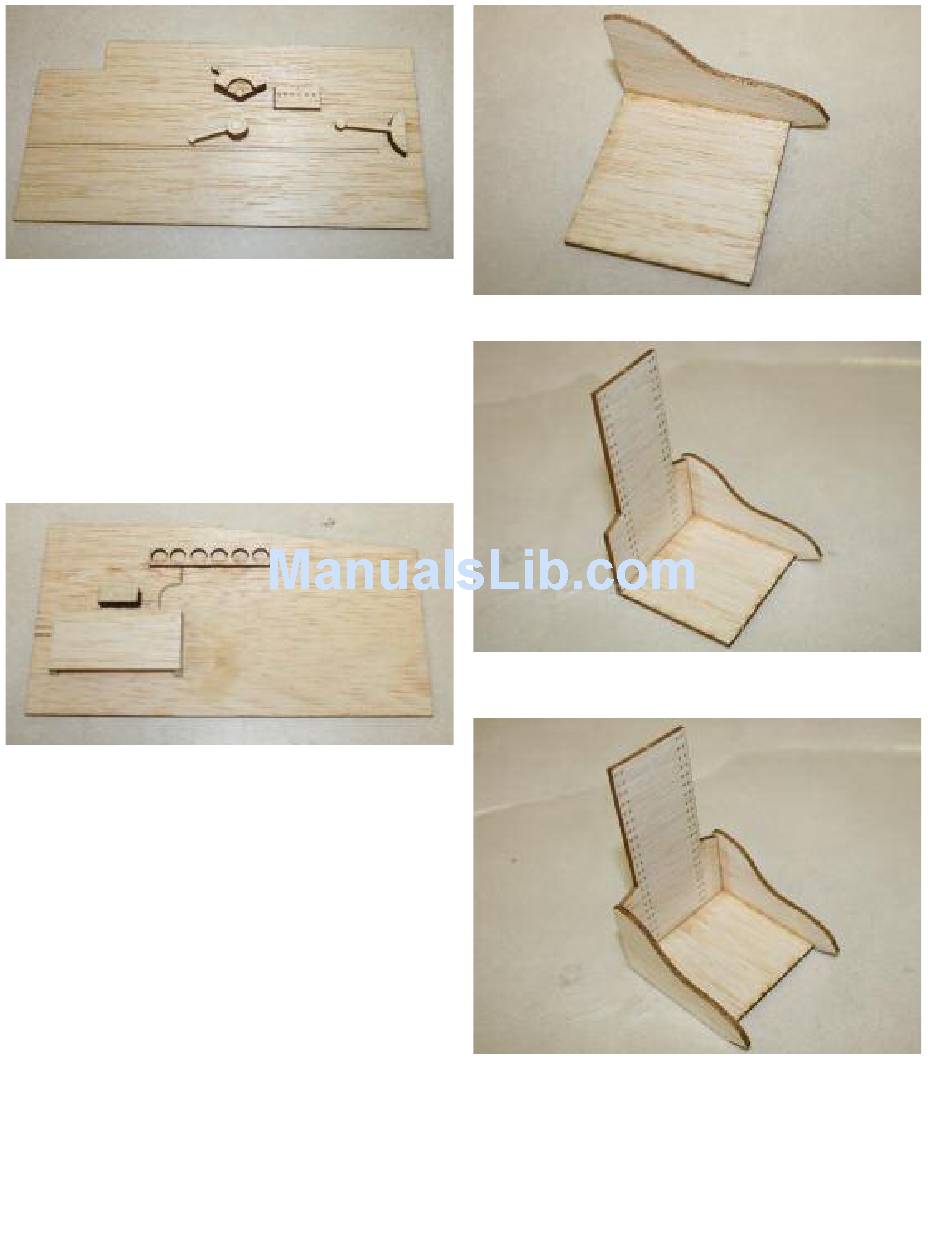

Glue C36 to C4 on the marked location. Glue C37 to C36
with the inscribed lines facing up. Align & glue C38 to C37 as
shown.
Glue C34 to C4 on the scribed location. Glue C35 to C34 as
shown.
Glue C33 to C4 on the scribed location. Glue C32 to C33 as
shown.
Glue C40 to C4 on the scribed location.
Glue C41 to C5 on the scribed location.
Glue C31 to C5 on the scribed location.
Glue C41 to C5 on the scribed location.
Glue C28 & C29 to C5 on the scribed locations. The slots in
C28 & C29 will face toward the bottom and side of C5.
Glue C30 to C28 & C29 as shown. The slots should align
with the holes in F8 & F9. C11 will fit though these slots.
Glue C13 to the inside of C16 as shown
Glue C15 seat back to the top of C13 and inside of C16 with
the rivets facing forward.
Glue the remaining C16 side to the side of C13 and C15 as
shown
