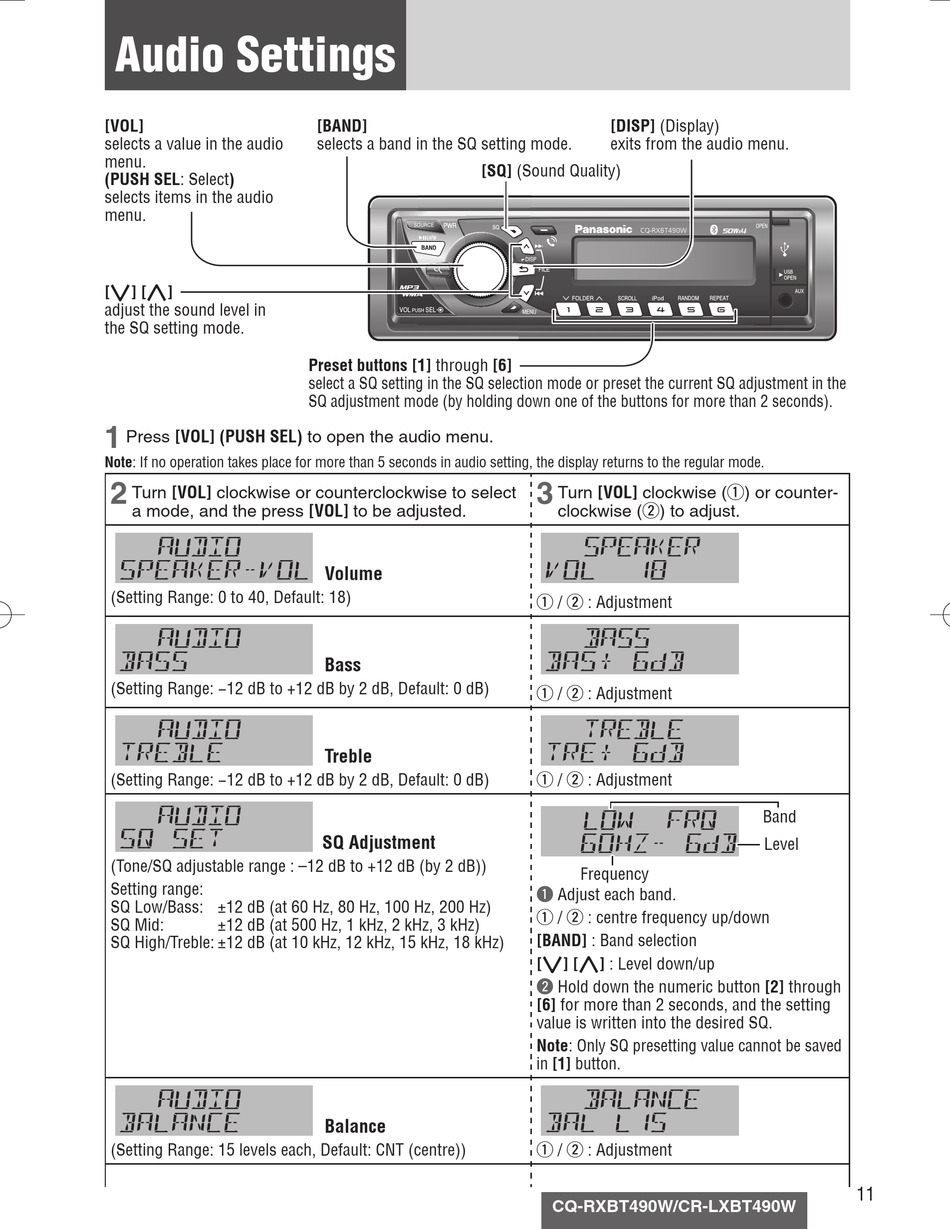

Audio Settings

[VOL]
selects a value in the audio
menu.
(PUSH SEL: Select)
selects items in the audio
menu.
[{] [}]
adjust the sound level in
the SQ setting mode.
1
Press [VOL] (PUSH SEL) to open the audio menu.
Note: If no operation takes place for more than 5 seconds in audio setting, the display returns to the regular mode.
2
Turn [VOL] clockwise or counterclockwise to select
a mode, and the press [VOL] to be adjusted.
(Setting Range: 0 to 40, Default: 18)
(Setting Range: −12 dB to +12 dB by 2 dB, Default: 0 dB)
(Setting Range: −12 dB to +12 dB by 2 dB, Default: 0 dB)
(Tone/SQ adjustable range : –12 dB to +12 dB (by 2 dB))
Setting range:
SQ Low/Bass: ±12 dB (at 60 Hz, 80 Hz, 100 Hz, 200 Hz)
SQ Mid: ±12 dB (at 500 Hz, 1 kHz, 2 kHz, 3 kHz)
SQ High/Treble: ±12 dB (at 10 kHz, 12 kHz, 15 kHz, 18 kHz)
(Setting Range: 15 levels each, Default: CNT (centre))
[BAND]
selects a band in the SQ setting mode.
Preset buttons [1] through [6]
select a SQ setting in the SQ selection mode or preset the current SQ adjustment in the
SQ adjustment mode (by holding down one of the buttons for more than 2 seconds).
Volume
Bass
Treble
SQ Adjustment
Balance
[DISP] (Display)
exits from the audio menu.
[SQ] (Sound Quality)
3
Turn [VOL] clockwise (q) or counter-
clockwise (w) to adjust.
q / w : Adjustment
q / w : Adjustment
q / w : Adjustment
Frequency
Adjust each band.
q
q / w : centre frequency up/down
[BAND] : Band selection
[{] [}] : Level down/up
Hold down the numeric button [2] through
w
[6] for more than 2 seconds, and the setting
value is written into the desired SQ.
Note: Only SQ presetting value cannot be saved
in [1] button.
q / w : Adjustment
CQ-RXBT490W/CR-LXBT490W
Band
Level
