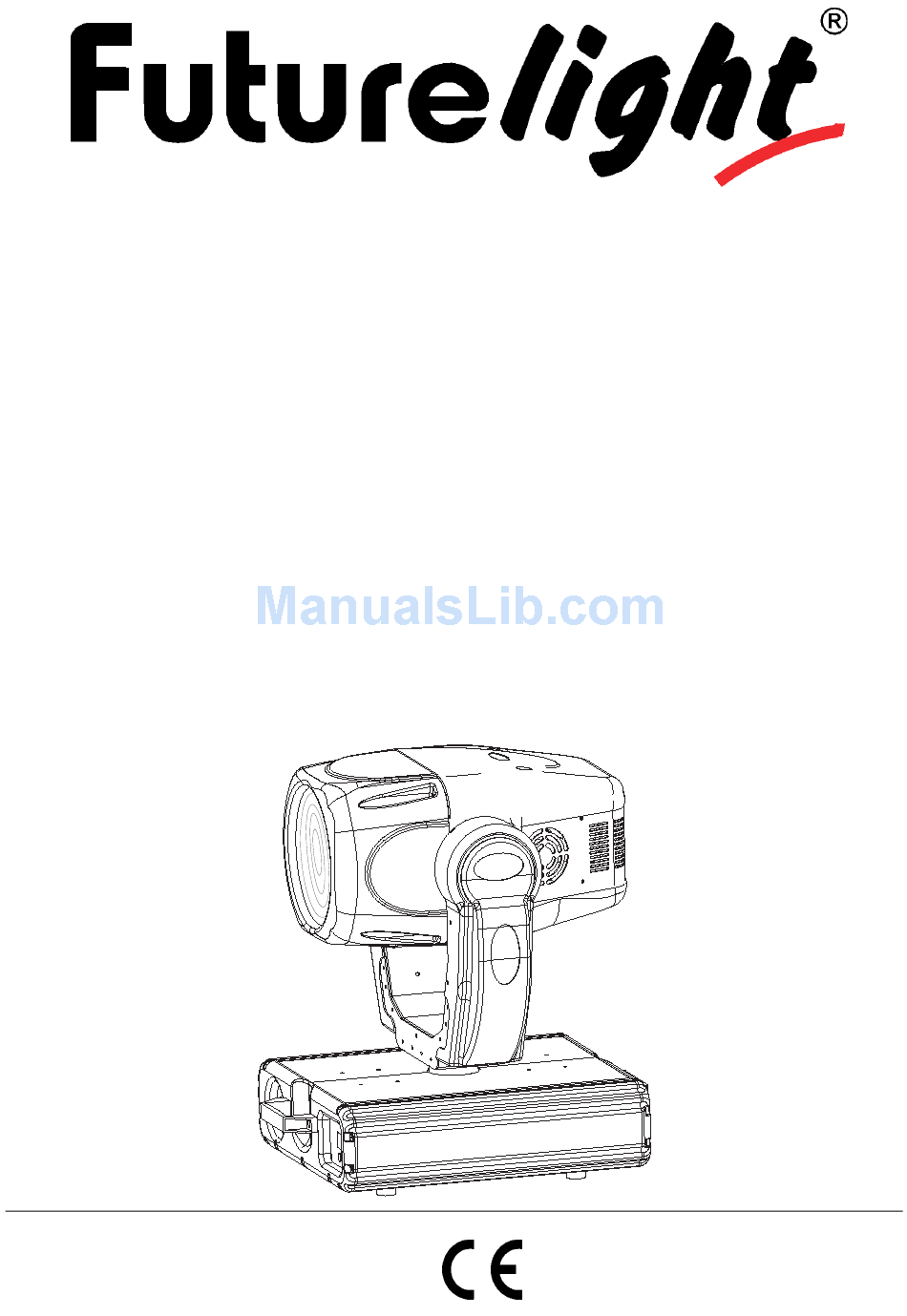

BEDIENUNGSANLEITUNG
USER MANUAL
MODE D'EMPLOI
MANUAL DEL USUARIO
PHW-700
Pro-Head-Wash
©
Für weiteren Gebrauch aufbewahren!
Copyright
Keep this manual for future needs!
Nachdruck verboten!
Gardez ce mode d'emploi pour des
Reproduction prohibited!
utilisations ultérieures!
Réproduction interdit!
Guarde este manual para posteriores usos.
Prohibida toda reproducción.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Future light PHW-700 Pro-Head-Wash
Summary of Contents for Future light PHW-700 Pro-Head-Wash
-
Page 1: Manual Del Usuario
BEDIENUNGSANLEITUNG USER MANUAL MODE D'EMPLOI MANUAL DEL USUARIO PHW-700 Pro-Head-Wash © Für weiteren Gebrauch aufbewahren! Copyright Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos. -
Page 2: Table Of Contents
MULTI-LANGUAGE-INSTRUCTIONS Inhaltsverzeichnis Table of contents Sommaire Contenido EINFÜHRUNG..............................4 SICHERHEITSHINWEISE..........................4 BESTIMMUNGSGEMÄßE VERWENDUNG..................... 5 GERÄTEBESCHREIBUNG ..........................6 Features ................................. 6 Geräteübersicht.............................. 7 INSTALLATION ..............................8 Lampeninstallation/Lampenwechsel ......................8 Lampenjustierung............................9 Projektormontage............................9 Anschluss an den DMX-512 Controller / Verbindung Projektor - Projektor ..........12 Anschluss ans Netz............................ - Page 3 You can find the latest update of this user manual in the Internet under: Vous pouvez trouvez la dernière version de ce mode d'emploi dans l'Internet sous: Vd. puede encontrar la versión más reciente de este manual en el Internet bajo: www.futurelight.com 3/92 51838740X74NXS_V_1_0.DOC...
-
Page 4: User Manual
- pass this manual on to every further owner or user of the product - include every supplementay update with the original manual INTRODUCTION Thank you for having chosen a FUTURELIGHT PHW-700. You will see you have acquired a powerful and versatile device. Unpack your PHW-700. -
Page 5: Operating Determinations
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. -
Page 6: Features
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture. For overhead use (mounting height >100 cm), always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles! Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened. -
Page 7: Overview
Overview (1) Projector head (2) Fresnell-lens (3) Yoke (4) Base (5) Control Board (6) Carrying handle (7) Housing screw (8) Mode/Enter-button (9) Down-button (10) Up-button (11) Display (12) DMX-Out socket (13) DMX-In socket (14) Power switch (15) Power supply (16) Fuseholder (17) Ventilation fan 30/92 51838740X74NXS_V_1_0.DOC... -
Page 8: Installation
INSTALLATION Installing/Replacing the lamp DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before! For the installation, you need one MSR700 G-22 lamp. The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron). -
Page 9: Rigging
Lamp adjustment The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance. Strike the lamp, open the shutter, set the dimmer intensity onto 100 % and direct the light towards a flat surface (wall). Center the hot- spot (the brightest part of the beam) using the 3 adjustment screws "A, B, C”. - Page 10 Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the projector! Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector's weight.
- Page 11 (1) Omega-holders (2) Clamp (3) Safety-rope (4) Quick-lock fastener Screw one clamp each via a M12 screw and nut onto the Omega-holders. Insert the quick-lock fasteners of the first Omega-holder into the respective holes on the bottom of the device. Tighten the quick-lock fasteners fully clockwise. Install the second Omega-holder. 34/92 51838740X74NXS_V_1_0.DOC...
-
Page 12: Dmx-512 Connection / Connection Between Fixtures
DMX-512 connection / connection between fixtures The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly. Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. -
Page 13: Operation
PHW-700 will respond to the controller. If you set, for example, the address to channel 18, the PHW-700 will use the channel 18 to 34 for control. Please, be sure that you don’t have any overlapping channels in order to control each PHW-700 correctly and independently from any other fixture on the DMX-chain. - Page 14 1. After switching on, the device will automatically detect whether DMX 512 data is received or not. If the data is received, the the display will show "A.001" with the actually set address. If there is no data received at the DMX-input, the display will flash "A001" with the actually set address. This situation can occur if: - the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- Page 15 Control channel 6 – Magenta DMX-value Feature 0-255 Magenta (0=white, 255=magenta) Control channel 7 – Yellow DMX-value Feature 0-255 Yellow (0=white, 255=yellow) Control channel 8 – CMY and dimmer speed DMX-value Feature 0-255 Speed adjustment max to min Control channel 9 – CMY colour macros DMX-value Feature DMX-value...
- Page 16 Control channel 14 - Dimmer intensity You can invert the dimmer via the RDIM function. DMX-value Feature 0 - 255 Gradual adjustment of the dimmer intensity from 100 to 0 % Control channel 15 - Switching the lamp, Reset, internal programs DMX-value Feature 0-15...
-
Page 17: Control Board
Control Board The Control Board offers several features: you can simply set the starting address, switch on and off the lamp, run the pre-programmed program or make a reset. The main menu is accessed by pressing the Enter-button for 3 seconds until the display starts flashing. Browse through the menu by pressing the Up-button. -
Page 18: Main Functions
Main functions - Main menu 0 ♦ Press [ENTER] for 3 seconds to enter the main menu "MODE" (display flashing) ♦ Press [ENTER] and select "ADDR", “RUN” or "DISP" by pressing [UP] button. ♦ Press [ENTER] for selecting the desired sub menu. - DMX address setting, Slave setting - DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. - Page 19 ♦ Select "AUTO" or "SOUN" by pressing [UP]. ♦ Press [ENTER] for selecting the desired extension menu. ♦ Select "ALON" or "MAST" by pressing [UP]. ♦ Press [ENTER] to confirm. ♦ Press [EXIT/DN] in order to return to the main menu. Disp - Display the DMX-value, Reverse display, Shut off LED display - Display the DMX 512 value of each channel...
- Page 20 Lamp - Main menu 1 ♦ Press [ENTER] for 3 seconds to enter the main menu (display flashing). ♦ Press [UP] to select “LAMP”. - Lamp on/off With this function you can switch the lamp on or off via the Control Board. ♦...
- Page 21 ♦ Press [ENTER], the display shows“ON” or “OFF”. ♦ Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t. ♦ Press [ENTER] or [EXIT/DN] to exit. rDIM - Dimmer Reverse With this function you can reverse the Dimmer from 100-0 % to 0-100 %. ♦...
- Page 22 ♦ Select “LADJ” by pressing [UP] button. ♦ Press [ENTER], the display shows“ON” or “OFF”. ♦ Press [UP] to select “ON” if you wish to enable this function or “OFF” if you don’t. ♦ Press [ENTER] to confirm. ♦ Press [EXIT/DN] in order to return to the main menu. - Test function of each channel With this function you can test each channel on its (correct) function.
- Page 23 ♦ Press [ENTER], the display shows“S-XX”, “X” stands for the total amount of steps you want to save, so you can call up to 48 scenes in “RUN”. For example if the “XX” is 05, it means that “RUN” will run the first 5 scenes you saved in “EDIT”.
-
Page 24: Error Messages
Error Messages When you turn on the fixture, it will make a reset first. The display may show “XXEr” while there are problems with one or more channels. “XX” stands for the channels equipped with a testing sensor. For example, when the display shows “04Er”, it means there is some error in channel 4. If there are some errors on channel 1, channel 2, channel 4 at the same time, you may see the error message “01Er”, “02Er”,”04Er”... -
Page 25: Replacing The Fuse
Fitting lamp: PHILIPS MSR700 72V/700W G-22 No. 89105015 PHILIPS MSR700/2 72V/700W G-22 No. 89105016 Recommended controllers: FUTURELIGHT CP-528 Controller 16bit No. 51834315 Wizard-512 USB DMX-Software + Interface No. 51860102 Wizard-1024 DMX-Software + Interface No. 51860110 Please note: Every information is subject to change without prior notice. 01.09.2003 ©...
