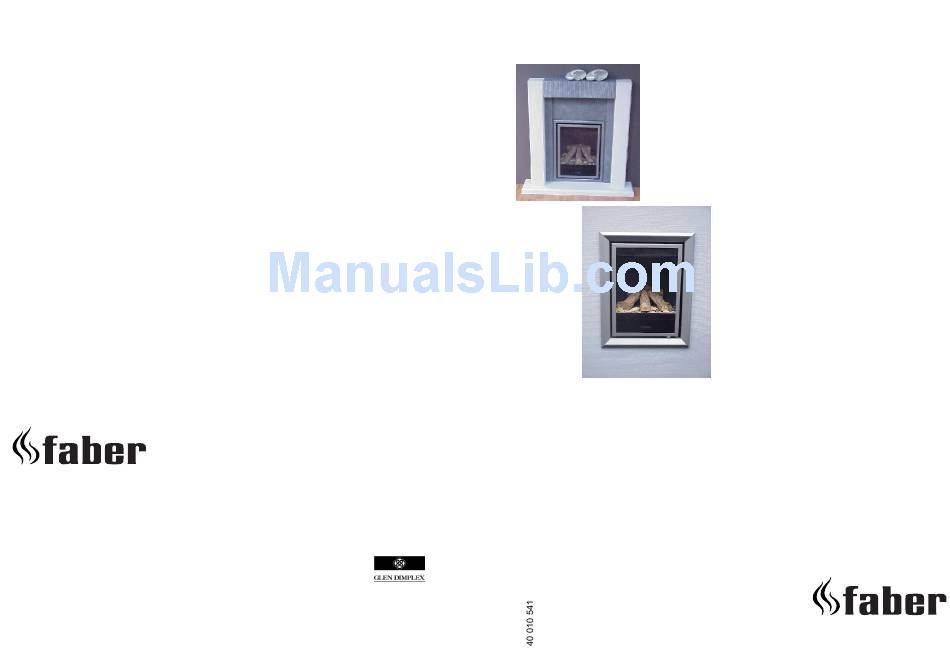

- Page 1 TIMRA VISTA open flue built-in fireplaces installation guide and user manual Saturnus 8 NL-8448 CC Heerenveen Postbus 219 NL-8440 AE Heerenveen T. +31(0)513 656500 “ Log Burner technology” F. +31(0)513 656501 FR 2...
-
Page 3: Table Of Contents
2. SAFETY AND GENERAL INFORMATION ......................... 7 2.1 General safety ............................. 7 This guide is concerning the following types of appliances: 3. INSTALLATION REQUIREMENTS..........................9 TIMRA: for installation in a surround 3.1 Builders opening and surround........................9 3.2 Flue requirements............................12... -
Page 4: Safety And General Information
UK/IRL UK/IRL 2. SAFETY AND GENERAL In the Republic of Ireland installation should be carried out in accordance with IS813, INFORMATION ICP3, IS327, Building Regulations, Codes of Practice, the manufacturer’s instructions and any other rules in force. Before installation, ensure that the local distribution conditions (Identification of the type gas and pressure) and the adjustment of the appliance is compatible. -
Page 5: Installation Requirements
UK/IRL UK/IRL 3.1 Builders opening and surround (continuing) 3. INSTALLATION REQUIREMENTS If the builders' opening is constructed of anything other than brick e.g. stud work and Note: rendered plaster then: Since the appliance is a source of heat, circulation of air occurs. Therefore it is of - Ventilate the space above the appliance (min. -
Page 6: Timra
Any chimney damper or restrictor should be removed. If removal is not possible, they must be secured in the fully open position. Builders opening (mm) Timra Vista Opening width The appliance is intended to be installed to a chimney which was previously used for Opening Height solid fuel, the flue must be swept clean prior to installation. -
Page 7: Instructions For Installation
UK/IRL UK/IRL 3.2.1 Terminal locations 4. INSTRUCTIONS FOR INSTALLATION Site in accordance with BS 5440-1:2000 and the document J 4.1 Gas connection 1. Installation pipes should be in accordance with BS 6891. Pipe work from the meter Flue terminal positions for pitched roofs to the appliance must be of adequate size. -
Page 8: Preparing The Appliance
UK/IRL UK/IRL 4.2 Preparing the appliance (continuing) 4.2 Preparing the appliance 5. Disconnect the TTB cable. TTB connection 6. Remove the burner chamber out of the firebox. 4.3 Fitting the firebox 1. Position the firebox in the fireplace opening. 2. If the appliance is placed on a combustible floor then a fibrelux or similar heatproof 1. - Page 9 UK/IRL UK/IRL 4.3 Fitting the firebox (continuing) 4.3 Fitting the firebox (continuing) 3. The surface of the floor must be sufficiently flat to enable the bottom of the front surround and door to be aligned horizontally. 4. The front face of the fireplace should be reasonably flat over the area covered by the firebox to ensure good sealing.
-
Page 10: Placing The Log Set
(see last figure previous page). Make good combustion, the log set may only be installed in the way specified by Faber sure that the flue collar plate is pressed onto the burner chamber. -
Page 11: Remote Control
UK/IRL UK/IRL 5.2 Installation remote control 5. REMOTE CONTROL 1. Connect the transformer to the receiver box. 5.1 Remote control (if applicable) The remote control is only meant to regulate the flames, it functions only when the pilot burner is ignited. It is therefore not possible to ignite the appliance with the remote control or to shut-off the pilot flame. -
Page 12: Commissioning (Functional Checks)
UK/IRL UK/IRL 5.3 Installation remote control (continuing) 6. COMMISSIONING (functional checks) Setting the right transmission code 6.1. Check pilot ignition The receiver has to learn the code from the transmitter, which is already set at the factory. However the code disappears if the receiver is disconnected from the mains 1. -
Page 13: Spillage Test
This TTB, or any of its parts, must only be exchanged using 1. Carry out the lighting procedure and turn the fire to high. Faber International authorised parts. 2. Allow to warm up for 15 minutes and then using a smoke match with holder set 100% inside the square tube on the top of the appliance between the trim and the 6.5 Check setting pressure... -
Page 14: Handing Over (Final Check And Customer Briefing)
Never place extra elements of any kind into the combustion chamber. To guarantee good combustion, the log set may only be installed in the way specified by Faber International. Any other arrangement can lead to soot on logs or window. Do not use the fire with broken or missing logs. - Page 15 UK/IRL UK/IRL 8.1.1 Cleaning the glass 8.1.3 Burner tray assembly log burner Depending on the intensity of use, you can get a deposit on the glass. This can be 1. Remove the glass frame, trim, log set and burner tray cover. removed with a special non abrasive ceramic glass cleaner (ceramic cook-top cleaner) 2.
- Page 16 UK/IRL UK/IRL 8.1.5 Gas control block LIST OF SPARE PARTS Timra Vista Description Company Part Company Part Trim 208399xx 208400xx Glass frame 208403xx 208403XX Glass 04510200 04510200 Glass ash tray 04510100 04510100 Burner NG 20900187 20900187 Burner LPG 20900188 20900188 A.
-
Page 17: User Guide
UK/IRL UK/IRL TECHNICAL DATA Country UK/IRL UK/IRL Cat. II2H3+ II2H3+ Timra/Vista Timra/Vista Appliance type B11BS B11BS Reference gas Input (nett) [kW] USER GUIDE Efficiency class Inlet pressure [mbar] Gas Rate (15º C en 1013 mbar) m3/h 0,53 0,19 Setting pressure... -
Page 18: Safety Instructions For The User
UK/IRL UK/IRL Important 9. SAFETY INSTRUCTIONS FOR THE A suitable Fireguard conforming to BS6539 and BS6778 should be used with this USER appliance to protect children, the elderly or infirm. Care should also be taken with pets. 9.1 General safety instructions In your own interest and that of safety, all gas appliances must be installed by competent persons. -
Page 19: Controlling The Appliance
UK/IRL UK/IRL 10.1 Lighting the fire (continuing) 10. CONTROLLING THE APPLIANCE Knob A 10.1 Lighting the fire is the OFF position preventing any gas from passing through the control valve to either the pilot burner or to the main burner. By pressing the knob in it is possible to If the main burner or pilot light is extinguished for any reason, do not attempt to turn it anticlockwise. -
Page 20: To Light
UK/IRL UK/IRL 10.2 To light 10.3.1 When the pilot extinguishes Warning! When the pilot extinguishes, for whatever reason, you should wait at least 1. Push in and turn the control knob (A) from anticlockwise to the setting (small 5 minutes before trying to turn it on again. flame). - Page 21 UK/IRL UK/IRL 10.4.2 To extinguish 10.4.1 To light 1. Push (low) till the burner goes out and you can hear the motor clicking. 1. Push in and turn the control knob (A) from anticlockwise to the setting (small flame). You will hear an ignition click. Check that the 2.
-
Page 22: Cleaning And Service Instructions
UK/IRL UK/IRL 10.4.4 Changing the batteries (continuing) 11. CLEANING AND SERVICE Remote control INSTRUCTIONS 1. Remove the cover on the back of the remote control. Important: 2. Carefully remove the battery clip along the side. Pay attention not Turn off the fire and allow it to cool down before commencing cleaning. to pull the wires. -
Page 23: Disposal Of Packaging And Appliance
UK/IRL 12. DISPOSAL OF PACKAGING AND APPLIANCE The appliance packaging is recyclable. The packaging could include the following materials: - cardboard; - CFC-free foam (soft); - wood; - plastic; - paper. These materials should be disposed responsibly and in conformity with government regulations.
