VICO
free-standing gas fireplace
installation guide and user manual
"Log Burner Technology"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VICO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Faber VICO

Summary of Contents for Faber VICO

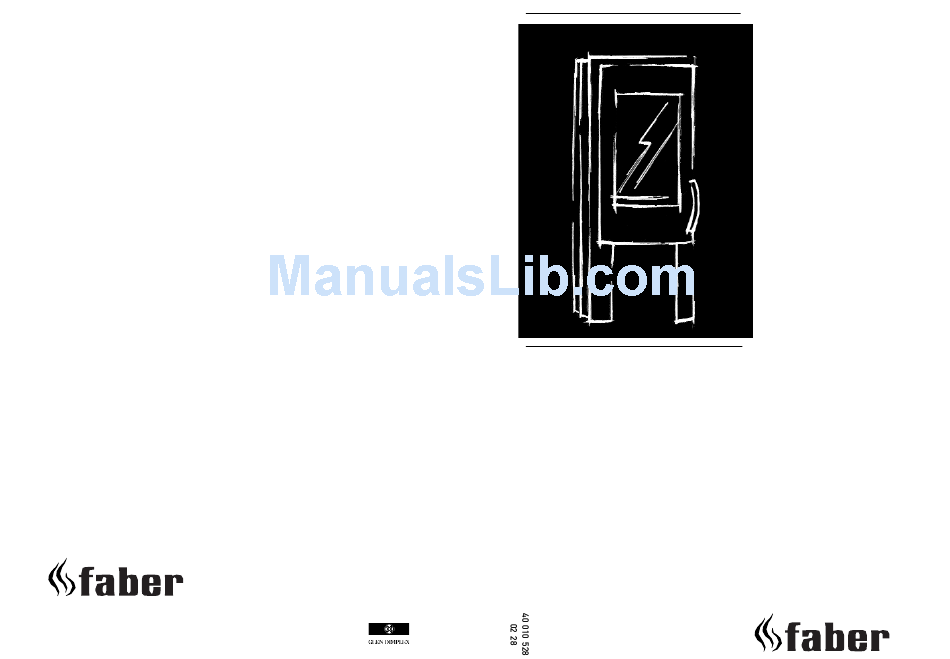

  • Page 1 VICO free-standing gas fireplace installation guide and user manual “Log Burner Technology” Saturnus 8 NL-8448 CC Heerenveen Postbus 219 NL-8440 AE Heerenveen T. +31(0)513 656500 F. +31(0)513 656501...

  • Page 2: Table Of Contents

    UK/IRL CONTENTS 1. INTRODUCTION 2. SAFETY INSTRUCTIONS 3. INSTALLATION REQUIREMENTS Flue requirements Terminal position 4. INSTALLATION-INSTRUCTIONS 4.1 Preparation of the appliance 4.2 Placing the appliance 4.3 Placing of the wood set 5. INSTALLATION OF THE FLUE 5.1 Connection of the flue 5.2 Remote control 5.3 Installation 6.

  • Page 3: Introduction

    UK/IRL UK/IRL 2. SAFETY AND GENERAL 1. INTRODUCTION INFORMATION N N o o t t e e : : t t h h e e s s e e i i n n s s t t r r u u c c t t i i o o n n s s s s h h o o u u l l d d b b e e r r e e a a d d c c a a r r e e f f u u l l l l y y a a n n d d r r e e t t a a i i n n e e d d f f o o r r f f u u t t u u r r e e r r e e f f e e r r e e n n c c e e .

  • Page 4: Safety Instructions

    UK/IRL UK/IRL 3. INSTALLATION REQUIREMENTS Building Regulations and Standards issued as relevant by the Note: Department of the Environment or the Scottish Development Department. Since the appliance is a source of heat, circulation of air occurs. Therefore it is of importance that you do not use the appliance In the Republic of Ireland installation should be carried out in shortly after a renovation of the home.

  • Page 5: Flue Requirements

    UK/IRL UK/IRL 3.1 Flue requirements F F l l u u e e r r e e s s t t r r i i c c t t o o r r The appliance is of the type C11/C31. The appliance will need to be If applicable, in the table is also stated the size of a flue restrictor.

  • Page 6: Terminal Position

    UK/IRL UK/IRL Horizontal extension Example calculation 1: Calculati0n horizontal extension fig. 2a: Flue lenght C + E = 1 + 1 X combination Elbows D = 1 x 2 mtr not allowed 0 remove flue restrictor Total horizontal extension 30 mm flue restrictor 45 mm flue restrictor Measure or calculate effective height...
  • Page 7 UK/IRL UK/IRL 3.2 Terminal position (continuing) Table 4 Avoid locating the terminal in close proximity to plastic materials Dimension T T e e r r m m i i n n a a l l p p o o s s i i t t i i o o n n Balanced flue room sealed such as gutters or other combustibles.
  • Page 8 UK/IRL UK/IRL 4. INSTRUCTIONS FOR INSTALLATION Example of how terminal position is measured 4.1 Preparing the appliance 1. Locate the appliance in the right position, min distance 50 mm from rear wall and 250 mm from a side wall. 2. Open the door by first loosening the locking screw in the door handle, then pull down the handle (See fig.

  • Page 9: Placing The Appliance

    UK/IRL UK/IRL 4.1 Preparing the appliance (continuing) 4.2 Placing the appliance 3. Take the box with the log set out of the combustion chamber. Gas connection 1. - Installation pipes should be in accordance with BS 6891. Pipe work 4. Place the right flue restrictor in the combustion chamber. To from the meter to the appliance must be of adequate size.
  • Page 10 To guarantee good combustion, the log set may only be installed in the logs have to rest on the burner tray! the way specified by Faber International. Any other arrangement can lead to soot on logs or window. Do not use the fire with broken or 6.

  • Page 11: Installation Of The Flue

    UK/IRL UK/IRL 5. INSTALLATION OF THE FLUE 5.2 Remote control (if applicable) 5.1 Connections with use of concentric duct material The remote control is only meant to regulate the flames, it functions only when the pilot burner is ignited. It is therefore not possible to - There are painted flue sections available for the flue run in the ignited the appliance with the remote control or to shut-off the pilot- room.

  • Page 12: Installation

    UK/IRL UK/IRL 5.3 Installation remote control Setting the right transmission code 1. Connect the mains adapter to the receiver box. The adapter is set to the correct voltage in the factory 4.5V. The receiver has to learn the code from the transmitter, which is already done at the factory.

  • Page 13: Commisioning

    UK/IRL UK/IRL 6. COMMISSIONING (functional checks) 6.3 Functional balanced flue check 1. Set the appliance on max. input. 6.1. Check pilot ignition 2. Verify the flame picture, this means no flames against the window, the flame have to come besides the logs, if not check 1.

  • Page 14: Handing Over

    UK/IRL UK/IRL 7. HANDING OVER 8. SERVICING (final check and customer briefing) To ensure safe, efficient operation of the appliance, it is necessary to 7 7 . . 1 1 Instruct the customer on the full operation of the appliance. carry out routine servicing at regular intervals.
  • Page 15 UK/IRL UK/IRL 8.1.1 Cleaning the glass 8.2. Burner tray assembly Depending on the intensity of use , you can get a deposit on the 1. Open the door and remove remote control, log set, grid and burner glass. This can be removed with a special ceramic glass cleaner tray cover.
  • Page 16 UK/IRL UK/IRL Gas control block 8.3 C C o o m m b b u u s s t t i i o o n n t t e e s s t t Governor A BS7967 combustion analysis check should be carried out using an Adjusting screw pilot flame analyser to BS7927 positioned in the flue outlet.

  • Page 17: List Of Spare Parts

    UK/IRL LIST OF SPARE PARTS TECHNICAL DATA VICO V V I I C C O O D D e e s s c c r r i i p p t t i i o o n n C C o o m m p p a a n n y y p p a a r r t t...
  • Page 18 UK/IRL UK/IRL USER GUIDE...
  • Page 19 UK/IRL UK/IRL 9. SAFETY INSTRUCTIONS FOR THE I I M M P P O O R R T T A A N N T T USER A suitable Fireguard conforming to BS6539 and BS6778 should be used with this appliance to protect children, the elderly or infirm. Care 9.1 General safety instructions should also be taken with pets.
  • Page 20 UK/IRL UK/IRL 10. CONTROLLING THE APPLIANCE Once gas is available at the pilot, continued rotation anti-clockwise will cause the piezo igniter to spark. This is accompanied by a click at the valve and should result in the pilot burner igniting. 10.1 Lighting the fire Once the pilot is lit, the control knob should be held pressed in for 10 seconds.
  • Page 21 UK/IRL UK/IRL 10.3 To extinguish 10.4.1 To light 1. For the main burner turn the control knob B clockwise to 1. Push in and turn the control knob (A) from { anticlockwise to position {. the setting (small flame). You will hear a ignition click. Check that the pilot is lit (if not repeat).
  • Page 22 UK/IRL UK/IRL 10.4.3 Setting the right transmission code 10.4.4 Changing the batteries The receiver has to learn the code from the transmitter, which is already There is no risk of electric shock as the low voltage supply is similar done at the factory. However the code disappears if the receiver is to that used in torches.
  • Page 23 UK/IRL UK/IRL 11. CLEANING AND SERVICE 12. DISPOSAL OF THE PACKAGING INSTRUCTIONS AND THE APPLIANCE I I m m p p o o r r t t a a n n t t : : The appliance packaging is recyclable. The packaging could include T T u u r r n n o o f f f f t t h h e e f f i i r r e e a a n n d d a a l l l l o o w w i i t t t t o o c c o o o o l l d d o o w w n n b b e e f f o o r r e e the following materials: c c o o m m m m e e n n c c i i n n g g c c l l e e a a n n i i n n g g .
