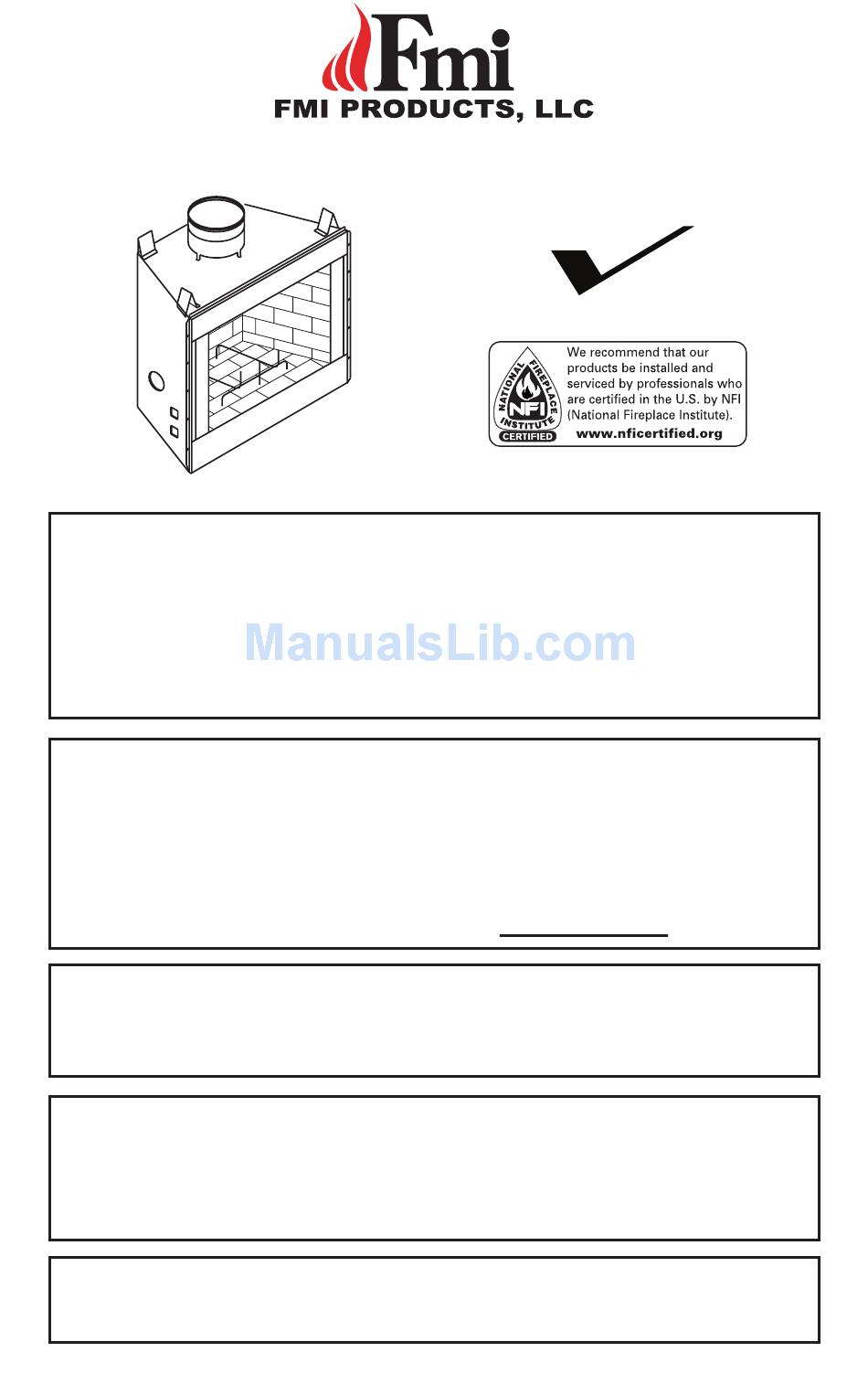

RESIDENTIAL AND OUTDOOR WOOD BURNING FIREPLACE
OWNER'S OPERATION AND INSTALLATION MANUAL
PFS
®
C
US
ICC-ES #ESR-2542

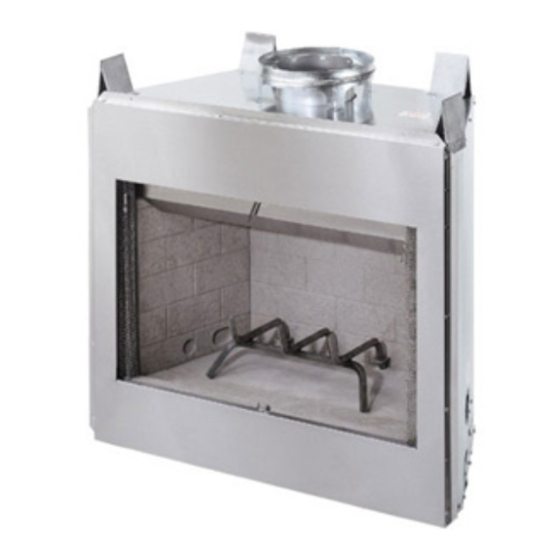

MODELS (V)S36 SERIES
SAVE THIS BOOK
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain re-
placement parts or accessory items when needed. Keep
it with your other important papers.
This fireplace is approved for use as a wood burning
fireplace or for use with a vented gas log approved to
ANS Z21.60 or Z21.84 standards or for use with a vent-
free gas log heater approved to ANS Z21.11.2 standard.
A FMI PRODUCTS, LLC hood must be installed when
using a vent-free log heater (see Accessories, page 19).
This wood burning fireplace complies with UL127-
CAN/ULC-S610-M87 standard as a FACTORY BUILT
APPLIANCE.
FOR CANADA: The authority having jurisdiction (such
as the municipal building department, fire department,
etc.) should be contacted before installation to deter-
mine the need to obtain a permit.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
For more information, visit www.fmiproducts.com
