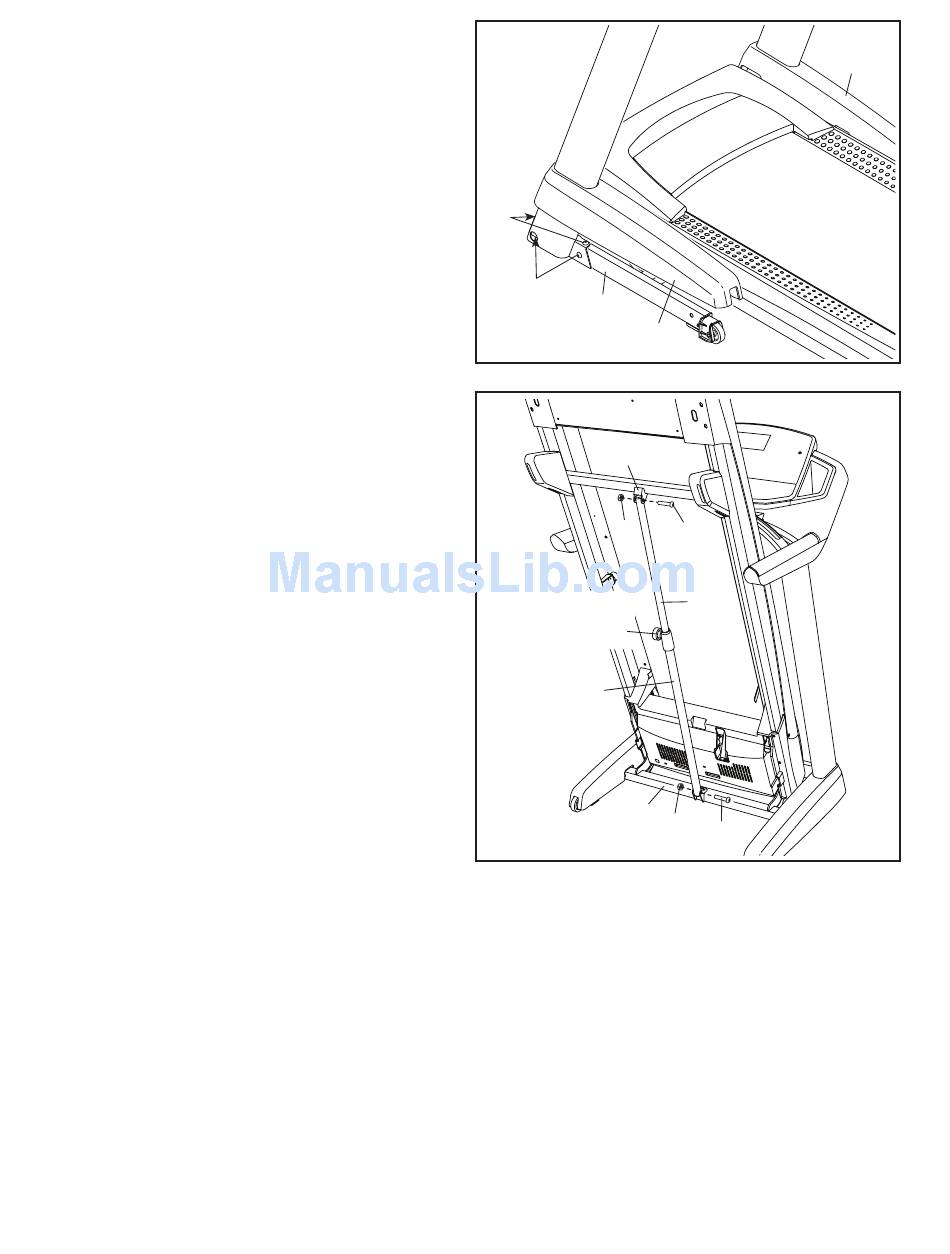

15. Firmly tighten the four 3/8" x 2 3/4" Screws (5)
and then the four 3/8" x 1 1/4" Screws (6) (only
one side is shown).
Press the Left Base Cover (81) and the Right
Base Cover (89) onto the Base (95) until they
snap into place.
16. Raise the Frame (63) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (57) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (57) to
the Base (95) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
Attach the upper end of the Storage Latch (57)
to the bracket on the Frame (63) with a 3/8" x
1 3/4" Bolt (4) and a 3/8" Nut (12).
Lower the Frame (63) (see HOW TO LOWER
THE TREADMILL FOR USE on page 27).
17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see pages 30 and 31).
