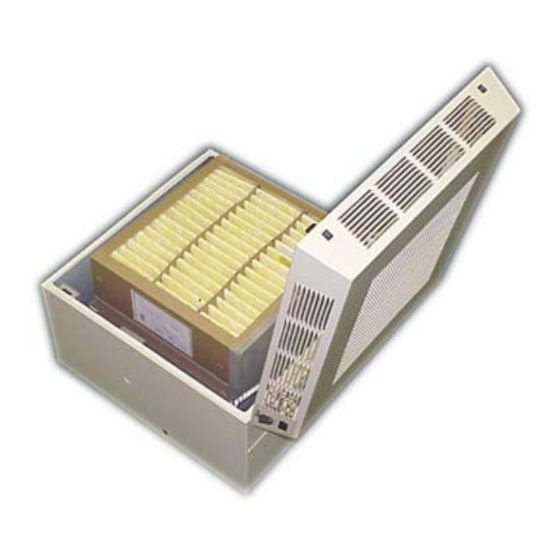

Model CAC 500M
Media Air Cleaner
Installation
Operation
Service
Please read these instructions carefully for
trouble free operation and to get the most out of
your
purchase.
For
further
information
concerning this project, contact your local Trion
representative.
Due to the nature and wide variety of dusts, it is
impossible to list all of the potential hazards
associated with dust control equipment or
systems.
Therefore, it is imperative that the
application and use of this equipment be
discussed with a Trion representative and that
all personnel involved with the equipment be
instructed to comply with the statements in this
manual pertaining to worker safety.
101 McNeill Road • Sanford, NC 27330
Phone: 800-884-0002 • Fax: 800-458-2379 • Email: sales@trioninc.com
www.trioninc.com
Manual Part No. 147527-001 • June 2002
Advertisement
Table of Contents
Related Manuals for Trion CAC 500M
Summary of Contents for Trion CAC 500M
- Page 1 Trion representative. Due to the nature and wide variety of dusts, it is impossible to list all of the potential hazards associated with dust control equipment or systems.
- Page 2 Table of Contents Introduction ........................3 Operation ......................... 3 Control Switch ....................... 3 ON/OFF Light......................3 Filter Access Latches .................... 3 Installation ........................3 T-Bar Ceiling Installation ..................3 Flush Mount Installation ..................4 Electrical Wiring......................5 System Checkout......................5 Maintenance ........................
- Page 3 SPECIFICATIONS Model CAC 500M Rated Capacity 135, 200, 285 CFM 230,340, 400 m Unit Weight 65 lbs / 26.3 kg...
- Page 4 NATIONAL ELECTRICAL CODE REQUIRES FLEXIBLE CONDUIT FOR INPUT WIRING TO A CHAIN SUSPENDED UNIT. 8. If available clearance between permanent ceiling and T-Bar ceiling is less than 11”, mounting angles must be relocated on unit as required. This will result in further extension of the unit below the ceiling line.
- Page 5 6. If a charcoal filter is used, remove filter from week intervals. When there is a noticeable build-up plastic bag and locate on air exit side of filter. of dirt, it is time to replace the filter. 7. Re-install media and charcoal filter. Filters usually last from 2 to 6 months.
- Page 6 VIII. ORDERING PARTS When ordering replacement or spare parts, state the Unit Model No. and Serial Number. These numbers are shown on the data plate located on the cabinet housing . Replacement parts are available through your local Distributor. Orders will be filled in accordance with the terms and conditions of current price sheets.
- Page 7 PARTS LIST Key Number Part Number Description 446009-001 Cabinet Top 121110-002 Light 243939-001 Rotary Switch 242235-001 Knob 134205-002 Latch 134206-002 Latch Actuator 243155-001 Motor 136333-001 Propeller 132315-001 Gasket 7 ft 343017-001 Cover Plate 220400-002 Terminal Block 1000-3000-0101 Media Filter 132309-001 Charcoal Filter (optional)
- Page 8 WARRANTY All Trion air cleaners are warranted for component failure and workmanship for a period of three years after purchase. Do not return defective parts without prior permission from the factory. Contact your local Trion Distributor or Trion Customer Service Department at 1-800-884-002 of Fax 1-800-458-2379 to obtain material return authorizations and service information.
