Summary of Contents for Trion Air Boss 75

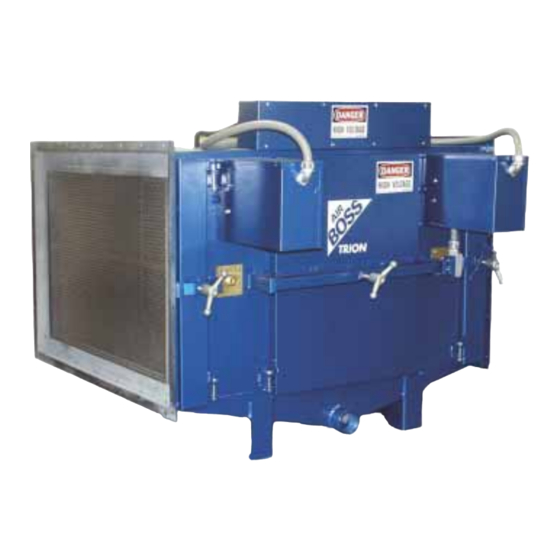

- Page 2 Module support rails are optional for multiple mounting methods. With your unique needs in mind, the Trion Model 75 utilizes five individual sections, each with specific air treatment tasks that are pre-selected, then factory assembled to form a compact, inline, drop-in unit.
- Page 3 • Designed for: simplified installation, ease in service, NFPA 96 standards The same high quality that Trion provides on ALL of the US Navy submarine fleet since 1947 as a sole supplier of air cleaning equipment to the world’s navies.
- Page 4 Durable, compact cabinetry When you invest in a Trion Model 75 you want it not only to fit your unique needs, but your individual space as well. And you want it to last. Trion housings are constructed using 16-gauge zinc-coated steel.
- Page 5 Standard Blower Package The TEFC energy efficient blower is designed for horizontal air flow and mates with the air purification system to provide a uniform distribution of air. The blower wheel is steel, backward inclined, welded construction. Optional UpBlast Blower The NFPA 96 UpBlast fan is designed to mate with the air purifica- tion system and provide uniform air distribution.
- Page 10 Model Selection Guidelines...
- Page 11 BAG HOUSING 32.00 1.50 FLANGE 6.25 CARBON HOUSING 32.00 1.50 FLANGE 6.25...
- Page 12 External losses for ductwork, exhaust hoods, manufacturing equipment with associated entry losses, kitchen hoods, etc., must be added with the above Trion internal equipment losses to calculate total fan static pressure required. 0.14”...
- Page 13 Trion is part of Fedders Indoor Air Quality, which opened its first Asian manufacturing facility in Suzhou, China, in August 2002. Today, and in the future, Trion will continue to develop innovative air cleaning solutions that meet the demands of our customers throughout the world .
- Page 14 Headquartered in Sanford, North Carolina Leading Technology for Cleaner Exhaust Air Since 1947 A i r P u r i f i c a t i o n S y s t e m s...
