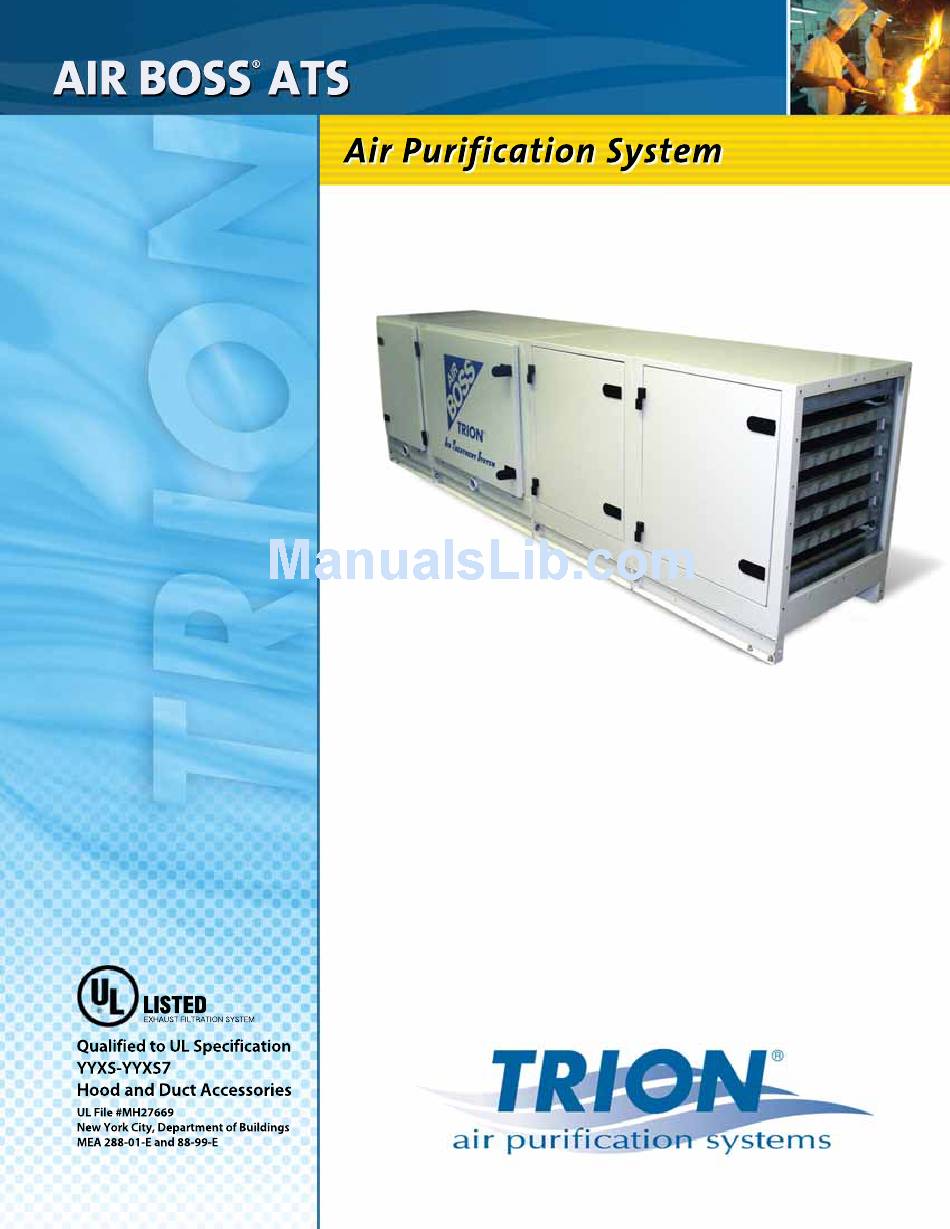

Page 2: Module Name

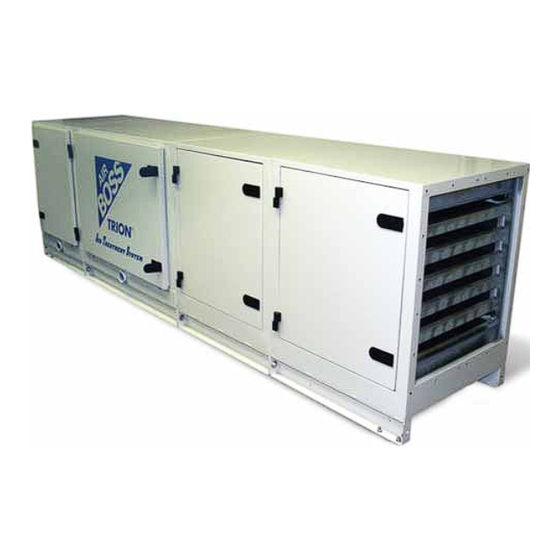

Module support rails are included for multiple mount- ing methods. With your unique needs in mind, the Trion ATS design utilizes five individual sections, each with specific air treatment tasks that are preselected, then factory assembled to form a compact, inline, drop-in unit. - Page 3 • Designed for: simplified installation, ease in service, NFPA 96 standards The same high quality that Trion provides on ALL of the US Navy submarine fleet • Trion Quality since 1947 as a sole supplier of air cleaning equipment to the world’s navies.
- Page 4 Durable, compact cabinetry When you invest in a Trion ATS, you want it not only to fit your unique needs, but your individual space as well. And you want it to last. Trion ATS housings are constructed using 16-gauge zinc-coated steel.
- Page 5 Media Module (optional) The flexibility of the media module provides an efficient means for high efficiency filtration, as a prefilter or afterfilter, depend- ing on your requirement. This section is designed to house a variety of mechanical filters that may be required in your appli- cation.
- Page 12 DIM. “A” DIM. “B” DIM. “D” DIM. “C” 4.00 RAIL MODULE MODULE SYSTEM MODULE SP @ WIDTH (CFM) DESIGNATION RATED CFM DIM. “A” ATS-2 IMPINGER 1.33" 27.96 1,375 ELECTROSTATIC 0.39" MEDIA 0.44" 2,000 ADSORBER 0.25" BLOWER (TOTAL SP 2.41") ATS-4 IMPINGER 1.33"...
- Page 13 0.14” External losses for ductwork, exhaust 0.15” hoods, manufacturing equipment with 0.10” associated entry losses, kitchen hoods, etc., must be added with the above Trion 1.25” internal equipment losses to calculate 0.11” total fan static pressure required. Initial Final 0.17”...
- Page 14 Trion is part of Fedders Indoor Air Quality, which opened its first Asian manufacturing facility in Suzhou, China, in August 2002. Today, and in the future, Trion will continue to develop innovative air cleaning solutions that meet the demands of our customers throughout the world .
- Page 16 Headquartered in Sanford, North Carolina Leading Technology for Cleaner Exhaust Air Since 1947 A i r P u r i f i c a t i o n S y s t e m s...
