Ford 2012 interface installation manual_
This interface can insert High definition RGB navigation video, AV and reverse camera video onto ford, Lincoln
cars[from 2011 and later]. The features are：
Car specific connectors are used to insert HD RGB or CVBS onto ford OEM screens. This interface is
compatiblewithalmostALLfordHDscreens.IncludingtheRaptor,Escape,Fusion,Edge,Lincoln,Explorer
andmore.
OEMsteeringkeybuttonisusedtoswitchtheinput.[longpressontheVOICEkey.],andOEMreverse
cameravideoisdisplayedonwhateverinputlikecarandinsertedvideomode.
Digitalvideotransmissionisusedtodisplay,thusHDnavigationqualityonLCDisguaranteed.
TheOEMspeakerisusedtoinsertthenavigationvoice.Thisall-in-oneunithasnavigationmoduleinside,
whichmakesthesystemverysimpleininstallation.

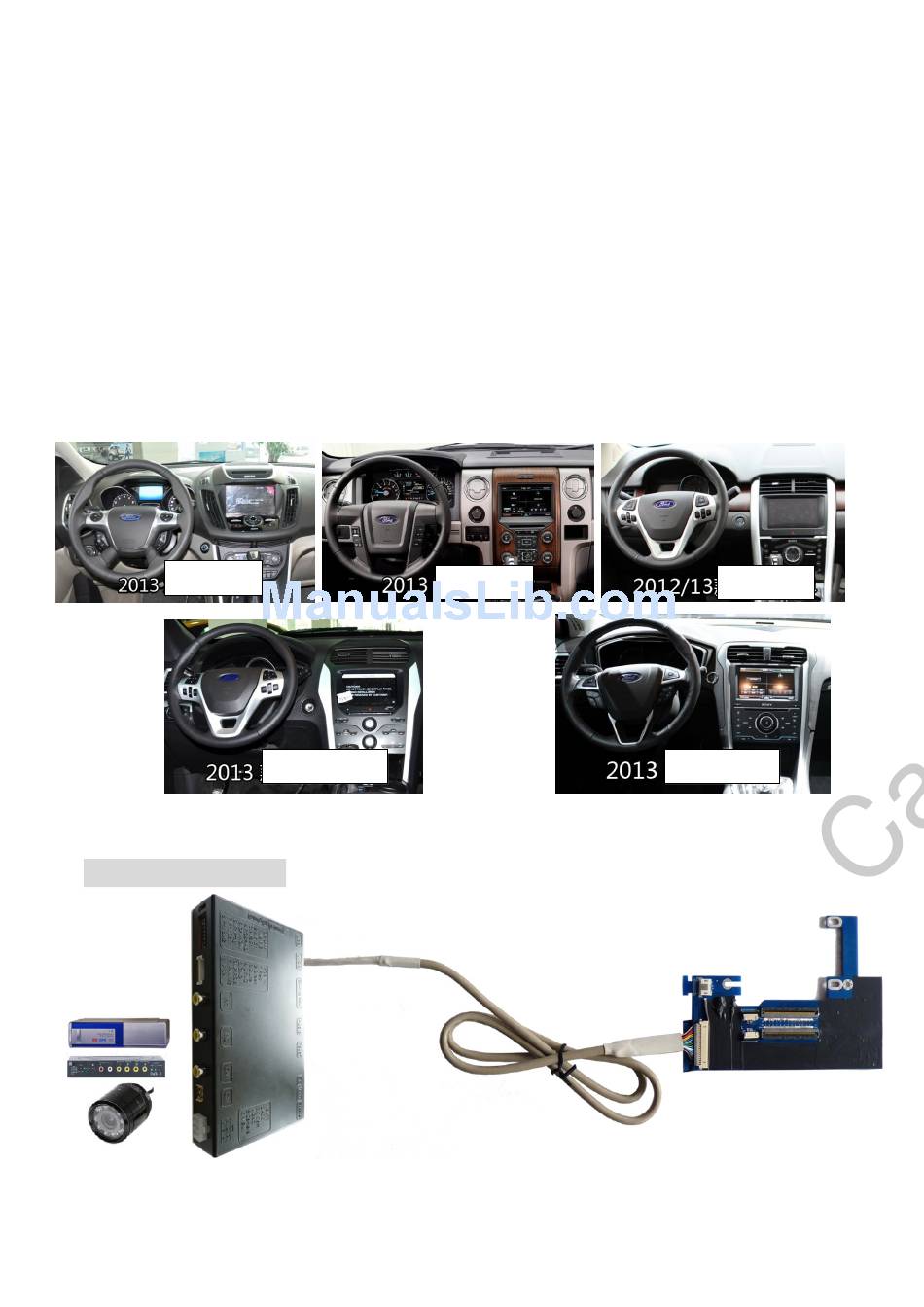

Escape
1. System connection：
1 / 5
www.car-solutions.com
product type: FV‐ ford‐edge
MKX，Explorer
v130418
Raptor
www.car-solutions.com
Edge
Fusion，sMax
support@car-solutions.com
Advertisement
Related Manuals for Car Solutions v130418
Summary of Contents for Car Solutions v130418
- Page 1 Ford 2012 interface installation manual_ product type: FV‐ ford‐edge This interface can insert High definition RGB navigation video, AV and reverse camera video onto ford, Lincoln cars[from 2011 and later]. The features are： Car specific connectors are used to insert HD RGB or CVBS onto ford OEM screens. This interface is ...
-
Page 2: Dip Switches
This 4Pin of navi sound output: The top 2 pins are +5V and GND. [when Touch pin the navi talks, this 5V comes out, and the to external relay to OEM speaker is pulled.] Map SD navi‐modul Audio switch The other 2 pins are sound to a speaker. USB of navi. module Cable to daughter PCB. Note: The navi antenna,SD card slot, USB connector will only be available on the all‐in‐one units. The 4Pin touch connector should not be used on the all‐in‐one unit, it is connected ... - Page 3 Ext RGB input. DIP Interface box DIP switch setting: DIP ...
- Page 4 5.the 3 keys： The 3 side keys are : menu, +,‐ respectively. When menu is press, OSD strings will pop up on screen, and the installer may adjust the best video effect. The +/‐ will change the value. The DVD/TUNER/NAVI is to set the IR code output to the installed device, so people use original knob to control When set to “none” ，the control icons will not pop out When set to “Prog” ， the installer can use DIP6=Down to program the IR code into the interface, so extra new devices can be controlled. The last option is used to enable/disable the guidelines in reverse mode,set it into OFF since almost all ford has OEM guidelines.[Set DIP5=OFF to enable oem video when in inserted navigation mode.] 6．Use the OEM touch panel to control DVD/TV： There are already many DVD and Digital TV remote code inside the interface. The installer can set to the suitable one and then he can use the touch panel to control DVD/Digital TV, without searching for a remote controller. ...
- Page 5 Pin 4,8 GND It is tied to GND inside. Pin 5: data bus for touch screen Pin5,6 should NOT be connected to GND, because it will halt the CPU inside. Pin 6: Leave it open for normal use. clock bus for touch screen. Pin 7 +5V output voltage for switch relay, max 2A output. when in inserted video mode, this pin=5V, when in original car video mode, this pin=0V. 8. Parameters No. name parameter 1 RGB resolution input 800X480 HD suggested. ...
