Dedicated KVM switch and rackmount screen technology
19" High Brightness LCD 1000 cd/m
RS C€
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
HNPW719
7U Rackmount Display Panel
Options :
-SDI / MCS
-AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
info@iTechLCD.com
2
• WEB:
www.iTechLCD.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HNPW719 and is the answer not in the manual?

Questions and answers

Summary of Contents for I-Tech HNPW719

  • Page 1: User Manual

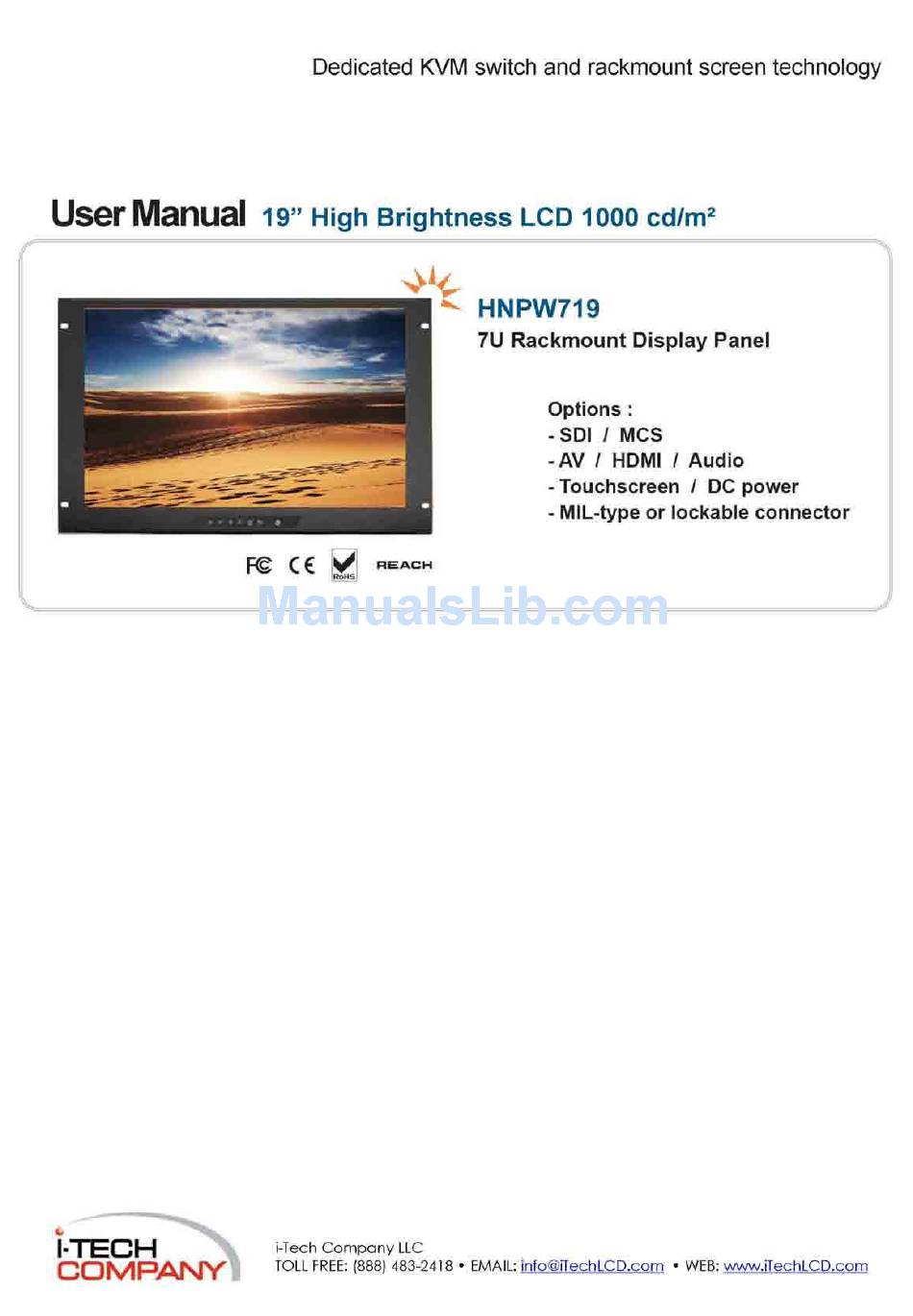

    7U Rackmount Display Panel Options : -SDI / MCS -AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector RS C€ • i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
  • Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3: Table Of Contents

    Contents > HNPW719 Package Content Structure Diagram & Dimension Installation > Specifications / OSD / Remote Controller Product Specifications On-screen Display Operation ( OSD ) > Options 3G/HD/SD-SDI Broadcast-grade input MCS Multi-display control solution AV2.2D Upgrade : DVI-D + VGA + BNC + S-Video + Audio P.
  • Page 4: Before Installation

    Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5: Package Content

    < Part 1 > < 1.1 > Package Content HNPW719unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view LCD panel ( D LCD membrane ( 3 ) Audio speaker Power cord...
  • Page 6 (W x D x H) (W x D x H) Weight Weight 4 8 0 x 5 8 x 3 1 0 mm 529 x124 x495 mm 5.8 kg 7.9 kg HNPW719 18.9x2.3x12.2 inch 20.8x4.9x19.5 inch 12.8 lbs 17.4 lbs...
  • Page 7: Installation

    < 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step O Fix the LCD into the rack. >...
  • Page 8: Product Specifications

    < Part 2 > < 2.1 > Product Specifications Panel Size ( diagonal) 19-inch Widescreen TFT color LCD 1440x900 Display pixel ( dots x lines ) Brightness (typ.) 1000 Contrast Ratio (typ. ) 1000:1 16.7 M Color Viewing Angle (L/R/U/D) 80/80/80/80 Response Time ( ms ) 0.2835...
  • Page 9 Operating Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20-90%, non-condensing Storage Storage Storage Storage Temperature -5to60°Cdegree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random Physical Product ( W x D x H ) 4 8 0 x 5 8 x 3 1 0 mm Specification 18.9x2.3x12.2 inch...
  • Page 10: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu □ □ D l = l Act as an Enter key to select screen setting options A V <...
  • Page 11 < 2.2 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User I ^ ^ M Green Blue Adjust: Select: ♦ + Set: ®/i=i Exit: t OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
  • Page 12: Options : 3G / Hd / Sd-Sdi Input

    < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCDs' SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a...
  • Page 13: Multi-Display Control

    < 3.2 > Options : MCS ( Multi-display Control) More control is always good. Especially when it is necessary and easy. iTechLCD provides MCS solution to control the OSD of various NetView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters.
  • Page 14 < 3.3 > AV2.2D Upgrade Options : - D V I - D (DVI-DTMDS single link) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) A u d DVI-D ' °...
  • Page 15: Av3.0 Upgrade

    < 3.5 > AV3.0 Upgrade Options : - HDMI ( HDMI 1.1, CEA-861-D ) - D V I - D ( DVI-D TMDS single link) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) DVI-D Power BNC S-Video HDMI...
  • Page 16: Options : Touchscreen & Driver

    < 3.6 > Options : Touchscreen & driver HW19" USB Touchscreen Specification Model Model Model Model Model Model Model Model Model Model Model Model Model e-Resistive e-Capacitive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology 5-Wire Resistive Capacitive Touch Point...
  • Page 17 < 3.7 > Options : DC Power ofeTelo Model Input rating Input voltage: 24-Volt 48-Volt 36 ~ 75V Input range: 18 - 3 6 V Input current 50 mA - No load 50 mA 2442 mA - Full load 4880 mA Output rating 12-Volt Output voltage:...
  • Page 18 < 3.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL -type MIL -type MIL-DTL-26482 DC Power *** MS3470W8-33P f f l t f ) Connector Connector ( Male ) MIL - D T L - 26482 MIL - D T L - 26482 MS3470W14-15P MS3470W14-15P...
