2 P
ROGRAMMING
Setting the ProBridge Gateway to Programming mode:
•
Set the device to programming mode by setting the dipswitch at SW4.
(SW4 RS232 SEL on, RS485 SEL off)
•
Ensure the RS232 (4310-0047B) cable is connected from the PC or
Laptop to one of the port 1 connectors on the ProBridge Gateway.
•
Open HyperTerminal on a laptop PC,
o
o
•
Cycle power on the ProBridge Gateway box and follow the instructions
in HyperTerminal.

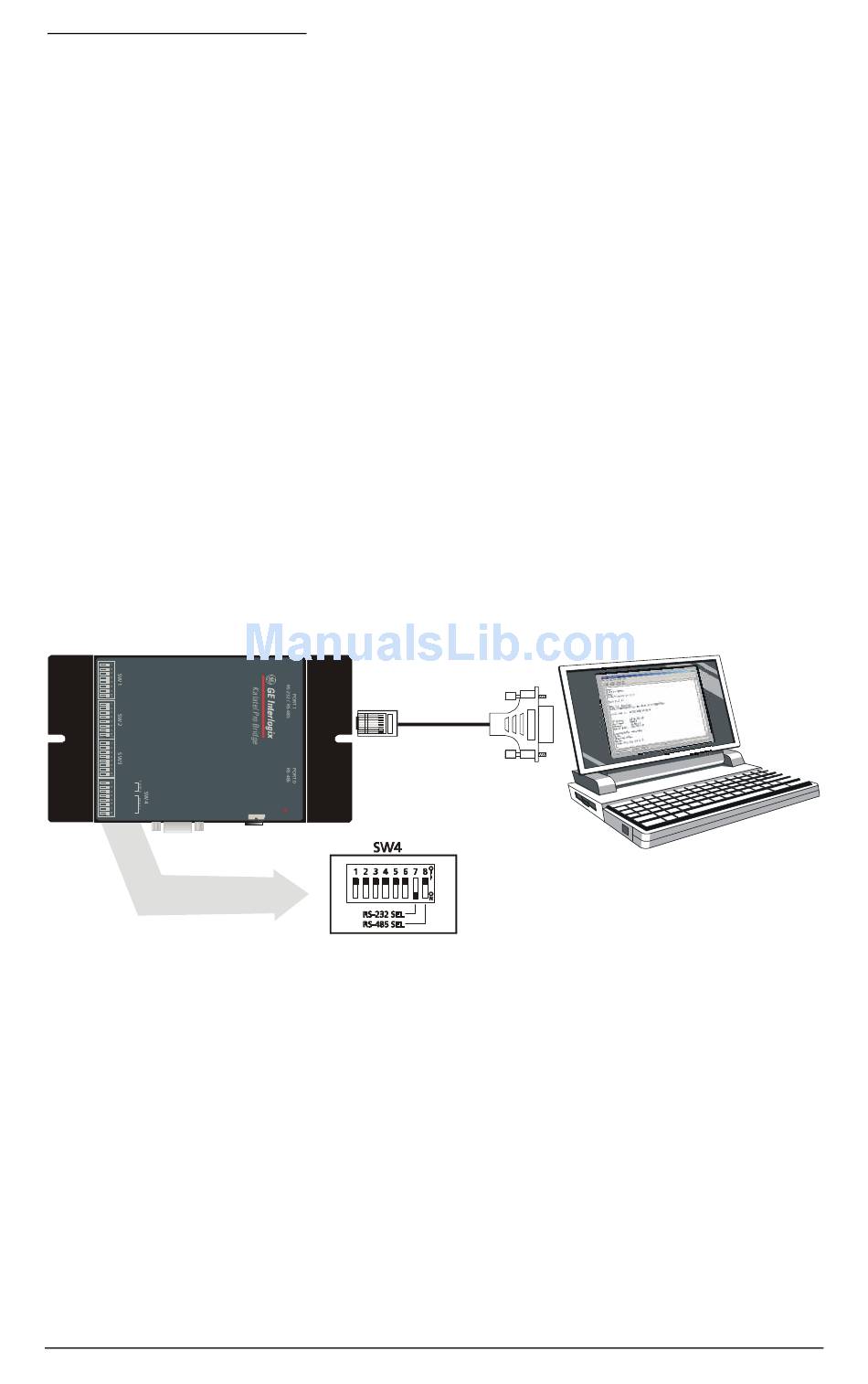

Connection Diagram for programming mode is shown below
ProBridge Gateway
BIAS 0 +
BIAS 0 -
TERM 0
BIAS 1 +
BIAS 1 -
TERM 1
PORT 2
RS-232 SEL
RS-232
RS-485 SEL
8
M
ODE
Set the RS232 port to 9600, N, 8, 1. (File/Properties, "Connect
to" tab, "Configure" button)
Set local echo on (File/Properties, "Settings" tab, "ASCII Setup"
button)
RJ45 (Port 1)
4310-0047B Cable
12V DC
Notebook or PC
Running HyperTerminal (RS232)
for Programming
DB9F
RS232
0150-0265A / August 2003
