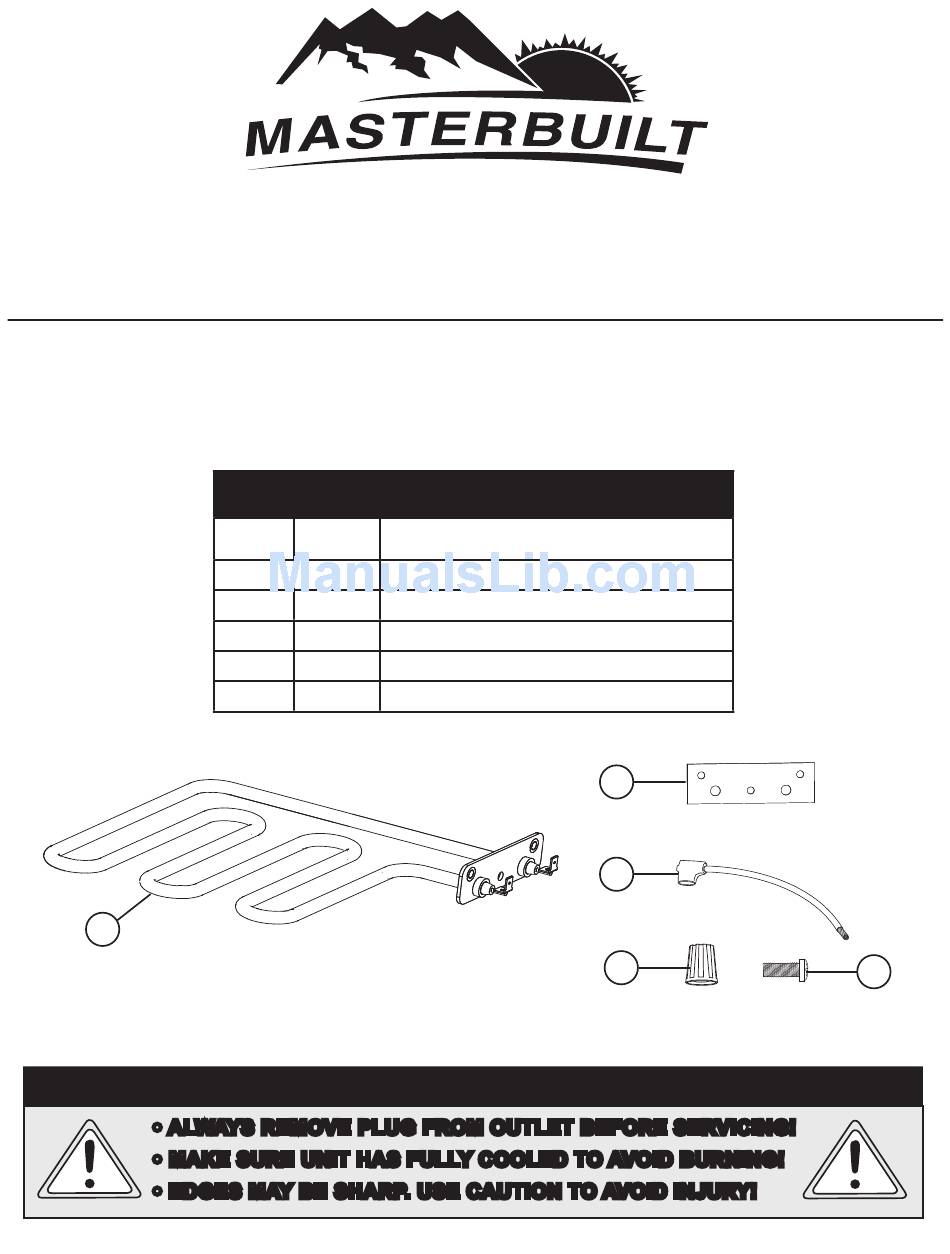

Heating Element Replacement Instruction for
20070710, 20070810, 20070910 Electric Smokers
Required Tools: Short Phillips head Screwdriver
ITEM
NUMBER
1
2
3
4
5
1
• ALWAYS REMOVE PLUG FROM OUTLET BEFORE SERVICING!
• MAKE SURE UNIT HAS FULLY COOLED TO AVOID BURNING!
• EDGES MAY BE SHARP. USE CAUTION TO AVOID INJURY!
Wire Stripper
PARTS AND HARDWARE
QUANTITY
1
Replacement Element
1
Gasket
2
Replacement Wire Assembly
2
Wire Nuts
2
Element Screws
!CAUTION!
DESCRIPTION
2
3
4
5
090126-04SS
Advertisement
Related Manuals for Masterbuilt 20070710
Summary of Contents for Masterbuilt 20070710
- Page 1 Heating Element Replacement Instruction for 20070710, 20070810, 20070910 Electric Smokers Required Tools: Short Phillips head Screwdriver Wire Stripper PARTS AND HARDWARE ITEM QUANTITY DESCRIPTION NUMBER Replacement Element Gasket Replacement Wire Assembly Wire Nuts Element Screws !CAUTION! • ALWAYS REMOVE PLUG FROM OUTLET BEFORE SERVICING! •...
- Page 2 *Disconnect from power source and allow unit to fully cool before replacing heating element. Step 1: Step 2: Remove woodchip loader from unit Remove cooking grates, woodchip holder and drip pan out of smoker. Step 3: Caution! Sharp edges may cause injury! Remove 4 screws from the woodchip Before continuing, be sure to note that edges of housing (A) and detach from inside smoker...
- Page 3 Step 5: Step 6: Unscrew heating element support screws Inside unit, pull heating element from back and detach rubber housing from rear of unit, pulling away gasket from element enclosure. bracket and exposing ground wire. Remove ground wire from heating element as shown. Step 7: Connect ground wire to new heating ele- ment in reverse order of step 6.
-
Page 4: Customer Service
Once unit checks out, unplug unit and allow smoker to fully cool. Step 11: Reassemble smoker following steps 5-1 in reverse order. Unit is now operational. Enjoy! Masterbuilt Manufacturing, Inc. 1 Masterbuilt Court Columbus, Georgia 31907 Customer Service 1-800-489-1581...
