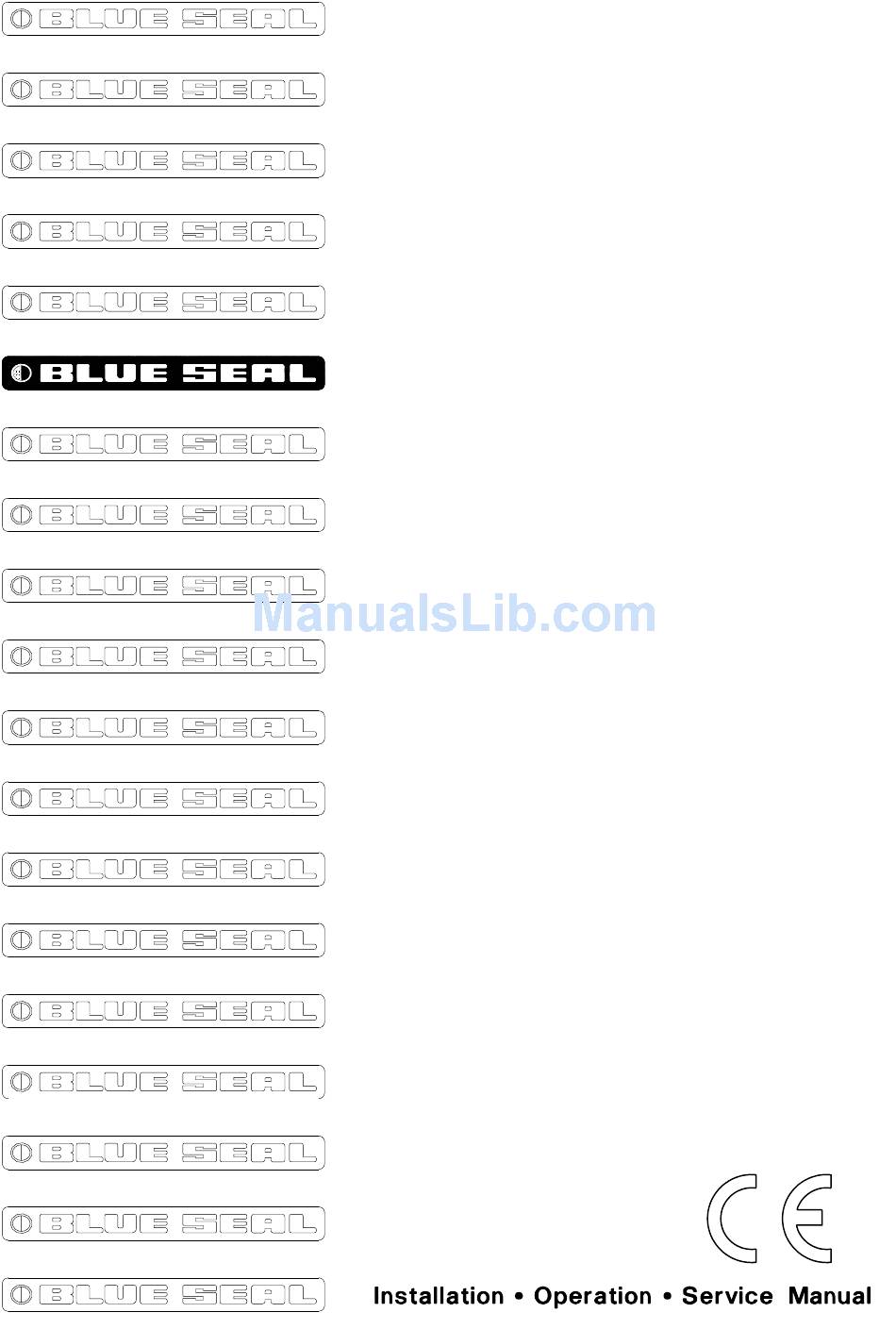

- Page 1 G50 / G50-8 GAS RANGE...
- Page 2 P O Box 10-001 Christchurch New Zealand (03) 3891-007 Fax: (03) 3891-276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal Units 6-7, Mount Street Business Park Mount Street, Nechells Birmingham B7 5 QU (121) 327-5575 Fax: (121) 327-9711 UNITED STATES Moffat Inc...
-
Page 3: Table Of Contents
BLUE SEAL GAS RANGE - G50 6 OPEN BURNER GAS RANGE - G50-8 8 OPEN BURNER GAS RANGE CONTENTS PAGE SPECIFICATION INSTALLATION OPERATING INSTRUCTIONS CLEANING MAINTENANCE SERVICING INSTRUCTIONS SPARE PARTS Date Purchased ............Serial No..............Dealer ............................... Service Agent............................F19455-13... -
Page 5: Specification
The oven is provided with a piezo ignition lighted constant burning pilot, flame failure device and temperature control thermostat. The hob has Flame Failure Protection for each open burner. MODEL NUMBERS OF RANGES INCLUDED IN THIS SPECIFICATION: G50-D 6 open burners plus oven G50-C 4 open burners plus 300mm griddle plus oven... -
Page 6: Overall Dimensions
SPECIFICATION Model Input Gas Rate Input Gas Rate (G20) (G20) (G31) (G31) G50-8D 46.0 kW 4.41 m³/h 45.5 kW 3.25 kg/h G50-8C 41.5 kW 3.98 m³/h 41.0 kW 2.93 kg/h G50-8B 37.0 kW 3.55 m³/h 36.5 kW 2.60 kg/h G50-8A 32.5 kW 3.12 m³/h 32.0 kW... - Page 7 SPECIFICATION WEIGHT (NETT) Model G50D 220kg Model G50-8D 295kg GAS CONNECTION Gas connection point 3/4" BSP male thread located 75mm from RH side, 55mm from rear and 610mm from floor.
- Page 8 SPECIFICATION...
- Page 9 SPECIFICATION...
-
Page 10: Installation
INSTALLATION It is important that this Range is installed correctly, and that the operation is correct before handing over to the user. THIS APPLIANCE MUST BE INSTALLED TO THE REQUIREMENTS OF THE APPROVED LOCAL INSTALLATION CODE LOCAL AUTHORITY REQUIREMENTS, COVERING GAS, FIRE AND HEALTH, AND IN ACCORDANCE WITH THE NATIONAL INSTALLATION CODES: THIS UNIT MUST BE INSTALLED BY A QUALIFIED INSTALLER. - Page 11 INSTALLATION There are two pressure test points available for measurement of correct appliance operating pressure. Either can be used and they are located; On the left hand end of the hob manifold, behind the hob control panel. On the oven thermostatic gas control, behind the oven control panel. Note that the two pressure test points are found on the oven thermostatic gas control, of which the rear test point should be used in this case.
- Page 12 INSTALLATION It is important that adequately sized piping runs directly to the connection joint on the oven, with as few tees and elbows as possible to give maximum supply volume. An accessible shut-off valve must be fitted on the supply line before the connection joint and pressure regulator.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS THIS APPLIANCE IS ONLY FOR PROFESSIONAL USE AND TO BE USED BY QUALIFIED PEOPLE. NOTE: Components having adjustments protected (e.g. paint sealed) by manufacturer are only allowed to be adjusted by an authorised service agent. They are not to be adjusted by the user. - Page 14 OPERATING INSTRUCTIONS Hold in thermostat knob. With the thermostat knob held in press Piezo button to ignite pilot burner. Repeat until lit. View the lit burner through the inspection hole. Release knob approximately 10 seconds after lighting pilot. Pilot should now remain alight - if not, repeat Steps 2 to 4. The oven temperature can now be set by rotating the control knob anticlockwise to any position from the 1 - 7 markings.
-
Page 15: Cleaning
CLEANING & MAINTENANCE CLEANING THE GAS SUPPLY MUST BE OFF DURING CLEANING OR MAINTENANCE. EXTERIOR Clean with detergent. Baked on deposits or discolouration may require a good quality stainless steel cleaner or stainless steel wool. Always apply cleaner when the range is cool and rub in the direction of the "grain". -
Page 16: Servicing Instructions
SERVICING INSTRUCTIONS NOTE: Components having adjustments protected (e.g. paint sealed) by manufacturer are only allowed to be adjusted by an authorised service agent. They are not to be adjusted by an unauthorised service person. OVEN BURNER AIR ADJUSTMENT All gas adjustments should be done by a Qualified Person. The hob open top, griddle and oven burners can all be adjusted to give the most efficient flame. - Page 17 SERVICING INSTRUCTIONS OVEN BURNER PRESSURE To check oven burner pressure, fit a pressure gauge to the front pressure test point on the oven thermostatic gas control located behind the oven control panel. The oven burner pressures should be measured with the oven burner operating: a) At maximum flow setting (refer oven maximum flow setting).
- Page 18 SERVICING INSTRUCTIONS The minimum flow rate adjuster screw is located at the left hand bottom corner on the front of the control. This screw should always be paint sealed. PILOT FLAME SETTING The pilot flame adjusting screw should always be fully open and is factory set and sealed in this state.
- Page 19 SERVICING INSTRUCTIONS D. GRIDDLE MAIN BURNER To replace unscrew 3/16" screw at rear of burner and remove. Refit new burner. GAS CONTROL - Servicing To regrease gas control, remove control knobs and control panel. Remove 2 screws holding shaft plate to gas control body and remove control shaft and plate.
- Page 20 SERVICING INSTRUCTIONS OPEN BURNERS GAS CONTROL - Servicing To regrease gas control follow same procedure as in C for griddle gas controls. GAS CONTROL - Replacement To replace gas control follow same procedure as in C for griddle gas controls. THERMOCOUPLE Should the open burner not remain alight when the control knob is released after ignition, it is likely that the thermo-electric flame failure system has a fault.
-
Page 21: Spare Parts
SPARE PARTS RANGE G50, G50-8 Part No Description Open Burners 004573 Burner Front 004574 Burner Rear 004618 Burner Cap 037190 Injector (NATURAL) Ø 1.90 mm 037110 Injector (PROPANE) Ø 1.10 mm 019430 Gas Control 019428 Thermocouple - Front M9 x 320 mm UNIFIED 019429 Thermocouple - Rear M9 x 850 mm UNIFIED 019371... - Page 22 SPARE PARTS RANGE G50, G50-8 Part No Description Oven 012248 Oven Burner 018691K Oven Pilot 020253 Oven Thermocouple 032280 Oven Burner Injector (NATURAL) Ø 2.80 mm 032150 Oven Burner Injector (PROPANE) Ø 1.50 mm 019217 Pilot Orifice (PROPANE) Ø 0.23 mm 018693 Pilot Orifice (NATURAL) Ø...
