Models:
57920 – 4" x 4-5/16" Thin, Vinyl Pad
57922 – 5" Dia. Thick, Vinyl Pad
57923 – 4-1/4" x 4-1/2" Thick, Hook Pad
57924 – 5" Dia. Thick, Hook Pad
57925 – 4-1/4" x 4-1/2" Thick, Vinyl Pad
57926 – 6" Dia. Thick, Vinyl Pad
57927 – 6" Dia. Thick, Hook Pad
WARNING
!

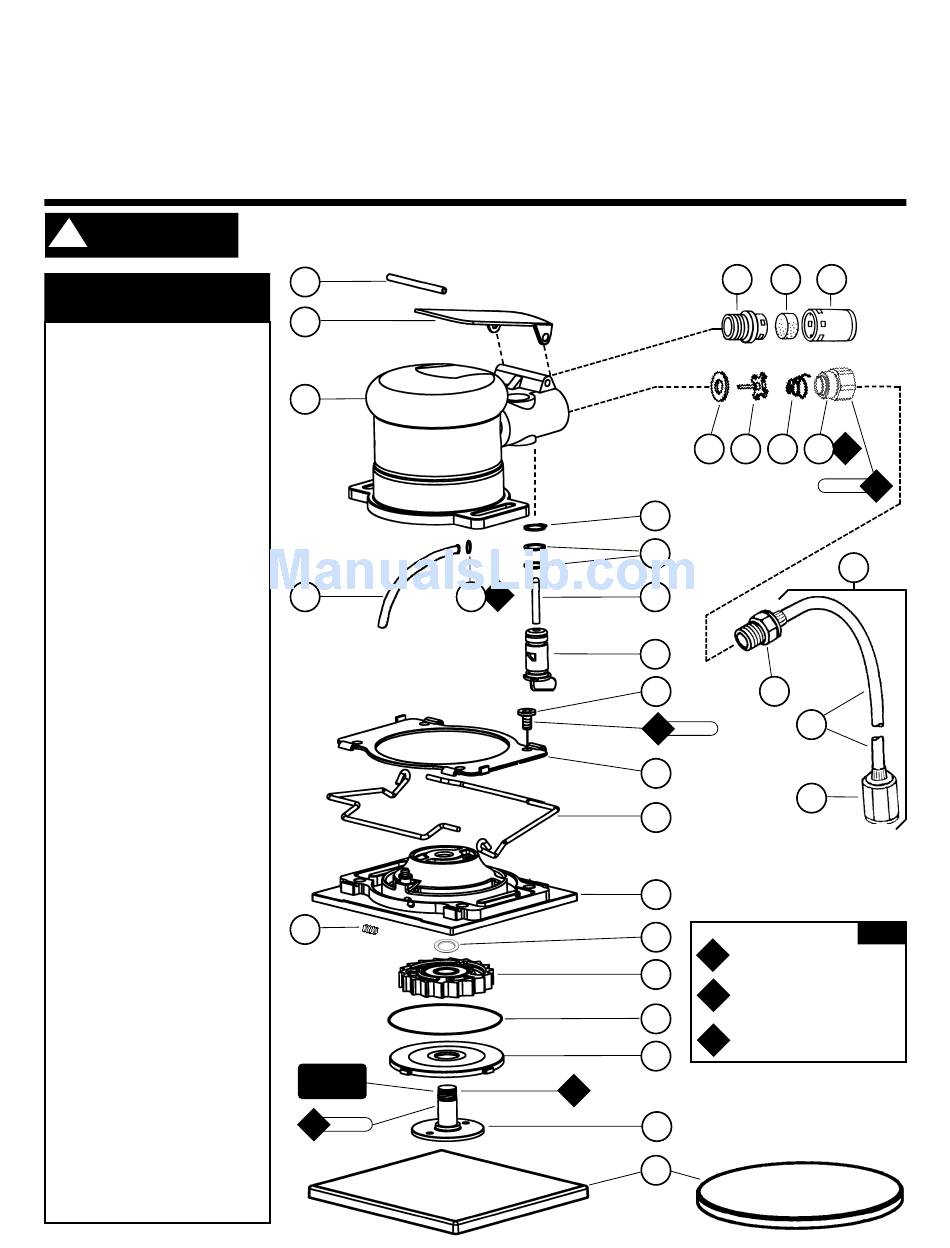

Index Key
No. Part # Description
1 95979 Pin
2 57986 Lever
3 57921 Housing - 57920
57963 Housing - 57922
57964 Housing - 57923
57967 Housing - 57924
57941 Housing - 57925
57911 Housing - 57926
57912 Housing - 57927
4 57988 Inlet Hose Assembly
5 12156 O-Ring
6 95697 Snap Ring
7 01025 O-Ring (2)
8 01477 Valve Stem
9 57064 Speed Regulator
10 95405 Button Head Screw (4)
11 57982 Clip Retainer
12 57980 Spring Clip (2)
(Used On Model-57920 Only)
13 57987 Square Base Plate Assy.
57997 Round Base Plate Assy.
14 96493 Set Screw
15 58092 Spacer
16 57981 Turbine Wheel Assembly
17 97121 O-Ring
18 57983 Base Plate Door
19 57979 Motor Shaft
20 57999 Vinyl Pad - 57920
56249 Vinyl Pad - 57922
57998 Hook Pad - 57923
56248 Hook Pad - 57924
56244 Vinyl Pad - 57925
56269 Vinyl Pad - 57926
56268 Hook Pad - 57927
21 57066 Muffler Body
22 56027 Muffler Insert
23 56028 Muffler Cap
24 01464 Seal
25 01472 Tip Valve
26 01468 Spring
27 01494 Inlet Bushing
28 96457 Male Hose Adapter
29 96458 Hose
30 96456 Female Hose Adapter
31 96455 Hose Assembly
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
1
2
3
4
14
Left Hand
Threads
T
15 N•m

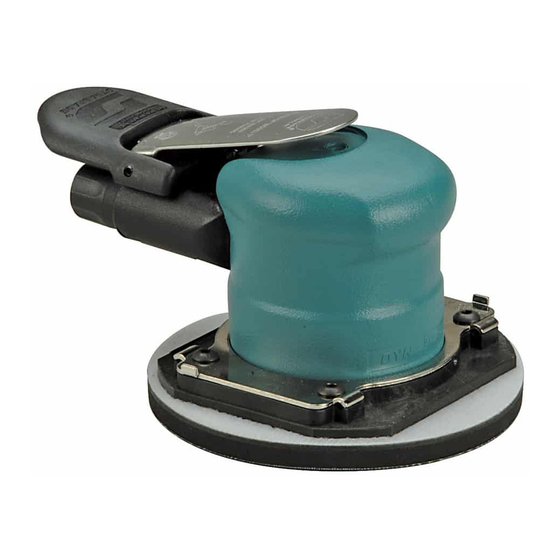

"Model T" Sander
G
5
1
A
2
Parts Page Reorder No. PD03•11
Effective February, 2003
Supercedes PD00•03R
Dynabug
Air Motor and Machine Parts
21
22
23
24
25
26
27
23 N•m
6
7
8
9
10
28
29
T
3.4 N•m
11
30
12
13
15
Grease: G
= Lubriplate
G
1
630 AA
16
A
Adhesive: A
= Loctite #271
2
A
= Loctite #567
17
8
T
Torque: N•m x 8.85 = In. - lbs.
18
19
20
'
s
A
8
T
31
KEY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynabrade Dynabug 57920
Summary of Contents for Dynabrade Dynabug 57920
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information. Index Key No.
-
Page 2: Operating Instructions
2. Some silencers on air tools may clog with use. Clean and replace as required. 3. An Air Line Filter-Regulator must be used with this air tool to maintain all warranties. Dynabrade recommends the following: 11402 Air Line Filter-Regulator – Provides accurate air pressure regulation, two-stage filtration of water contaminants. -
Page 3: Machine Specifications
(or equivalent) around the threads of the inlet bushing and tighten into housing to 23 N•m/200 in. - lbs. Note: This tool is an oil-free Dynabrade Tool. Therefore no air lube should be placed into the tool. Operate the machine for approximately 30 seconds before application to workpiece to determine if machine is working properly and safely. -
Page 4: Optional Accessories
Visit Our Web Site: www.dynabrade.com Email: Customer.Service@Dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1 ©...
