Models:
57900 — 15,000 RPM, Detail Sander
57902 — Wet Dynafine
57910 — Versatility Kit
57930 — 15,000 RPM, Finger Sander
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools (ANSI B186.1) and any other applicable safety codes
WARNING
!
and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for more complete safety information.

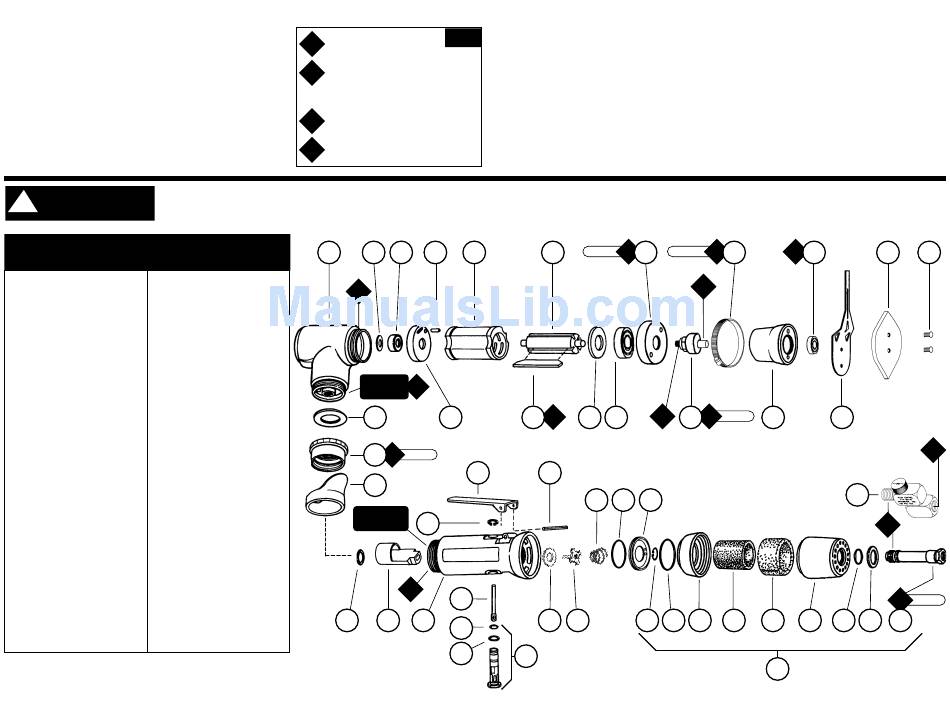

Index Key
No. Part # Description
1 96258 Screw (2)
25 01448 Throttle Lever
01462 Safety Lock Lever
2 57953 Hook Face Pad
26 12132 Pin
3 57932 3/8" Sanding Arm
27 01488 Housing
4 11016 Bearing
28 01449 Valve Stem
5 57975 Boot Assembly
29 95730 O-Ring
6 95884 Boot Clamp
Assembly
30 01024 O-Ring
7 57961 Cam Assembly
31 01469 Speed Regulator
8 57962 Exhaust Cover
32 01464 Seal
9 56258 Bearing
33 01472 Tip Valve
10 53161 Front Bearing Plate
34 01468 Spring
11 50777 Rotor
35 96065 O-Ring
12 01480 Blades (4/pkg.)
36 57970 Air Control Ring
13 01476 Cylinder
37 95711 Retaining Ring
14 50767 Pin
38 95438 O-Ring
15 02673 Rear Bearing Plate
39 94521 Muffler Base
16 02696 Bearing
40 94524 Sintered Muffler
17 02679 Shield
41 94525 Felt Muffler
18 57959 Housing
42 94522 Muffler Cap
19 01548 Gasket
43 95375 O-Ring
20 01461 Lock Nut
44 94526 Spacer
21 01558 Collar
45 94523 Inlet Adapter
22 95523 O-Ring
46 94520 Muffler Assembly
23 01470 Insert
47 94407 1/4" Flow Control
24 95558 Retaining Ring
O
Oil: O
= Air Lube
1
A
Loctite: A
= Loctite #609
1
A
= Loctite #271
2
A
= Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
G
Grease: G
1
18
17
A
8
Left Hand
Threads
Assembly
19
20
21
Right Hand
Threads
22
KEY
Dynafine
= Lubriplate 630 AA
16
14
13
11
A
8
O
15
12
1
T
45 N•m
25
26
24
A
8
28
23
27
32
29
30
31
Parts Page Reorder No. PD02•20T
™
Air Motor and Machine Parts
28 N•m
T
8
0.7 N•m
T
6
G
1
A
T
17 N•m
10
9
7
2
See page 4 for complete 57734 Wet Assembly.
34
35
36
33
37
38
39
40
Effective September, 2002
Supersedes PD97•29
Sander
A
4
2
1
1
5
3
O
1
47
A
8
T
23 N•m
41
42
43
44
45
46
