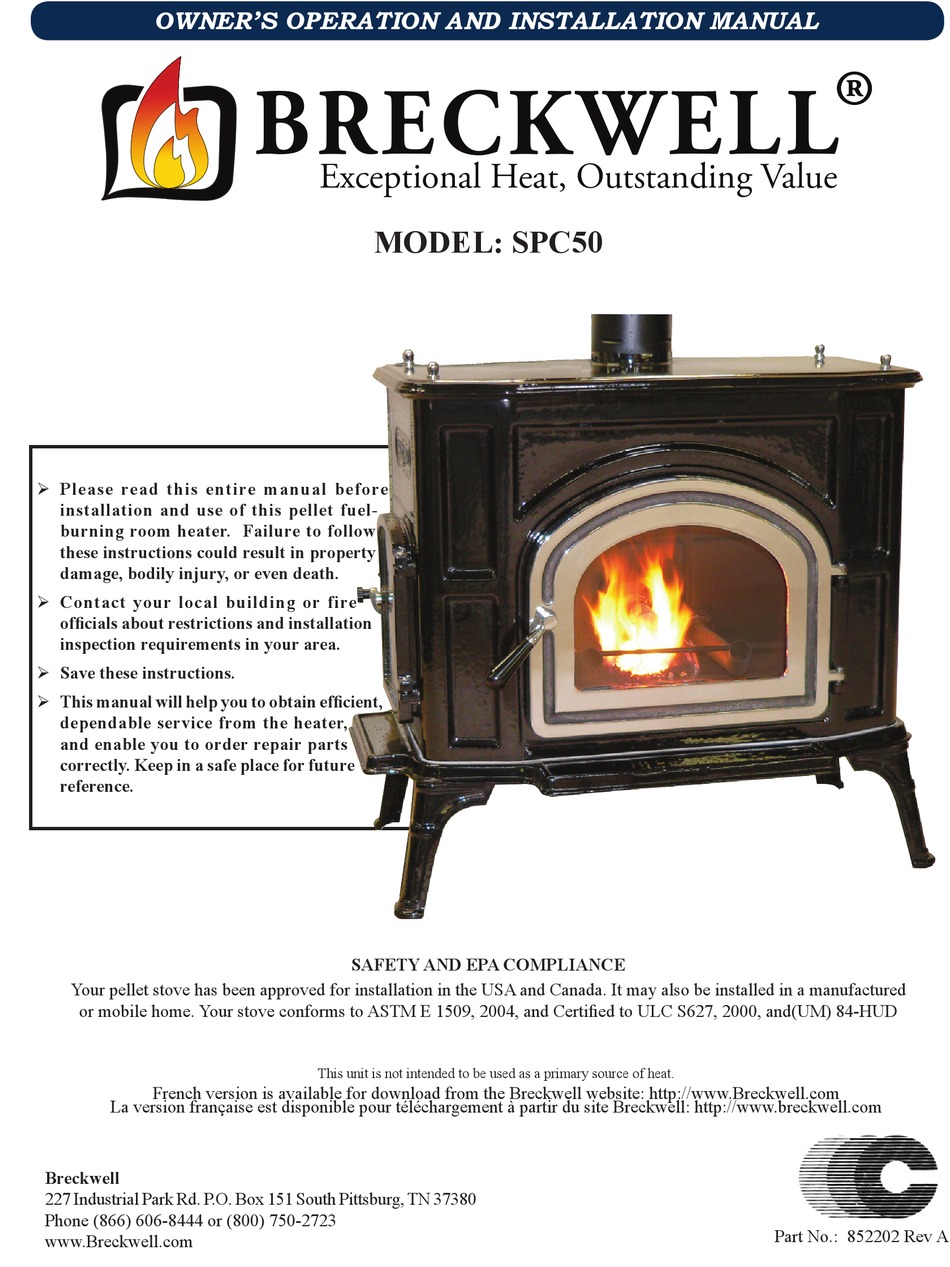

OWNER'S OPERATION AND INSTALLATION MANUAL
Please read this entire manual before
installation and use of this pellet fuel-
burning room heater. Failure to follow
these instructions could result in property
damage, bodily injury, or even death.
Contact your local building or fire
offi cials about restrictions and installation
inspection requirements in your area.
Save these instructions.
This manual will help you to obtain effi cient,
dependable service from the heater,
and enable you to order repair parts
correctly. Keep in a safe place for future
reference.
Your pellet stove has been approved for installation in the USA and Canada. It may also be installed in a manufactured
or mobile home. Your stove conforms to ASTM E 1509, 2004, and Certifi ed to ULC S627, 2000, and(UM) 84-HUD
French version is available for download from the Breckwell website: http://www.Breckwell.com
La version française est disponible pour téléchargement à partir du site Breckwell: http://www.breckwell.com
Breckwell
227 Industrial Park Rd. P.O. Box 151 South Pittsburg, TN 37380
Phone (866) 606-8444 or (800) 750-2723
www.Breckwell.com
BRECKWELL
Exceptional Heat, Outstanding Value

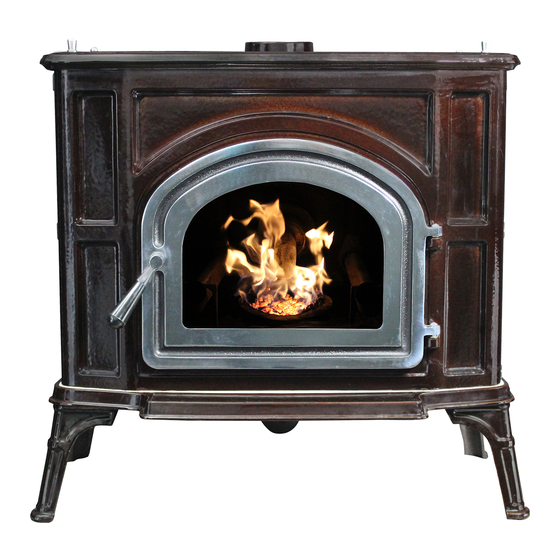

MODEL: SPC50
SAFETY AND EPA COMPLIANCE
This unit is not intended to be used as a primary source of heat.
®
Part No.: 852202 Rev A
Advertisement
Table of Contents
Related Manuals for Breckwell SPC50
Summary of Contents for Breckwell SPC50
- Page 1 This unit is not intended to be used as a primary source of heat. French version is available for download from the Breckwell website: http://www.Breckwell.com La version française est disponible pour téléchargement à partir du site Breckwell: http://www.breckwell.com Breckwell 227 Industrial Park Rd. P.O. Box 151 South Pittsburg, TN 37380 Phone (866) 606-8444 or (800) 750-2723 Part No.: 852202 Rev A...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT: Read this entire manual before installing and Do not touch the hot surfaces of the stove. Educate all children operating this product. Failure to do so may result in property on the dangers of a high-temperature stove. Young children damage, bodily injury, or even death. -
Page 3: Specifications
SPECIFICATIONS CONGRATULATIONS! You’ve purchased a heater from North America’s oldest manufacturer of wood burning products. By heating with wood you’re helping to CONSERVE ENERGY! Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year. Future generations will thank you. HEATING SPECIFICATIONS Fuel Burn Rate* (lowest setting) 1 Lb/Hr... -
Page 4: Installation Options
INSTALLATION INSTALLATION OPTIONS Read this entire manual before you install and use your pellet stove. Failure to follow instructions may result in property damage, bodily injury, or even death! (See specifi c installation details for clearances and other installation requirements) Your pellet stove may be installed to code in either a conventional or mobile home (see SPECIAL MOBILE HOME REQUIREMENTS). -
Page 5: Floor Protection
FLOOR PROTECTION This heater must have a non-combustible fl oor protector (ember protection) installed beneath it, if the fl oor is of combustible material. If a fl oor pad is used, it should be UL listed or equal. The fl oor pad or non-combustible surface should be large enough to cover at least the area under the product and extend beyond the front and each side of the fuel loading and ash removal openings as shown below. -
Page 6: Outside Air Supply
VENTILATION OUTSIDE AIR SUPPLY (Optional, unless installing in a mobile home) Adequate ventilation air is required to operate this heater. During operation, the heater draws air for combustion which can be assisted by the installation of outside combustion air inlets. However, certain weather conditions such as icing or use of kitchen exhaust fans may impact and reduce the effectiveness of vents. -
Page 7: Chimney Connector (Stove Pipe)
CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have a diameter of 4” - 6”. If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft. The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”... -
Page 8: Pellet Vent Termination
PELLET VENT TYPE A UL listed 4-inch or 6-inch type “PL” pellet vent exhaust system may be used for installation and attached to the pipe connector provided on the stove. Connection at stove must be sealed using Hi-Temp RTV. Use 6-inch vent if the vent height is over 12-feet or if the installation is over 2,500 feet above sea level. -
Page 9: Masonry Chimney
MASONRY CHIMNEY : Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 10: Combustible Wall Chimney Connector Pass-Throughs
COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specifi cation for Clay Fire Linings) or its equivalent. -
Page 11: Factory Built Chimney
FACTORY BUILT CHIMNEY : When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and “T” section package, fi restops (where needed), insulation shield, roof fl... -
Page 12: Thermostat Requirements
THERMOSTAT INSTALLATION & OPERATION THERMOSTAT REQUIREMENTS The will accept a non-voltage carrying thermostat. Do not use a thermostat with a transformer THERMOSTAT INSTALLATION 1. Unplug the stove. 2. Remove controller from the stove. 3. Remove the black jumper from J8. 4. -
Page 13: Operation
OPERATION DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE - Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fl uid, or similar liquids to start or “freshen up” a fi re in this stove. Keep all such liquids well away from the stove while it is in use. -
Page 14: Damper Control
NEVER SHUT DOWN THIS UNIT BY UNPLUGGING IT FROM THE POWER SOURCE. PANEL CONTROLS The blowers and automatic fuel supply are controlled from a panel on the side of the SPC50. The control panel functions are a follows. ON/OFF SWITCH (“POWER” BUTTON) •... -
Page 15: Maintenance
MAINTENANCE Failure to clean and maintain this unit as indicated can result in poor performance and safety hazards. Unplug your stove’s electrical cord prior to removing the back panel or opening the exhaust system for any inspection, cleaning, or maintenance work. - Page 16 MAINTENANCE BLOWER MOTORS Clean the air holes on the motors of the blowers annually. PAINTED SURFACES Painted surfaces may be wiped down with a damp cloth. If scratches appear or you wish to renew your paint, contact your authorized dealer to obtain suitable high-temperature paint. GLASS - CLEANING, REMOVAL, AND REPLACEMENT OF BROKEN DOOR GLASS Cleaning - We recommend using a high quality glass cleaner.
-
Page 17: Troubleshooting Guide
TROUBLE SHOOTING GUIDE When your stove acts out of the ordinary, the fi rst reaction is to call for help. This guide may save time and money by enabling you to solve simple problems yourself. Problems encountered are often the result of only fi ve factors: 1) poor fuel; 2) poor operation or maintenance;... -
Page 18: Control Operation
TROUBLE SHOOTING GUIDE Fuel Feed Problems Lack Of Fuel In Burnpot To Much Fuel In Burnpot Possible Causes: Possible Remedies: (Unplug Stove First When Possible) FUEL The hopper is out of pellets. Refi ll the hopper. The hopper safety switch has failed or hopper is open. When operating the unit, be sure the hopper lid is closed so that the hopper safety switch will activate. - Page 19 TROUBLE SHOOTING GUIDE WIRING & CONTROLS Loose wire or connector. Check all wires and connectors that connector to the auger motor, high limit switch, and the molex connector. Bad control board. If the fuse is good, the wires and connectors check out good, and the high limit switch did not trip, test for power going to the auger motor.
-
Page 20: Exhaust / Ventilation
TROUBLE SHOOTING GUIDE Air Supply / Ventilation Problems Glass “Soot’s” Up At A Very Fast Rate, Flame Is Lazy, Dark, And Has Black Tips , After Stove Has Been On For A While, The Burnpot Overfi lls Possible Causes: Possible Remedies: (Unplug Stove First When Possible) EXHAUST / VENTILATION... - Page 21 TROUBLE SHOOTING GUIDE BLOWER The gasket on the blower has gone bad. Inspect both gaskets on the combustion blower to make sure they are in good shape. Replace if damaged. The blower is overheating and tripping the internal temperature Clean any dust off of the windings and fan blades. If cleaning shutoff.
-
Page 22: Parts List
PARTS LIST IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. Part No. Description Qty. 892300 Main Stove Body (Specify Color) 40599 Legs (Specify Color) 892301... -
Page 23: Wiring Diagram
WIRING DIAGRAM... - Page 24 NOTES...
- Page 25 NOTES...
-
Page 26: How To Order Repair Parts
When ordering repair parts, always give the following information as shown in this list: 1. The part number 2. The part description 3. The model number: ________________________________________ 4. The serial number: _________________________________________ BRECKWELL ® Exceptional Heat, Outstanding Value Breckwell 227 Industrial Park Rd. P.O. Box 151 South Pittsburg, TN 37380 Phone (866) 606-8444 www.Breckwell.com... - Page 27 You may use an envelope if you choose. You may register online by going to www.Breckwell.com All information submitted will be kept strictly confidential. Information provided will not be sold for advertising purposes.
