This manual is subject to change without
notice.
ALL
PICTURES
SHOWN
ILLUSTRATIVE PURPOSES ONLY. ACTUAL
PRODUCT MAY VARY DUE TO PRODUCT
ENHANCEMENT.
•
SAVE THESE INSTRUCTIONS. THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER,
AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
•
CAUTION! Please read this entire manual before you install or use your new room heater. Failure to follow instructions may result
in property damage, bodily injury, or even death. Improper Installation Could Void Your Warranty!
•
SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For your safety, follow the installation instructions.
Never use make-shift compromises during the installation of this heater. Contact local building or fire officials about permits,
restrictions and installation requirements in your area.
This appliance is Certified for installation in the USA and Canada. Tested per UL 1482-2011 (R2015) and ULC-S627-00 (R2016). This
appliance may be installed in a mobile home U.S ONLY. Refer to markings on the appliance for additional information.
Model SP2047
ARE
FOR
This unit is not intended to be used as a primary source of heat.
Ce produit peut vous exposer à des agents chimiques, y compris au monoxyde de
carbone, lesquels sont reconnus dans l'État de la Californie comme causant le cancer et
des malformations congénitales ou autres dommages au fœtus. Pour obtenir plus de
renseignements, veuillez consulter le site www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov
227 Industrial Park Rd. • South Pittsburg, TN 37380 •
Phone: 800-750-2723 • Web: www.breckwell.com
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emissions standards.
Report Number: F19-465
R
853357C-3002J
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Breckwell SP2047
Summary of Contents for Breckwell SP2047
- Page 1 State of California to cause cancer, birth defects and/or other reproductive harm. For more information, go to www.P65warnings.ca.gov Report Number: F19-465 227 Industrial Park Rd. • South Pittsburg, TN 37380 • Phone: 800-750-2723 • Web: www.breckwell.com 853357C-3002J...
-
Page 2: Fuel Considerations

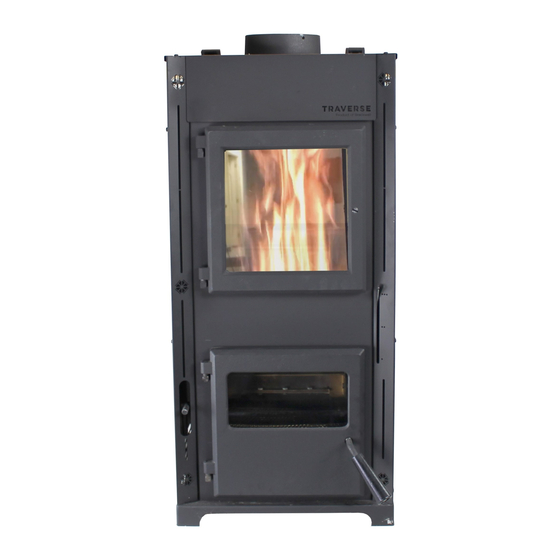

Hot While In Operation. Keep Children, Clothing And manual describes the installation and operation of the Breckwell, Furniture Away. Contact May Cause Skin Burns. SP2047 pellet fired heater. This heater meets the 2020 U.S. Environmental Protection Agency’s wood pellet fuel emission •... -
Page 3: Mobile Home Installations
• Do not connect the vent to a vent serving any other appliance • Never block free airflow through the open vents of the unit. or stove. • Keep foreign objects out of the fuel chamber. • Do not install a flue damper in the exhaust venting system of •... -
Page 4: Clearances To Combustibles
FLOOR PROTECTION (EMBER PROTECTION) It is very important to position the pellet stove as close as possible to the chimney, and in an area that will favor the most efficient This heater must have a non-combustible floor protector (ember heat distribution possible throughout the house. The stove must protection) installed beneath it if the floor is of combustible therefore be installed in the room where the most time is spent, and material. -
Page 5: Chimney Connector (Stove Pipe)
All joints must be sealed inside and out. The exterior section of the chimney should be double or triple If experiencing excessive draft and/or fuel consumption with the wall. Breckwell Traverse, the use of a barometric draft regulator is... -
Page 6: Factory Built Chimney
FACTORY BUILT CHIMNEY MASONRY CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s Ensure that a masonry chimney meets the minimum standards installation instructions must be followed. You must also purchase of the National Fire Protection Association (NFPA) by having it (from the same manufacturer) and install the ceiling support inspected by a professional. -
Page 7: Combustible Wall Chimney Connector Pass- Throughs
COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS- a wall pass-through. There shall be a minimum 6” (153 mm) separation area containing fiberglass insulation, from the outer THROUGHS surface of the wall thimble to wall combustibles. Support the wall Method A. 12” (305 mm) Clearance to Combustible Wall Member: thimble, and cover its opening with a 24-gauge minimum sheet Using a minimum thickness 3.5”... -
Page 8: Outside Combustion Air
OUTSIDE COMBUSTION AIR Opening a window slightly on a calm (windless) day alleviates any of the above symptoms. The house is equipped with a well-sealed vapor barrier and tight fitting windows and/or has any powered devices that exhaust house air. There is excessive condensation on windows in the winter. - Page 9 The first few fires in your new appliance need to be small so as to pellets that have fallen through the burn grate into the basket cure the fresh paint and preserve it’s quality. To do so, first follow the they must to be removed before igniting the unit.
-
Page 10: Maintenance
VISIBLE SMOKE • Always check for creosote deposit in your chimney once every two months and have your chimney cleaned at least once a year. The amount of visible smoke being produced can be an effective If a chimney or creosote fire occurs, close all dampers immediately. method of determining how efficiently the combustion process Wait for the fire to go out and the heater to cool, then inspect the is taking place at the given settings. -
Page 11: Off Season Maintenance
ASH DISPOSAL/ ASH PAN AREA and change the gaskets (which makes your stove air tight) once a year, in order to ensure good control over the combustion, maximum Ashes should be removed daily or if they are within approximately an efficiency and security. -
Page 12: Troubleshooting
TROUBLE SHOOTING Problem: Possible Causes: Poor or lack of adequate draft. Air leaks in the upper burn chamber Too large of gap in upper chamber air wash (should be 0.08”) Extinguished Flame On Low Burn Air leaks between the upper and lower burn chambers Partially blocked primary burn grate Partially blocked secondary air ports Block in primary air... -
Page 13: Replacement Parts
REPLACEMENT PARTS... - Page 14 REPLACEMENT PARTS Part # Description 28969 Holder 40292A 6” Flue Collar 83529 Hairpin 88042 1/4” Rope Gasket 28647 Ignition Flap 610945 Top Filler With Screen 28641 Burn Grate 28689 Cabinet Top 610906 Secondary Baffle Weldment 83968 Offset Hinge 28759 Air Slide 891125 Hopper Lid Latch 28687...
- Page 15 REPLACEMENT PARTS Part # Description 83242 1/4-20 X 1/4 Allen Set Screw 893061 Allen Handle 893062 Roller Sleeve 83788 Socket Head Screw 891372 Pad, Door Hinge (Threaded) 40865 Viewing Door 88227 1/2” Overbraid Rope Gasket 4.3 ft 892965 Viewing Glass 28965 Air Wash Spacer 28721...
- Page 16 NOTES...
- Page 17 NOTES...
-
Page 18: Service Record
SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider: Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. - Page 19 1. Le numéro de pièce ___________________________________________________________ 2. La description de la pièce ______________________________________________________ 3. Le numéro de modèle _________________________________________________________ 4. Le numéro de série ____________________________________________________________ 227 Industrial Park Rd. • South Pittsburg, TN 37380 • Phone: 800-750-2723 • Web: www.breckwell.com...
