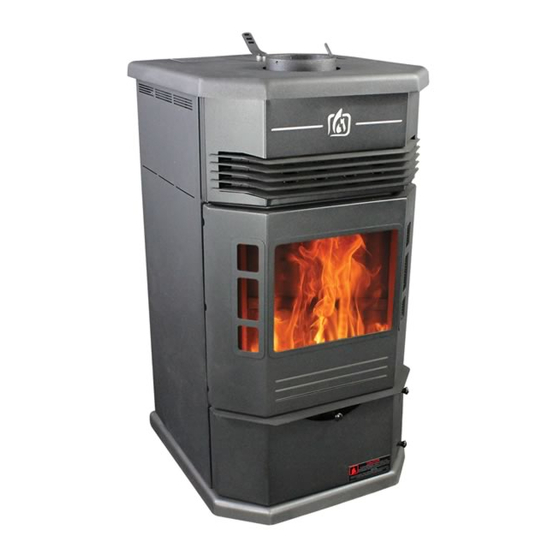

Owner's Operation and Instruction Manual
MODEL:
SPG9000
PATENT PENDING
CAUTION!
Please read this entire manual before you
install or use your new room heater.
to follow instructions may result in property
damage, bodily injury, or even death.
Improper Installation Could Void
Your Warranty!
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO
ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
BRECKWELL
Exceptional Heat, Outstanding Value
Failure
SAVE THESE INSTRUCTIONS
Breckwell Hearth Products
P.O. Box 750
Bridgeport, AL 35740
This appliance is Certified for instal-
lation in the USA and Canada.
Tested per UL 1482-2010, and
This appliance may be installed in a
manufactured or mobile home.
Refer to markings on the appliance
SAFETY NOTICE:
If this heater is not properly installed, a house fire
may result. For your safety, follow the installation
instructions. Never use make-shift compromises
during the installation of this heater. Contact local
building or fire officials about permits, restric-
tions and installation requirements in your area.
®
ULC-S627-2000.
for additional information.
852016 rev A
Advertisement
Table of Contents
Related Manuals for Breckwell SPG9000
Summary of Contents for Breckwell SPG9000
- Page 1 SAVE THESE INSTRUCTIONS THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE. Breckwell Hearth Products P.O. Box 750 Bridgeport, AL 35740...
- Page 2 • DO NOT BURN GARBAGE, FLAMMABLE FLUID SUCH AS GASOLINE, NAPHTHA OR MOTOR OIL. • DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK OR SYSTEM. • ALWAYS CLOSE THE DOOR AFTER THE IGNITION. NEVER OPERATE HEATER WITH DOOR LEFT OPEN (AJAR). Breckwell...
- Page 3 Apply a stamp and mail to the address provided. You may use an envelope if you choose. You may register online by going to Breckwell.com All information submitted will be kept strictly confidential. Information provided will not be sold for advertising purposes.
-
Page 4: P.o. Box
Ê É Fold Here Fold Here Fold Here PLACE STAMP HERE Breckwell Hearth Products P.O. Box 750 Bridgeport, AL 35740 Breckwell... - Page 5 Do not install a flue damper in the exhaust venting down-draft conditions. system of this unit. • Check CO device for false alarm. Your stove requires periodic maintenance and cleaning (see ”MAINTENANCE ”). Failure to maintain your stove may lead to improper and/or unsafe operation. Breckwell...
-
Page 6: Tools And Materials Needed For Installation
FLOOR PROTECTOR REAR The minimum sized floor protector for this stove is 26- 1/2” x 33” [673mm x 838mm] . Consult local building codes and fire protection ordinances. Front Sides Rear 6” 2” 2” (152mm) (51mm) (51mm) FRONT Breckwell... -
Page 7: Installation
The appliance must not be hooked up to a hot air distribution system since an excessive accumulation of heat may occur. This appliance must never be installed in a hallway or near a staircase, since it may block the way in case of fire or fail to respect required clearances. Breckwell... -
Page 8: Clearances To Combustibles
Single Wall Pipe [Double Wall Pipe] Model 20 [4] 22 [13] 33.5 [17.5] 30.5 [21.5] 8 [8] 25 [25] SPG9000 (508mm[102mm]) (559mm[330mm]) (851mm[445mm]) (775mm[546mm]) (203mm[203mm]) (635mm[635mm]) • Floor to ceiling height must be at least 7’ (2.13m) in all cases. -
Page 9: Chimney Connector (Stove Pipe)
Installation of a “barometric draft stabilizer” (fireplace register) on a smoke exhaust system is prohibited. Furthermore, installation of a draft damper is not recommended. Indeed, with a controlled combustion wood stove, the draft is regulated upon intake of the combustion air in the stove and not at the exhaust. Appliance Breckwell... - Page 10 5. The draft caused by the tendency for hot air to rise will be increased with an interior chimney. 6. Using a fire screen at the extremity of the chimney requires regular inspection in order to insure that it is not obstructed thus blocking the draft, and it should be cleaned when used regularly. Breckwell...
-
Page 11: Factory Built Chimney
The chimney must be the required height above the roof or other obstructions for safety and proper draft operation. Never substitute alternative materials for any of the manufac- turer’s specified components or complete the install without using all of the required components. Breckwell... -
Page 12: Masonry Chimney
(NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. When connecting the stove through a combustible wall to a masonry chim- ney, special methods are needed. Breckwell... - Page 13 2. A chimney connector shall not pass through an attic or roof space, closet or similar concealed space, or a floor, or ceiling. Breckwell...
-
Page 14: Outside Combustion Air
Real operating conditions may give very different results than those obtained during testing according to the overall quality of pellets used, the average size of the pellets, the length of the chimney, altitude and outside air temperature. Breckwell... - Page 15 (E): Ash Pan Access. Remove both knobs to access and empty ash pan. Never open the ash pan during operation; only clean the ashes out of the appliance when the appliance is not burning and is determined to be cool. (F): Agitator. Push/Pull knob to agitate fuel to remove ashes or build-up from the burnpot. Breckwell...
-
Page 16: The First Fires
1/4” (6.3mm) any reason. Doing so could result in Medium - Low 3/4” to 1” (19mm to 25.4mm) heater damage and will void your war- Medium - High 1” to 1-1/2” (25.4mm to 38mm) ranty. High approx. 2-11/16” (68mm) Breckwell... - Page 17 If a chimney or creosote fire occurs, close all dampers immediately. Wait for the fire to go out and the heater to cool, then inspect the chimney for damage. If no damage results, perform a chimney cleaning to ensure there is no more creosote deposits remaining in the chimney. Breckwell...
-
Page 18: Maintenance
Surface to cleaning procedures recommended and should be done as needed or once weekly depending on firing be cleaned conditions. Removing the burnpot will aid in a easier cleaning method. Breckwell... -
Page 19: Off Season Maintenance
(Windex) and a rag, allowing it to dry, then touch-up any spots with high temperature paint sold by your local dealer. Spraying the inside of the firebox with a rust inhibitor instead of paint, can also help. Breckwell... - Page 20 WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMA- TION AS SHOWN IN THIS LIST: 1. THE PART NUMBER 2. THE PART DESCRIPTION 3. THE MODEL NUMBER: _______________________ 4. THE SERIAL NUMBER: _______________________ BRECKWELL HEARTH PRODUCTS P.O. BOX 750 BRIDGEPORT, AL 35740 (866) 606-8444 BRECKWELL.COM Breckwell...
