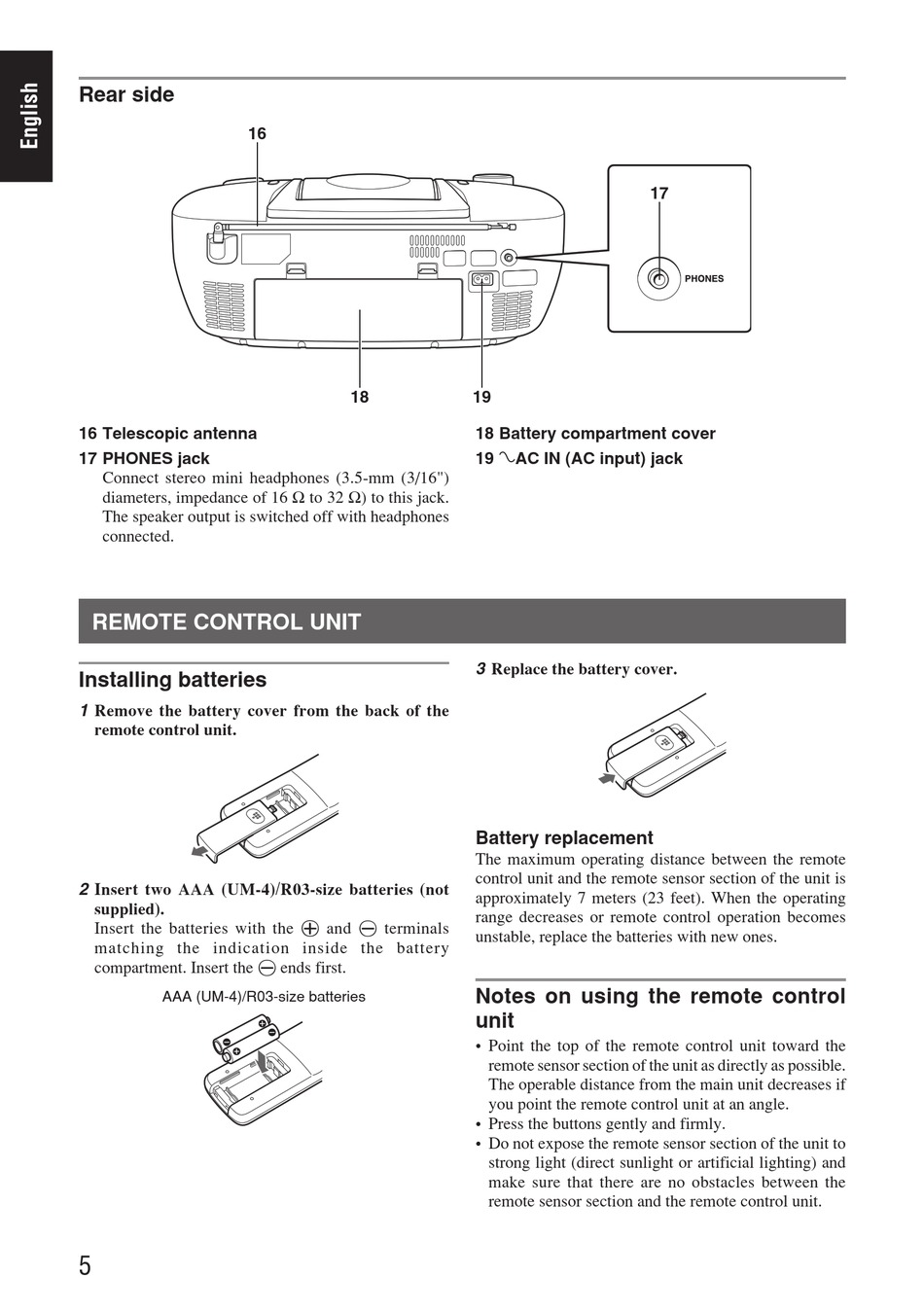

Rear side
16
16 Telescopic antenna
17 PHONES jack
Connect stereo mini headphones (3.5-mm (3/16")
diameters, impedance of 16 Ω to 32 Ω) to this jack.
The speaker output is switched off with headphones
connected.

REMOTE CONTROL UNIT

Installing batteries
1 Remove the battery cover from the back of the
remote control unit.
2 Insert two AAA (UM-4)/R03-size batteries (not
supplied).
Insert the batteries with the ª and · terminals
matching the indication inside the battery
compartment. Insert the · ends first.
AAA (UM-4)/R03-size batteries
5
18 19
18 Battery compartment cover
19 ÓAC IN (AC input) jack
3 Replace the battery cover.
Battery replacement
The maximum operating distance between the remote
control unit and the remote sensor section of the unit is
approximately 7 meters (23 feet). When the operating
range decreases or remote control operation becomes
unstable, replace the batteries with new ones.
Notes on using the remote control
unit
• Point the top of the remote control unit toward the
remote sensor section of the unit as directly as possible.
The operable distance from the main unit decreases if
you point the remote control unit at an angle.
• Press the buttons gently and firmly.
• Do not expose the remote sensor section of the unit to
strong light (direct sunlight or artificial lighting) and
make sure that there are no obstacles between the
remote sensor section and the remote control unit.
17
