CHAPTER 7 • LANES & STOP BARS
69

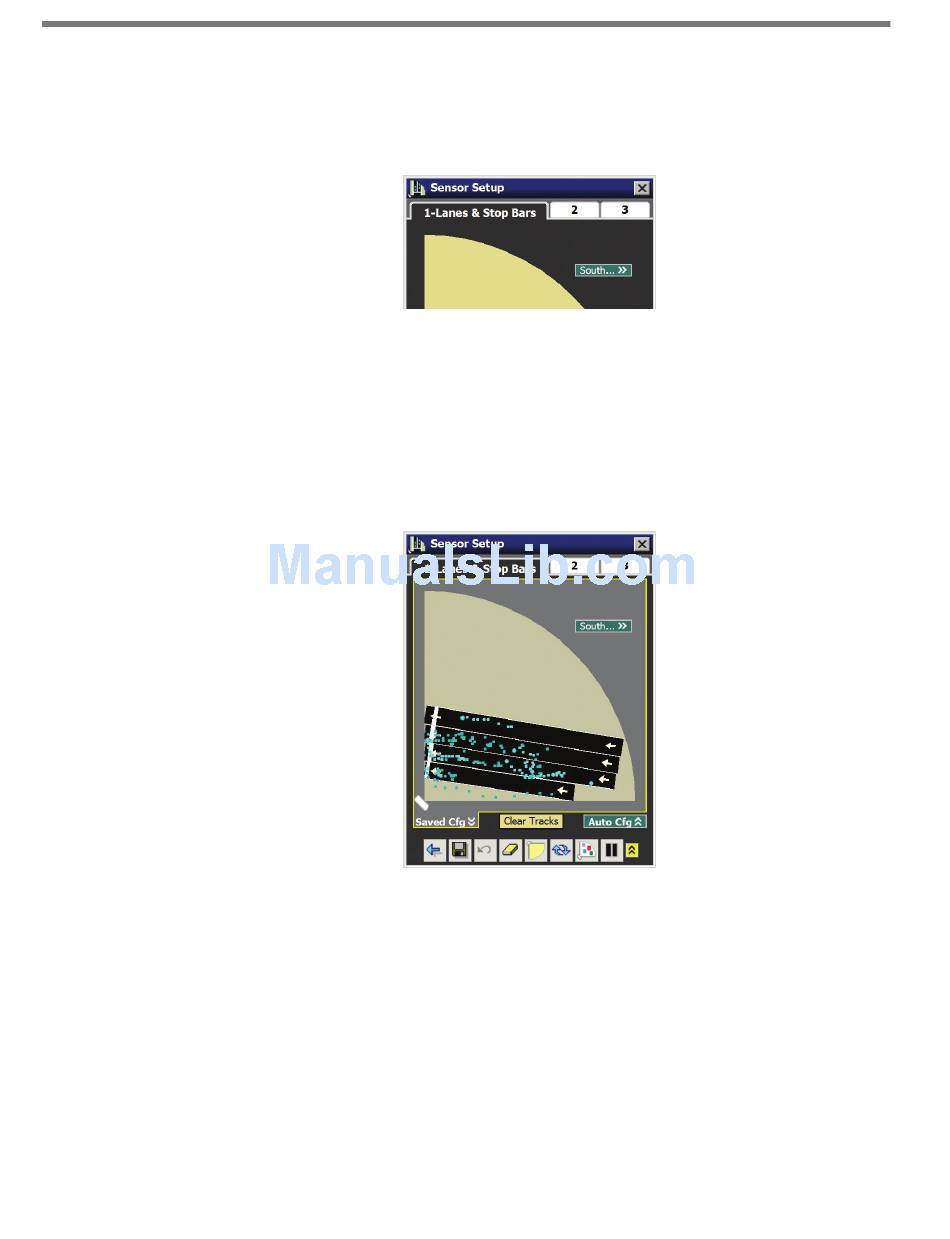

The Edit Area also contains the approach name in a small window outside of the sensor's
view (see Figure 7.3) If needed, click on the name box to see the entire approach name. This
allows you to always know which approach is being configured. The approach name can be
edited in the Sensor Settings window.
Figure 7.3 – Approach Name
Saved Configuration Overlay
The Saved Configuration overlay shows everything that has been saved to the sensor (see
Figure 7.4). The purpose of this feature is to compare what is currently saved to the sensor
with the changes you are making in the edit area. To show or hide this overlay, click the
Saved Cfg button.
Figure 7.4 – Saved Configuration Overlay
Automatic Configuration Overlay
The Automatic Configuration overlay shows lanes and stop bars that have been automati-
cally discovered (see Figure 7.5). To show or hide this overlay, click the Auto Cfg button.
