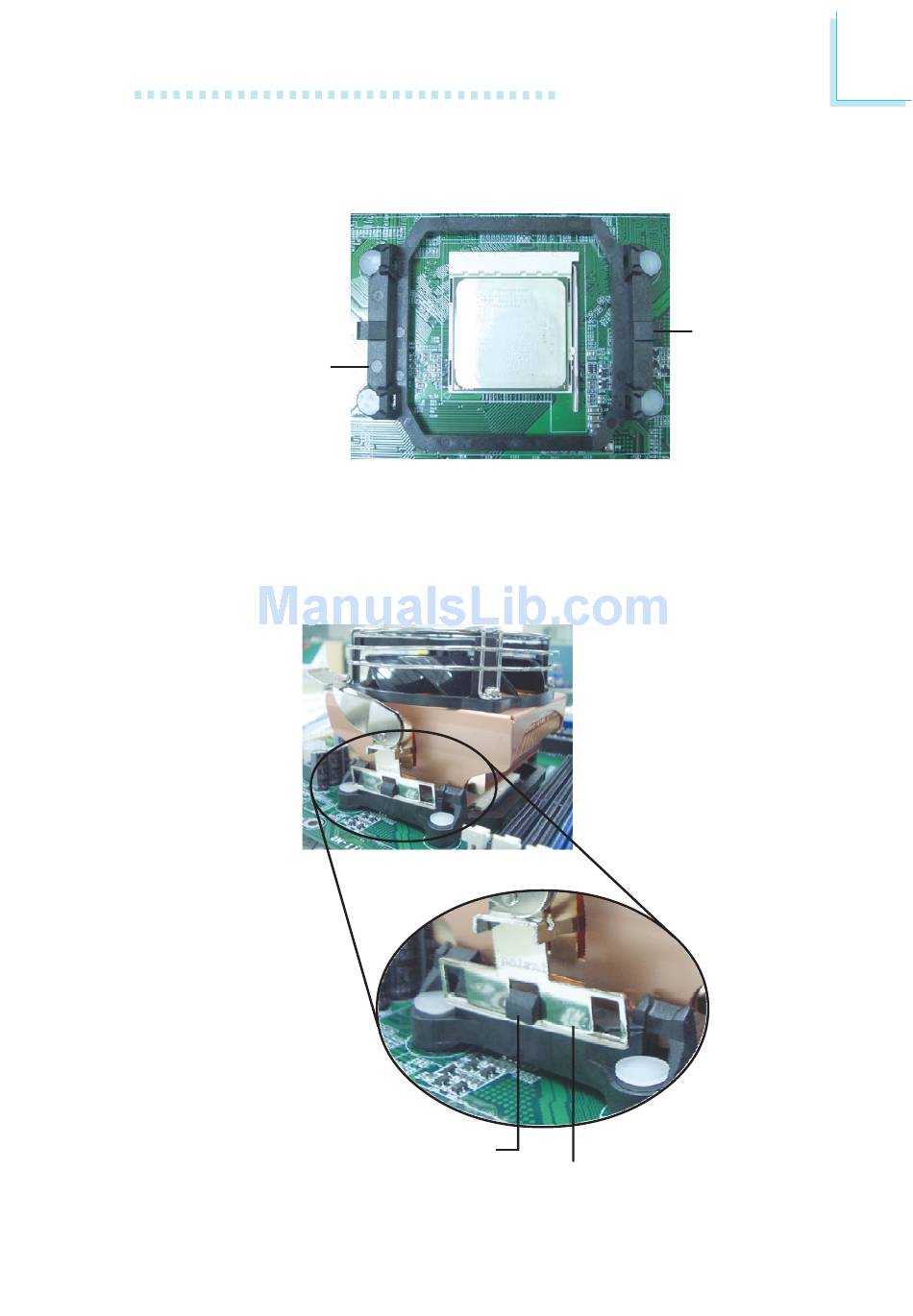

2. The system board comes with the retention module base already

installed.

Retention

module base

3. Place the heat sink on top of the CPU. Now hook one side of

the retention clip onto the retention module base by fitting the

hole(s) on the retention clip into the retaining tab(s) of the reten-

tion module base.

Retaining tab

Retention clip

Hardware Installation

Retaining

tab
