RC8025B-ADT Wireless Day/Night Camera Installation Guide

Rear Panel

1. Power Port
IMPORTANT
2. Ethernet Port
IMPORTANT
4

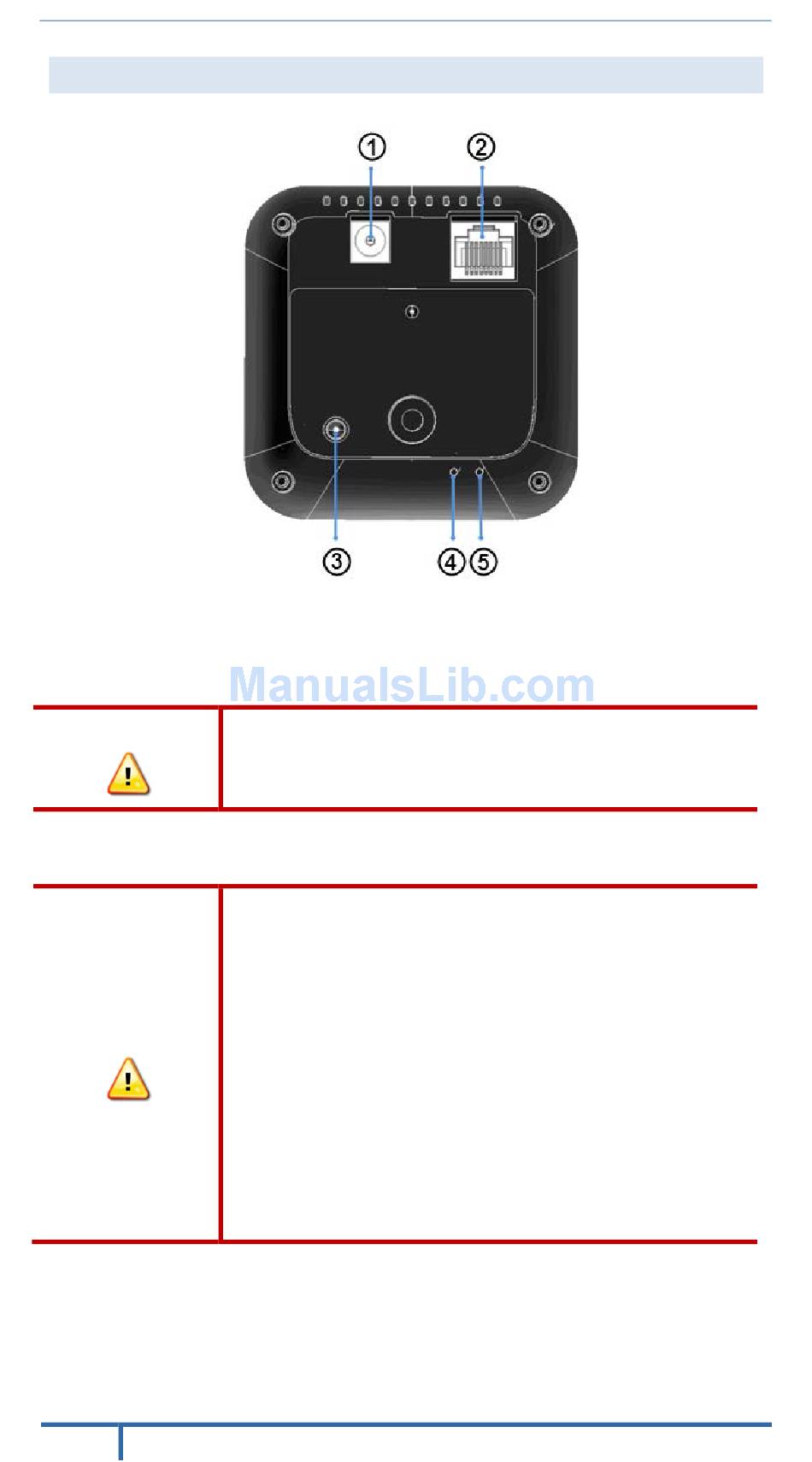

Figure 2: Rear Panel
This port is used to provide 12V to the wireless camera
from the supplied power adapter.
DO NOT USE ANY POWER ADAPTER OTHER THAN
THE ONE SPECIFIED FOR THIS CAMERA. DOING SO
MAY DAMAGE THE WIRELESS CAMERA.
The Ethernet port enables connectivity of the wireless
camera to your ADT Pulse gateway.
•
PLUGGING IN THE ETHERNET CABLE WILL
DISABLE THE WIRELESS INTERFACE. (ONLY ONE
INTERFACE CAN BE ACTIVE AT ANY TIME.)
•
THE ETHERNET CABLE SHOULD ONLY BE
CONNECTED OR DISCONNECTED WHEN THE
DIGITAL CAMERA IS POWERED OFF. ATTACHING
OR DETACHING THE ETHERNET CABLE WHILE
THE CAMERA IS POWERED ON DOES NOT
SWITCH THE INTERFACE BETWEEN WIRED AND
WIRELESS.
•
DETACHING THE ETHERNET CABLE WHEN THE
OUTDOOR DIGITAL CAMERA IS POWERED ON
WILL DISCONNECT THE OUTDOOR DIGITAL
CAMERA FROM THE NETWORK.
