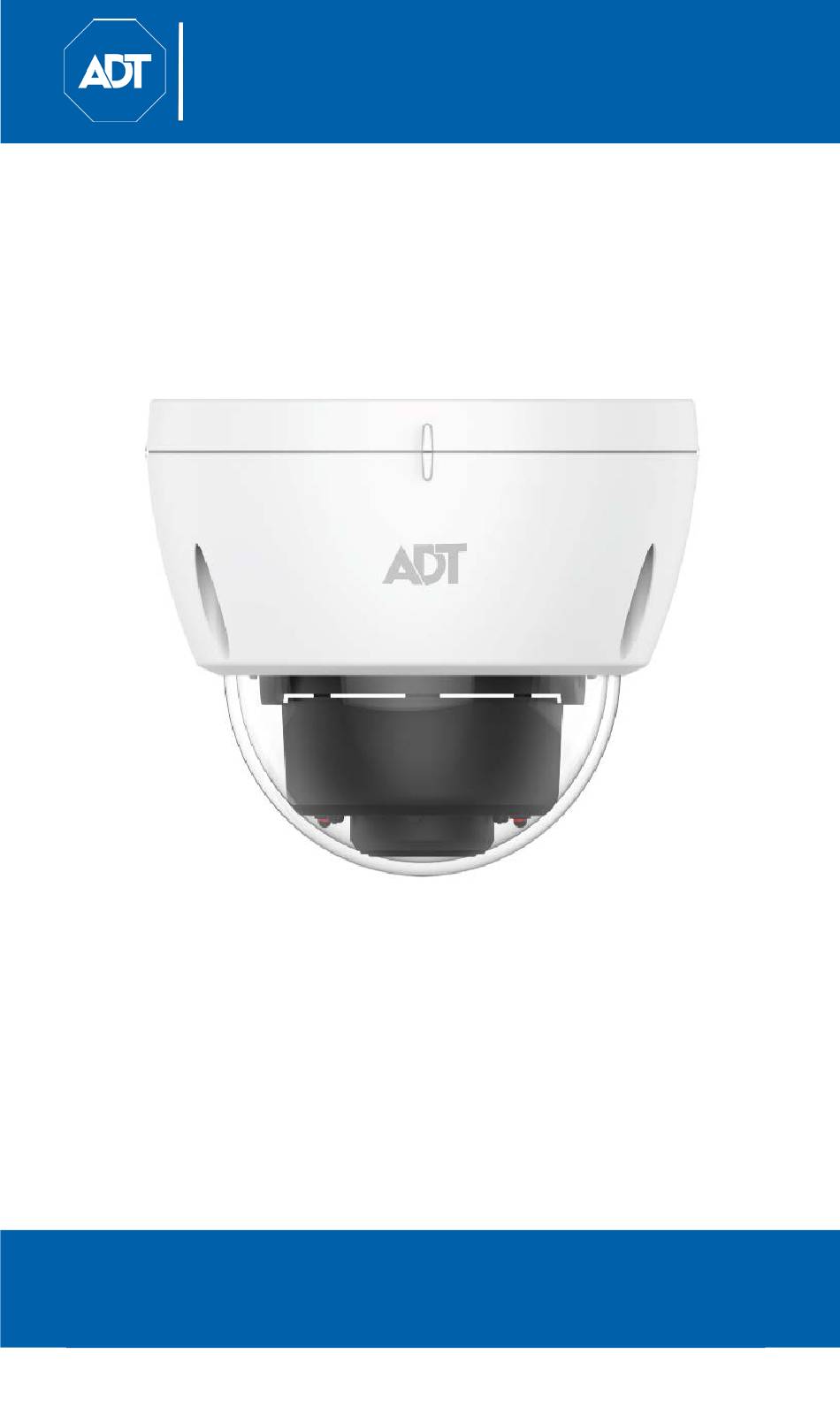

- Page 1 ADT Interactive Solutions: Control & Pulse MDC845 FHD Wi-Fi Mini Dome Camera FCC ID:P27MDC845 IC: 527A-MDC845 Quick Installation Guide...
-
Page 2: Table Of Contents
1.800.ADT.ASAP and the product/service names listed in this document are marks and/or registered marks. Unauthorized use is strictly prohibited. MDC845 (11/19) Property of ADT, LLC. Information accurate as of published date and is provided “as is” without warranty of any kind. -
Page 3: Introduction
This section provides information about the MDC845 FHD Wi-Fi Mini Dome Camera's features, components and capabilities. 1.1 Feature Overview The MDC845 is a Wi-Fi Mini Dome Camera with FHD resolution and 802.11ac Wi- Fi connectivity intended for use with both ADT Control and Pulse ®... - Page 4 Note: The Ethernet cable should be connected or disconnected only when the camera is powered off. Attaching or detaching the Ethernet cable while the camera is powered on does NOT switch the interface between wired and wireless. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
-
Page 5: Packaging Contents
1.3 Packaging Contents 2 Basic Setup This section provides information on how to assemble and configure the MDC845 FHD Wi-Fi Mini Dome Camera for enrollment. 2.1 Assembling the Camera • Use the L tool to remove the three retaining screws and bubble... -
Page 6: Power Up
ADT MDC845 FHD Wi-Fi Mini Dome Camera Quick Installation Guide • While the MDC845 is water resistant, it is must to limit direct exposure to rain. • Install the MDC845 under a building overhang to ensure the least amount of exposure to the elements. -
Page 7: Final Steps
LAN port of the camera cable to either the device LAN port on the Pulse Gateway or directly to the customer’s router for Control. - If you are using a wireless connection to the MDC845, this step is performed during enrollment. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide... - Page 8 - The process for enrolling the camera on Pulse is described in “Section 4: ADT Pulse Enrollment”. • Mounting the camera - Mount the camera in its final permanent location. For details about using the mounting bracket, see “Section 5: Ceiling Mounting”. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
-
Page 9: Adt Control Enrollment
3 ADT Control Enrollment This section provides examples of two different methods for enrolling the MDC845 FHD Wi-Fi Mini Dome Camera onto the ADT Control platform. The first method uses a wired connection while the second method uses the Soft AP to wirelessly connect the FHD camera to the customer’s network. -
Page 10: Using Soft Ap To Enroll Camera
Note: Control cameras connect to the customer’s Wi-Fi network to access the Internet and be added to the Control platform. It is imperative that the customer understand that all camera locations are MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide... - Page 11 • Select Install from the video device list to begin adding the camera. If a laptop or mobile device are not on the customer’s network, enter the MAC address of the camera. • Follow the on-screen instructions to finish adding the camera. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
- Page 12 ADT MDC845 FHD Wi-Fi Mini Dome Camera Quick Installation Guide MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
-
Page 13: Adt Pulse Enrollment
4 ADT Pulse Enrollment This section provides examples of two different methods for enrolling the MDC845 FHD Wi-Fi Mini Dome Camera onto the ADT Pulse network. The first method uses a wired connection while the second method uses the Wi-Fi Protected Setup (WPS) with PIN method to wirelessly enroll the FHD camera to the gateway with the ADT Pulse Portal or TS Installer App. - Page 14 Quick Installation Guide • Locate the camera’s MAC ID on the product label on the rear of the camera. • Enter the camera’s MAC into the MAC ID field and click Continue. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
- Page 15 • The following screen is shown while the camera is configured • When the Camera Details screen appears, showing that the camera has been enrolled, assign the MDC845 a unique name (usually based on the location of the camera) in the Name field, and then click Save.
- Page 16 • You are returned to the Manage Devices screen. The total number of installed cameras has increased by one. • Click Close and Close again to confirm. • Wait until the LED is lit solid green, and then disconnect the camera from power. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
-
Page 17: Using Wps Pin To Enroll Camera
- For TS Installer app, click the Pulse Devices link. The Manage Devices screen appears. • In the Manage Devices screen, click Cameras. • Click the Add Using WPS button located at the bottom of the screen. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide... - Page 18 • Locate the camera’s PIN number on the product label on the rear of the camera. • Enter the camera’s PIN in the WPS PIN field. • Ensure that the camera is powered on and that the LED is flashing green/amber. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
- Page 19 The wireless connection is successful when the LED turns solid green. Note: You must complete the WPS connection within 2 minutes or the process will time out. The time remaining appears in the upper-left portion of the screen. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
- Page 20 • The following screen is shown while the camera is configured • When the Camera Details screen appears, showing that the camera has been enrolled, assign the MDC845 a unique name (usually based on the location of the camera) in the Name field, and then click Save.
- Page 21 • The Pulse enrollment is complete. The newly added device is shown in the Cameras list. • At the top of the screen, click Go Back. • You are returned to the Manage Devices screen. The total number of installed cameras has increased by one. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
- Page 22 • Wait until the LED is lit solid green, and then disconnect the camera from power. • Install the camera in its final location. • Please refer to “Section 5: Ceiling Mounting”. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
-
Page 23: Ceiling Mounting
ADT MDC845 FHD Wi-Fi Mini Dome Camera Quick Installation Guide 5 Ceiling Mounting This section provides details for final mounting of the MDC845 FHD Wi-Fi Mini Dome Camera. You should ensure that the camera is configured and enrolled in the platform before permanently mounting it. - Page 24 Note: Make sure that the LVDS cable does not cover up or become caught on the antenna. Attach the bubble to the camera, and then secure it using the three • screws MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
- Page 25 • Insert the retaining screw through the opening at the top of the power adapter and reinstall it into the receptacle, securing the adapter to the wall. • Verify that the camera is active on the wireless network and is recognized by the platform. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
-
Page 26: Wireless Connectivity Troubleshooting
• If the previous measure fails, press the camera’s reset button for 15 seconds, and then re-enroll the camera into the platform. • If the previous measure fails, install a Wi-Fi Range Extender - EX6100 for Control - WN3000RPH-3ADPAS for Pulse MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide... -
Page 27: Appendix
Humidity: 0% - 85% RH (non-condensing) Ingress IP66 Accessories Accessories Screw Terminal Power Supply (12V / 1.5A, 100 - 240V), Wall mount screw package Ordering Information Part Number MDC845: FHD Wi-Fi Mini Dome Camera MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide... -
Page 28: Regulatory Approvals
20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide... -
Page 29: Industry Canada Statement
Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le radiateur et votre corps. MDC845 FHD Wi-Fi Mini Dome Camera Installation Guide...
