IMPORTANT:
You can only assemble the TWINLOC remote lever in "left side upward position" on
the handlebar.
You have 3 positions of the TWINLOC remote lever.
1. CLIMB MODE:
The shock is nearly locked; climbing on asphalt roads is now possible without any
power loss. Simultaneous a blow-off-system prevents the shock being damaged in
case the rider did not open the system while crossing obstacles.
2. TRACTION MODE/RIDE MODE:
For Traction: by reducing the internal chamber volume inside the shock the travel of
the shock will be reduced to around 80% (approx. 96/80mm) the characteristic of
the air spring gets harder, the SAG is shorter and the geometry steeper. This results
in climbing without "bobbing" and offers still optimum traction of the rear wheel.
For Ride: by adding a platform on the compression damping system the shock will
not bounce while standing on the pedals.
3. DESCENT MODE:
Full travel of 120/100mm (27.5"/29")

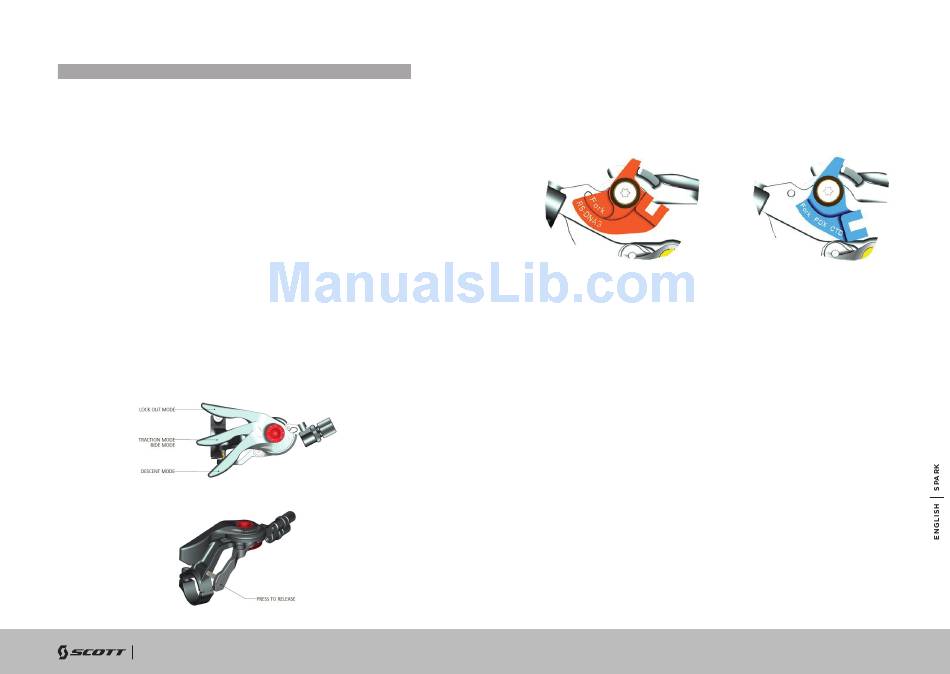

You will find the following positions on the remote lever:
8
BIKE OWNER'S MANUAL
For the assembly of the remote control of the front fork lock-out 2 different cable rolls
which are changeable are existing.
The different roll for the pull of the fork remote cable can be changed within few
minutes to adapt the lever to your fork model/brand.
You will see on the downside of the roll the indication of the fork brand or the fork
model.
Scott offers 2 different TWINLOC levers with following fork/rear shock combinations:
- FOX Nude with different rolls for FOX CTD fork and RockShox DNA 3 fork
(Scott Article number: 230097)
- FOX CTD with different rolls for FOX CTD fork and RockShox DNA 3 fork
(Scott Article number: 230098)
Please kindly note that the cable roll of a RockShox DNA3 or FOX CTD fork-lever is
not interchangeable with the regular rolls of 2 step forks. You need to use another
lever!
For details on this please contact your authorized Scott dealer.
