BASIC SET-UP OF THE TWINLOC REMOTE CON-
TROL OF FOX FLOAT CTD SHOCK:
The assembly of the remote cable and the setup of the FOX Float CTD rear shock is very
similar to the above mentioned assembly and setup of the FOX Nude.
Please follow the details shown in the FOX manuals attached to this bike.

RECOMMENDED TOOLS FOR THE SHOCK SET-UP

When setting up the shock we recommend using a shock pump with a scale up to
20 bars/300 psi with a special air valve connector. This prevents air from escaping when
removing the pump from the shock valve to achieve a more accurate air pressure.
Please note that air will flow into the hose and indicator when counter checking the
air pressure, so you have to set up the recommended pressure again after this action.
Make sure to balance at least this air loss when you make a check of the air pressure
of the shock. Please also note that the indicators of shock pumps have a tolerance of
max. 10%.
2 1 2 1 2 3 2 3
18
BIKE OWNER'S MANUAL
2 3 3 3

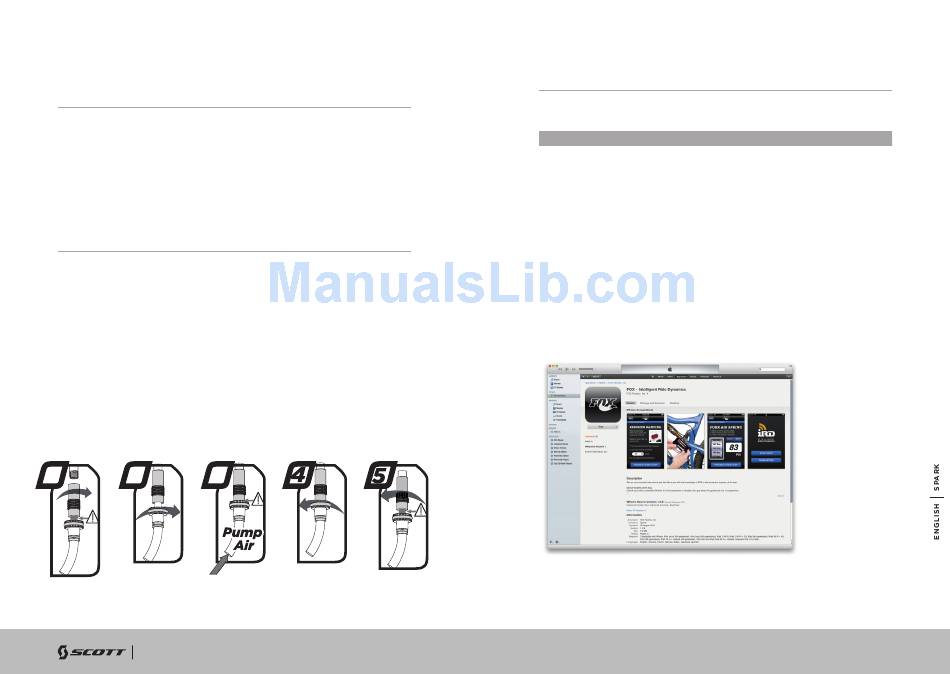

SET-UP SPARK WITH FOX NUDE SHOCK

The Set-Up of the FOX Nude Shock can be easy done within a few minutes.
IMPORTANT:
Important: For all adjustments of the air spring the remote lever has to be in position
"Descent mode"
To adjust the air pressure of the air chamber of the FOX Nude Shock please refer to the
following instruction:
1. remove the valve cap of the valve (S5) located on the shock housing (S3).
2. mount the shock pump with its adaptor on the valve
3. please take into account that it takes some air pressure from inside the shock to
drive the indicator on the pump. Make sure to balance at least this air loss when you
make a check of the air pressure of the shock. Pls also note that the indicators of
shock pumps have a tolerance of max. 10%
4. pump the recommended pressure into the shock. Please use the FOX iRD App
(available at itunes App store with following link: https:/ /itunes.apple.com/us/app/
fox-intelligent-ride-dynamics/id549035102?mt=8&ign-mpt=uo%3D4)
5. After downloading the app on your mobile gear please follow the steps shown in the
app and inflate the shock according to the air pressure indicated.
6. when you reached the needed pressure remove the pump and put the valve cap on
the valve
