SPARK CONCEPT

The new Spark is the result of 2 years of research and development for one of the
lightest mountain bike frame set available on the market, hitting the scale at below
1800 grams (4 lbs) including the frame, FOX Nude shock and the unique TWINLOC
remote control.
SCOTT's focus was not only on lightweight but also on a durable and stiff frame with
an innovative suspension technology in combination with an optimized kinematics of
the rear swingarm.
The combination of an optimized kinematics with an extraordinary suspension
technology closes the gap between superlight hardtail bikes (e.g. SCOTT Scale) and
the new generation of marathon/trail bikes (e.g. SCOTT Genius).
Spark was designed for riders looking for a dual suspended race and marathon bike
offering a maximum rear wheel travel of 120mm (27.5")/100mm (29").
SCOTT does not see frame and rear shock as single components which are assembled
together on a bike, but as a concept with all these components working together and
offering an outrageous function by matching perfectly.
The Spark Concept is based on a multi-pivot technology.
The damping performance was improved in comparison to the already famous
"old" Spark, and with reworking also the kinematics we were able to reach a better
progression in the end of the stroke/travel of the swingarm.
The SCOTT system, named TC (Traction Control) will allow you to reduce by remote
control the rear wheel travel from 120 (27.5")/100 (29")mm to 85 (27.5")/70(29")mm
including a more progressive spring rate but still offering a supple break away.
No power will be lost and an optimum power transfer is guaranteed as the swingarm,
in contrary to locked or automatic-locking systems, can follow the trail surface and will
offer perfect traction and higher speed while standing on the pedals.
4
BIKE OWNER'S MANUAL

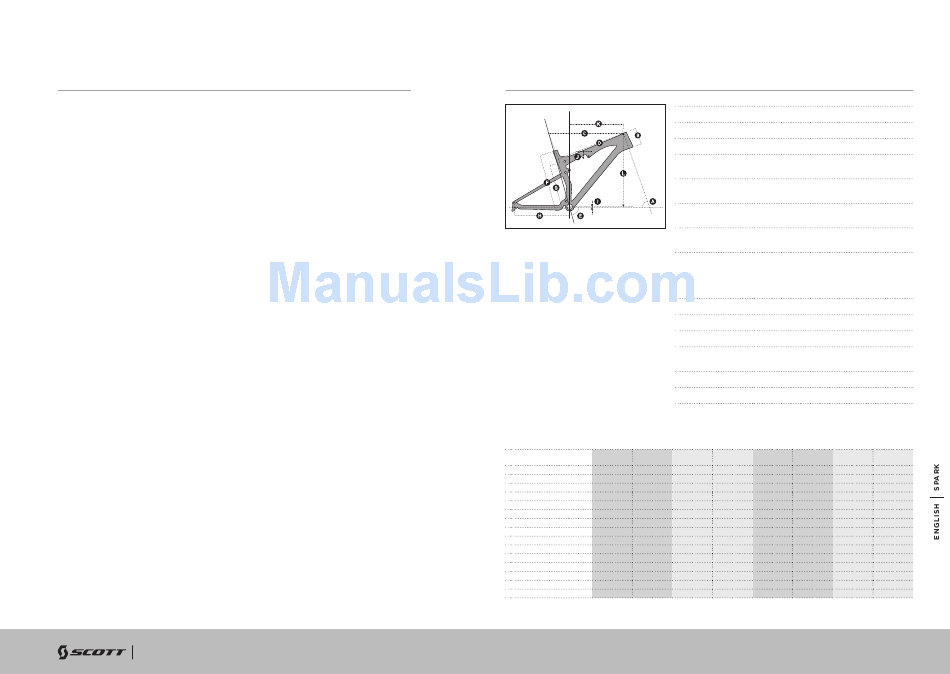

GEOMETRY/TECHNICAL DATA SPARK 27.5"/650B
Travel
Suspension Ratio 2.40
Piston stroke
Shock length
(Eye to Eye)
Hardware
Mainframe
Hardware
Swingarm
Seatpost
diameter
Headset
Fork travel
Fork length
BB housing
Front derailleur
Bearings
Max. tire width
SPARK 27.5"/650B
S S
HIGH BB LOW BB HIGH BB
SettInG SettInG
A HEAD TUBE ANGLE 68.7° 68.0°
B HEADTUBE LENGTH 110mm 4.3in 110mm 4.3in 120mm 4.7in
C TOPTUBE LENGTH HORIZONTAL 553mm 21.8in 555mm 21.9in 589mm 23.2in
D TOPTUBE LENGTH ACTUAL 509mm 20.0in 509mm 20.0in 540mm 21.3in
E SEAT TUBE ANGLE 74.2° 73.5°
F BB CENTER TO TOP OF SEATTUBE 400mm 15.7in 400mm 15.7in 450mm 17 .7in
G BB CENTER TO TOPTUBE CENTER 331mm 13.0in 331mm 13.0in 347mm 13.7in
H CHAINSTA Y LENGTH 420mm 16.5in 420mm 16.5in 420mm 16.5in
I BB OFFSET 2mm 0. 1 in -8mm -0.3in 2mm 0. 1 in
BB HEIGHT 342mm 13.5in 332mm 13. 1 in 342mm 13.5in
J STANDOVER HEIGHT 757mm 29.8in 753mm 29.6in 767mm 30.2in
WHEELBASE 1072mm 42.2in 1073mm 42.2in 1108mm 43.6in
K REACH 397mm 15.6in 391mm 15.4in 429mm 16.9in
L STACK 552mm 21.7in 556mm 21.9in 561mm 22. 1 in
STEM LENGTH 70mm 70mm 80mm
120/85/0mm
50mm
190mm
22,2mm x 8mm
22.2mm x 8mm
31.6mm
semi integr. for tapered 1 1/8-1.5
(44/54.9mm inner diameter
of frame) or with 1 1/8 straight
(44.0mm)
120mm
507mm
BB PF 92 carbon / 73mm alloy
Shimano E-Type / SRAM S3 direct
mount
2 x IGUS, 6 x 6802 (24x15x5)
57mm/2.25"
M M L L XL
LOW BB HIGH BB LOW BB HIGH BB
SettInG SettInG SettInG SettInG SettInG
68.7° 68.0° 68.7° 68.0° 68.7°
120mm 4.7in 140mm 5.5in 140mm 5.5in 160mm 6.3in
590mm 23.2in 618mm 24.3in 620mm 24.4in 648mm 25.5in
540mm 21.3in 570mm 22.4in 570mm 22.4in 602mm 23.7in
74.2° 73.5° 74.2° 73.5° 74.2°
450mm 17 .7in 490mm 19.3in 490mm 19.3in 540mm 21.3in
347mm 13.7in 395mm 15.6in 395mm 15.6in 435mm 17 . 1 in
420mm 16.5in 420mm 16.5in 420mm 16.5in 420mm 16.5in
-8mm -0.3in 2mm 0. 1 in -8mm -0.3in 2mm 0. 1 in
332mm 13. 1 in 342mm 13.5in 332mm 13. 1 in 342mm 13.5in
763mm 30.0in 804mm 31.7in 800mm 31.5in 835mm 32.9in
1109mm 43.7in 1140mm 44.9in 1141mm 44.9in 1172mm 46. 1 in
423mm 16.7in 453mm 17 .8in 448mm 17 .6in 478mm 18.8in
565mm 22.2in 579mm 22.8in 583mm 23.0in 598mm 23.5in
80mm 90mm 90mm 100mm
scott-sports.com
XL
LOW BB
SettInG
68.0°
160mm 6.3in
650mm 25.6in
602mm 23.7in
73.5°
540mm 21.3in
435mm 17 . 1 in
420mm 16.5in
-8mm -0.3in
332mm 13. 1 in
830mm 32.7in
1173mm 46.2in
473mm 18.6in
602mm 23.7in
100mm
