I V . C O M F O R T A D J U S T M E N T S
Elevating Leg Rest (ELR) Foot Plate Length
You can change the ELR foot plate length between
41.91-55.88 cm (16.5-22 in.). This length is measured
from the ELR foot plate to the top of the ELR. See fig-
ure 21.
To change the ELR foot plate length:
1. Loosen the screw on the back of the ELR.
2. Adjust the foot plate to the desired length.
3. Tighten the screw on the back of the ELR.
4. Repeat the procedure for the other leg rest.
Elevating Leg Rest (ELR) Angle
You can change the ELR angle. See figure 21.
To change the ELR angle:
1. To raise, pull the ELR up to the desired position.
2. To lower, pull the ELR release lever and lower the
ELR to the desired position.
Elevating Leg Rest (ELR) Calf Pad
You can change the height and depth of the ELR calf
pad. See figures 22.
To change the ELR calf pad depth:
1. Remove the screw to unfasten the calf pad from the
calf pad bracket.
2. Move the calf pad in or out to the desired position.
3. Replace the screw to refasten the calf pad to the
calf pad bracket.
4. Repeat for the other side.
To change the ELR calf pad height:
1. Rotate the calf pad toward you to disengage the
calf pad from the ELR.
2. Move the calf pad up or down to the desired
position.
3. Rotate the calf pad away from you to secure the
calf pad to the ELR.
4. Repeat for the other side if necessary.
Fusion
SECUREMENT
NUTS
THUMBSCREW

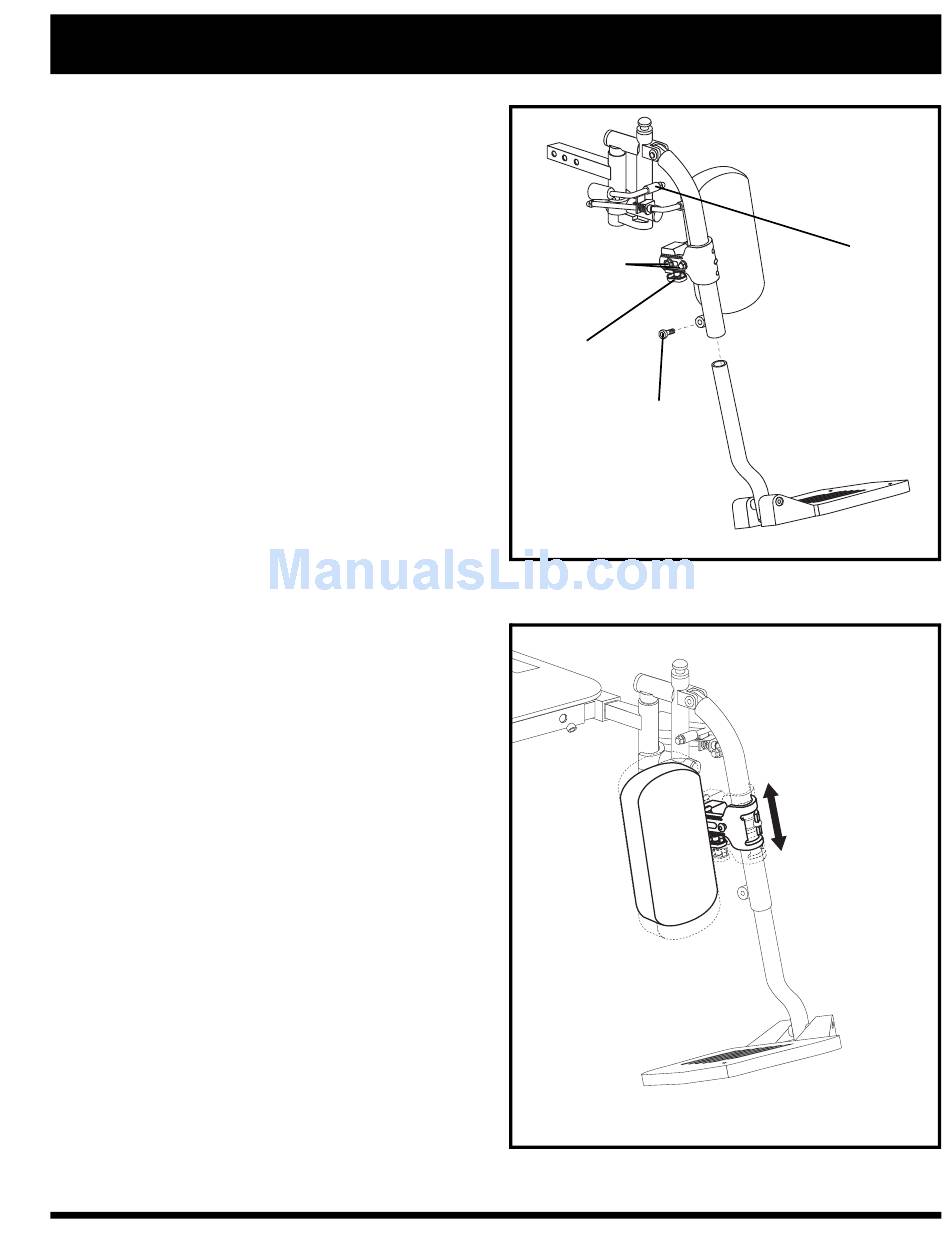

Figure 21. ELR Foot Plate Adjustment
