I V . C O M F O R T A D J U S T M E N T S
Leg Rest Width Adjustment
You can adjust the leg rest width from 40.6 to 45.72 cm (16
to 18 in.).
To adjust the leg rest width:
1. Remove the seat cushion.
2. Loosen the leg rest receiver hardware. See figure 16.
3. Reposition the leg rest receiver to the desired seat
width.
4. Tighten the leg rest receiver hardware.
5. Adjust the width of the other leg rest if necessary.
6. Replace the seat cushion.

Armrest Height Adjustment

The armrest height adjustment range is 5 cm (2 in.).
This range is measured from the seat pan to the top of
the armrest pad.
To remove the armrest assembly:
1. Loosen the armrest lever by pushing the armrest
lever in and rotating the lever simultaneously. See
figure 17.
2. Lift up the armrest assembly.
To install the armrest assembly:
1. Place the armrest assembly into the armrest
receiver. See figure 17.
2. Tighten the armrest latch lever.
To adjust the height:
1. Loosen the armrest latch lever. See figure 17.
2. Remove the armrest. See figure 17.
3. Reposition the adjustment screw to the desired
height.
4. Reinstall the armrest.
5. Tighten the armrest latch lever.
6. Repeat for the other armrest if necessary.
Fusion

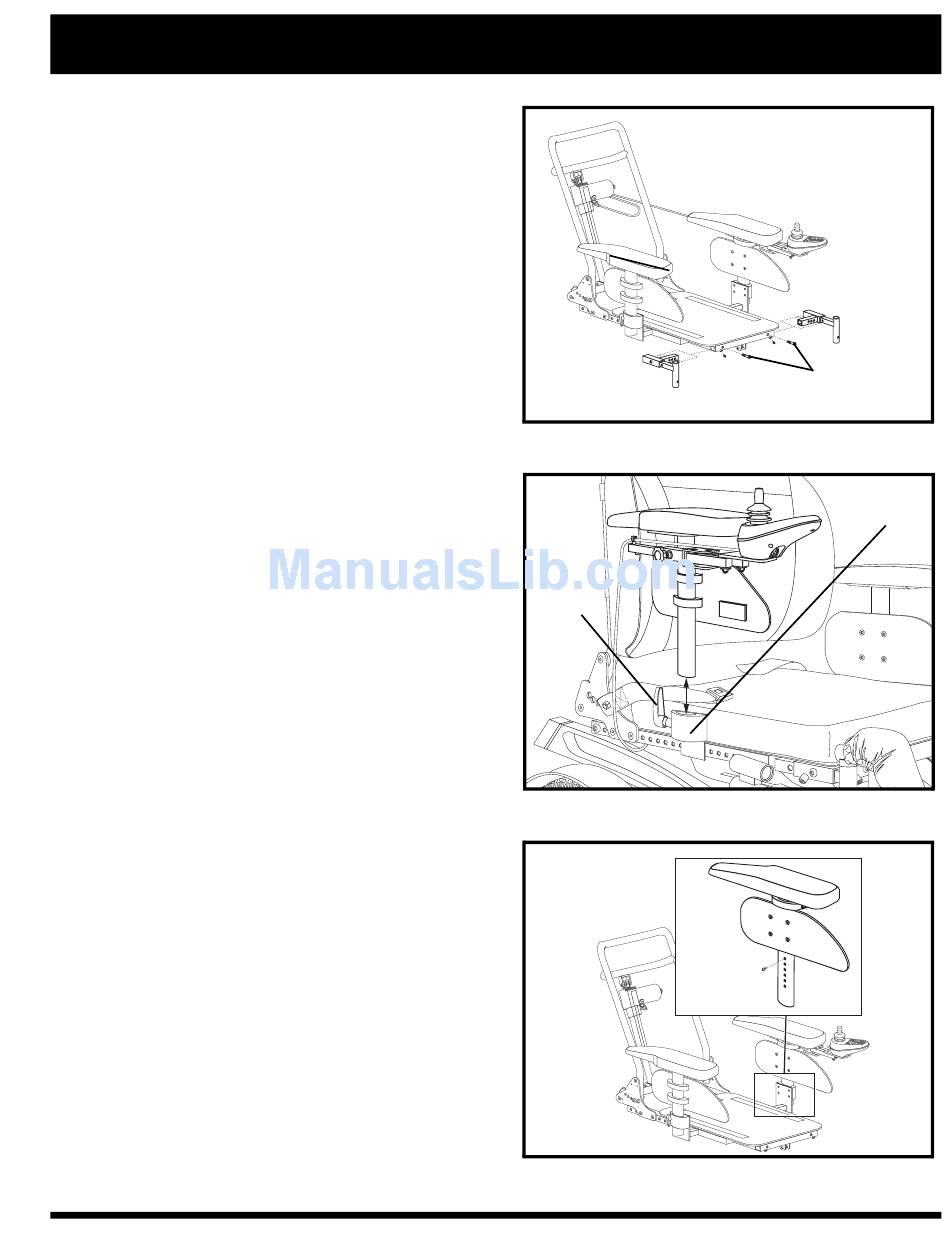

Figure 16. Leg Rest Width Adjustment
ARMREST
LATCH
LEVER
Figure 17. Armrest Removal/Installation
Figure 18. Armrest Bottom Height Adjustment
www.pridemobility.com
LEGREST
RECEIVER
HARDWARE
ARMREST
RECEIVER
25
