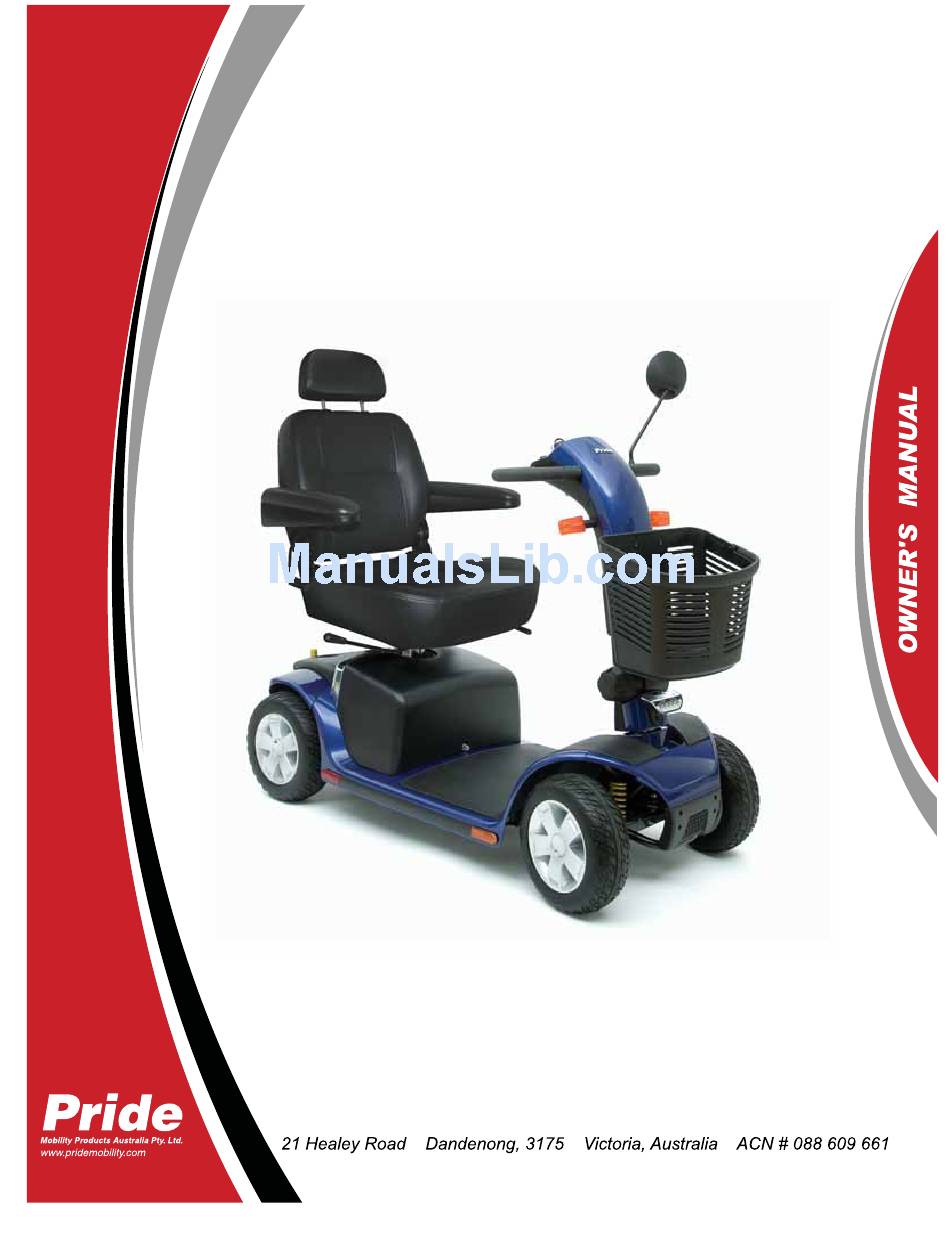

  • Page 1 PATHRIDER 10 DELUXE...
  • Page 2 S A F E T Y G U I D E L I N E S WARNING! An authorised Pride Provider or qualified technician must perform the initial setup of this scooter and must perform all of the procedures in this manual.

  • Page 3: Table Of Contents

    SAFETY ............................5 III. YOUR SCOOTER ........................19 IV. BATTERIES AND CHARGING ..................24 OPERATION ..........................29 VI. COMFORT ADJUSTMENTS ....................31 VII. DISASSEMBLY AND ASSEMBLY ...................33 VIII.BASIC TROUBLESHOOTING ...................35 IX. CARE AND MAINTENANCE ....................37 WARRANTY ..........................40 APPENDIX I - SPECIFICATIONS ....................41 Pathrider 10 Deluxe www.pridemobility.com...

  • Page 4: Introduction

    Pride to enhance or preserve the safe use of this product.
  • Page 5 Pinch/Crush points created during assembly. Corrosive chemicals contained in battery. EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Read and follow the information in the owner’s manual. Maximum seating weight. Pathrider 10 Deluxe www.pridemobility.com...
  • Page 6 Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Do not raise or lower the power seat while the scooter is in motion. Do not remove anti-tip wheels. Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating. www.pridemobility.com Pathrider 10 Deluxe...
  • Page 7 Always replace both batteries at the same time. Do not place the scooter in freewheel mode when on an incline or decline. Keep your hands away from the tyres when driving. Be aware that loose fitting clothing can become caught in drive tyres. Pathrider 10 Deluxe www.pridemobility.com...
  • Page 8 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorised Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Contains Lead.
  • Page 9 PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely.
  • Page 10 Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information. MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/ or property damage resulting from failure to observe weight limitations.
  • Page 11 WARNING! Never carry an oxygen tank weighing more than 6.8 kg (15 lbs). Never fill the front or rear basket with contents exceeding 6.8 kg (15 lbs). 158.75 kg (350 lbs.) 8° (14.1%) Figure 1. Maximum Recommended Incline Angles Pathrider 10 Deluxe www.pridemobility.com...
  • Page 12 Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the centre/stop position. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. www.pridemobility.com Pathrider 10 Deluxe...
  • Page 13 Your scooter is designed to provide optimum stability under normal driving conditions—dry, level sur- faces composed of concrete, blacktop, or asphalt. However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your scooter is designed to perform admirably on packed soil, grass, and gravel.
  • Page 14 Use your hand to turn the knob or push the handle or push-bar. Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly rearwards to pull the door open. www.pridemobility.com Pathrider 10 Deluxe...
  • Page 15 If you will be transporting your scooter during travel, you may find it necessary to use a vehicle-mounted lift system or elevation product to aid in transportation. Pride recommends that you closely review the warnings, instructions, specifications, and safety information set forth by the manufacturer of the lift/ elevation product before using that product.
  • Page 16 MOTOR VEHICLE TRANSPORT Pride recommends that you do not remain seated in your scooter while traveling in a motor vehicle. The scooter should be stowed in the boot of a car or in the back of a truck or van with the batteries removed and properly secured.
  • Page 17 I I . S A F E T Y POSITIONING BELTS Your authorised Pride Provider, therapist(s), and other healthcare professionals are responsible for deter- mining your requirement for a positioning belt in order to operate your scooter safely. WARNING! If you require a positioning belt to safely operate your scooter, make sure it is fastened securely.
  • Page 18 WARNING! The addition of accessories or components to the electrically-powered mobil- ity vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your scooter in any way not authorised by Pride. WARNING! The electrically-powered mobility vehicle itself can disturb the performance of other electrical devices located nearby, such as alarm systems.

  • Page 19: Your Scooter

    Battery Condition Meter When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the approximate battery voltage strength. For further information on battery charging, see IV. “Batteries and Charging.” Pathrider 10 Deluxe www.pridemobility.com...
  • Page 20 Release the throttle control lever and allow your scooter to come to a complete stop before engaging the other side of the lever. When the throttle control lever is completely released, it automatically returns to the centre “stop” position and engages your scooter’s brakes. www.pridemobility.com Pathrider 10 Deluxe...
  • Page 21 Figure 5. Off-board Charger Port (Tiller Mounted) moisture and foreign material. OFF-BOARD CHARGER (10A) KEY SWITCH (5A) LOWER HEADLIGHT (1A) REAR TAIL LIGHTS (1A) LEFT TURN INDICATOR (1A) RIGHT TURN INDICATOR (1A) Figure 6. Tiller Console Fuses Pathrider 10 Deluxe www.pridemobility.com...
  • Page 22 PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is not authorised by Pride. Motor/Transaxle Assembly The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your scooter’s batteries into the controlled mechanical energy that drives the scooter’s wheels.
  • Page 23 Push in the reset button to reset the breaker. If the breaker trips frequently, you may need to charge the batteries more often or have your authorised Pride Provider perform a load test on the batteries. Figure 8. Main Circuit Breaker (Rear Section Mounted) If the main circuit breaker trips repeatedly, see your authorised Pride Provider for service.

  • Page 24: Batteries And Charging

    Plug the charger directly into a properly wired standard electrical outlet. PROHIBITED! Do not allow unsupervised children to play near the scooter while the batteries are charging. Pride recommends that you do not charge the batteries while the scooter is occupied.
  • Page 25 Therefore, when the charger is plugged in, it maintains the charge on your scooter’s bat- teries, but does not overcharge them. We do not recommend that you charge your scooter’s batteries for more than 24 consecutive hours. Pathrider 10 Deluxe www.pridemobility.com...
  • Page 26 For the safest and most efficient charging of your scooter’s batteries we recommend only use of the charger supplied as original equipment with your Pride product. Any charging method resulting in batteries being charged individually is especially prohibited.
  • Page 27 WARNING! Do not mix old and new batteries. Always replace both batteries at the same time. WARNING! Contact your authorised Pride Provider if you have any questions regarding the batteries in your scooter. WARNING! Do not replace the batteries while the scooter is occupied.
  • Page 28 NOTE: If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag. Contact your local waste disposal agency or your authorised Pride Provider for instructions on disposal and battery recycling, which is our recommended course of action.

  • Page 29: Operation

    Pull on the right handgrip to steer your scooter to the right. Move the tiller to the centre position to drive straight ahead. To stop, slowly release the throttle control lever. The electronic brakes will automatically engage, bringing your scooter to a stop. Pathrider 10 Deluxe www.pridemobility.com...
  • Page 30 Although the controller is shut down, power will still be supplied to the scooter’s lighting system. If the power down timer feature takes effect, perform the following steps to resume normal operation: 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. www.pridemobility.com Pathrider 10 Deluxe...

  • Page 31: Comfort Adjustments

    ADJUSTMENT forward or rearward to adjust the seatback angle. LEVER 2. Release the seatback adjustment lever once the seat is in a comfortable riding position. Figure 15. Seatback Adjustment Pathrider 10 Deluxe www.pridemobility.com...
  • Page 32 6. Reinstall the nut onto the seat height adjustment bolt and tighten. LOWER SEAT HEIGHT 7. Reinstall the rear shroud and the seat. SEAT ADJUSTMENT POST BOLT Figure 17. Seat Height Adjustment www.pridemobility.com Pathrider 10 Deluxe...

  • Page 33: Disassembly And Assembly

    5. Remove the batteries from the battery wells. WARNING! Failure to unplug both battery harnesses prior to sepa- Figure 19. Harness Connections rating the front and rear sections could result in permanent dam- age to the scooter. Pathrider 10 Deluxe www.pridemobility.com...
  • Page 34 5. Reinstall the batteries to the battery wells. 6. Connect both battery harnesses. See figure 19. 7. Secure the battery tie-down strap. 8. Reinstall the battery shroud. 9. Reinstall the seat and rotate it into place. www.pridemobility.com Pathrider 10 Deluxe...

  • Page 35: Viii.basic Troubleshooting

    Return the throttle control lever to position at start up. centre position, turn scooter off then back on. Speed pot error. Call your authorised Pride Provider for assistance. Motor volts error. Call your authorised Pride Provider for assistance. Other internal errors.
  • Page 36 If the main circuit breaker trips repeatedly, see your authorised Pride Provider for service. Charge the batteries more frequently. See IV. “Batteries and Charging.” If the problem continues, have both of your scooter’s batteries load tested by your authorised Pride Provider.

  • Page 37: Care And Maintenance

    Contact your authorised Pride Provider for information regarding replacement wheels for your scooter. WARNING! Wheels on your scooter should only be serviced/replaced by an authorised Pride Provider or qualified technician.
  • Page 38 Regularly check all wiring connections. Regularly check all wiring insulation, including the charger power lead, for wear or damage. Have your authorised Pride Provider repair or replace any damaged connector, connection, or insula- tion that you find before using your scooter again.
  • Page 39 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Provider for information on proper disposal of pack- aging, metal frame components, plastic components, electronics, and batteries.

  • Page 40: Warranty

    (tyres,belts, bulbs, upholstery, plastic shrouds, motor brushes, fuses, and batteries), or damage to the prod- uct caused by misuse or accident for which Pride or its agent cannot be held responsible. This warranty does not include labour or service calls.

  • Page 41: Appendix I - Specifications

    Test conducted at maximum weight capacity. NOTE: This product conforms to all applicable ANSI-RESNA testing requirements and ISO 7176 series EN12184 standards. All specifications subject to change without notice. Pathrider 10 Deluxe www.pridemobility.com...
  • Page 42 43.81 - 47.62 cm (17.25 - 18.75 in.) 8.25 cm (3.25 in.) 119.38 cm (47 in.) 43.18 cm (17 in.) 44.45 cm (17.5 in.) Turning Radius 133.35 cm (52.5 in.) 56.21 cm (22.13 in) Figure 24. Dimensions www.pridemobility.com Pathrider 10 Deluxe...
  • Page 43 Mobility Products Australia Pty. Ltd. *INFMANU3851*...
