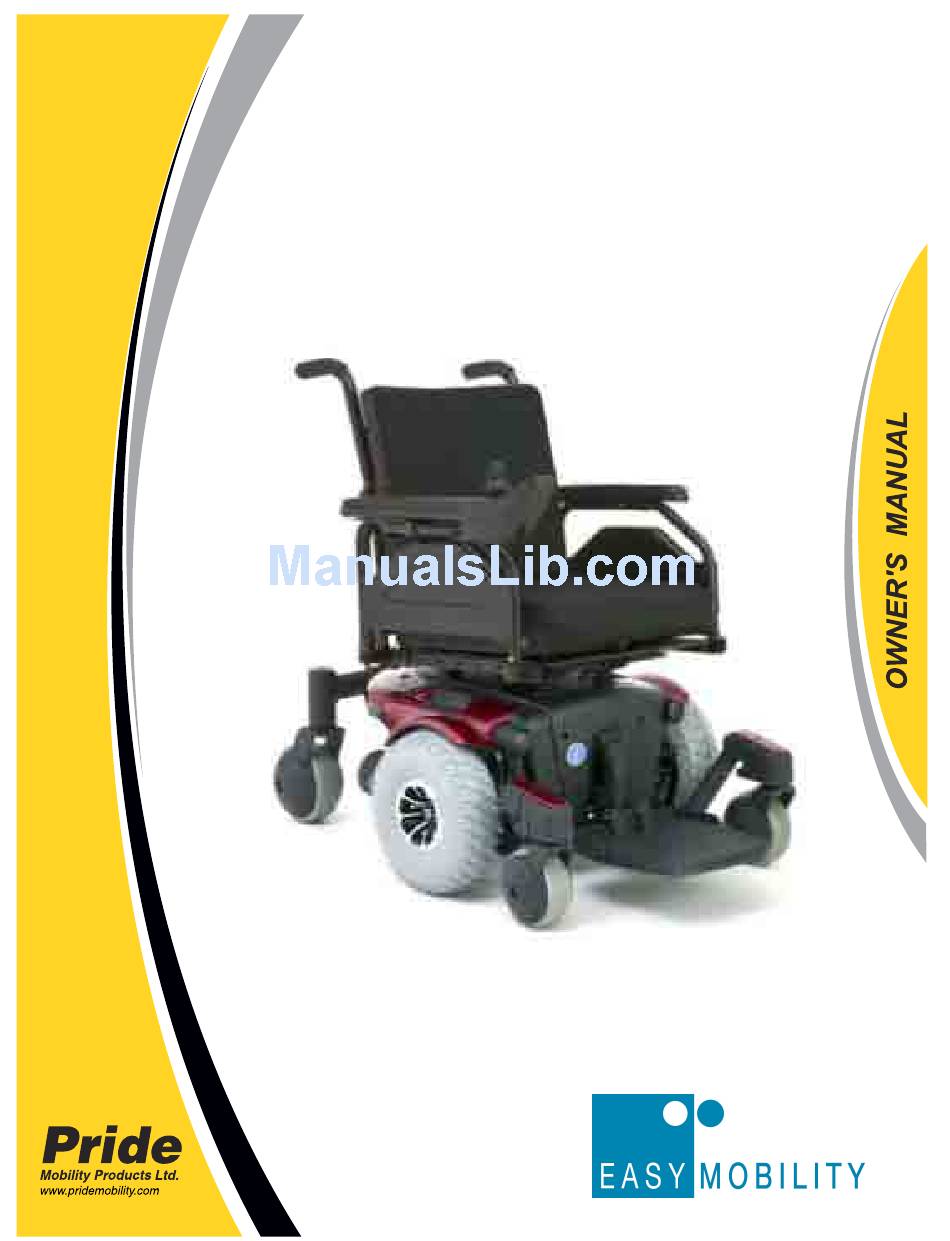

  • Page 1 QUANTUM S E R I E S Including Models: Quantum 610 Freephone 0800 62 68 29...
  • Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2008 Pride Mobility Products Ltd. INFMANU3077/Rev C/January 2008...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION............................ 4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 IV. ASSEMBLY............................21 COMFORT ADJUSTMENTS......................24 VI. BATTERIES AND CHARGING ....................... 30 VII. CARE AND MAINTENANCE ......................34 VIII. WARRANTY............................41 APPENDIX I - SPECIFICATIONS ......................

  • Page 4: Introduction

    Pride to enhance or preserve the safe use of this product.

  • Page 5: Safety

    I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.
  • Page 6 I I . S A F E T Y Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Do not place your power chair in freewheel mode while on an incline. Do not place your power chair in freewheel mode while on an decline.
  • Page 7 I I . S A F E T Y EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
  • Page 8 S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorised Pride Dealer for information on proper disposal and recycling of your Pride product and its packaging. Locked and in drive mode.
  • Page 9 Pride products. Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely.
  • Page 10 Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
  • Page 11 Doing so could cause instability in your power chair. Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 8.7% (5°). See figure 1.
  • Page 12 Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop or tarmac. However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil, grass and gravel. Feel free to use your power chair safely on lawns and in park areas.
  • Page 13 Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the boot of a car or in the back of a truck or van with batteries removed and properly secured.
  • Page 14 Never reach, lean or bend while driving your power chair. If it is absolutely necessary to reach, lean or bend while seated on your power chair, it is important to maintain a stable centre of gravity and keep the power chair from tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
  • Page 15 User Positioning Pride recommends that all users be seated in an upright position with their pelvis positioned as far rearward as possible in the power chair seat. All users need to discuss pelvic positioning with their Quantum Rehab Specialist, therapist(s) or healthcare professional to determine appropriate pelvic position when seated on the power chair based on the user’s individual medical needs.
  • Page 16 WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed the necessary testing requirements for cigarette smoking.

  • Page 17: Your Power Chair

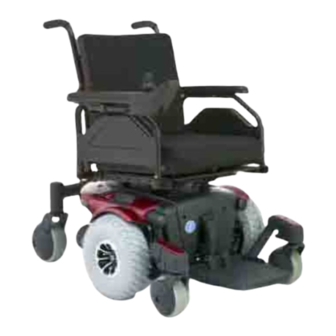

    I I I . Y O U R P O W E R C H A I R THE QUANTUM 610 The Quantum 610 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback and seat base.
  • Page 18 I I I . Y O U R P O W E R C H A I R REAR SHROUD FASTENERS TRAPEZE BARS FRONT COVER MOTOR/BRAKE ASSEMBLY Figure 6. The Quantum 610 Power Base Electrical Components The electrical components are located inside the power base. The main circuit breaker is located on the front of the battery tray.
  • Page 19 I I I . Y O U R P O W E R C H A I R Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage to the motors and the electronics.
  • Page 20 I I I . Y O U R P O W E R C H A I R Manual Freewheel Levers The Quantum 610 has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and manoeuvre the chair manually.

  • Page 21: Assembly

    I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified carer before using the product or making comfort adjustments.
  • Page 22 I V . A S S E M B L Y Seat Installation It may be necessary to install the seat either prior to initial operation or after transporting your power chair. Most REAR EXTRUSION seats are attached to the power base with the Universal Mounting System (UMS).
  • Page 23 I V . A S S E M B L Y MANDATORY! Prevent controller harness damage! Avoid routing the controller harness on the outside of the armrest pad. Route the harness under the armrest or toward the inside of the armrest pad. Use cor rect tie-down points for the controller harness to prevent the harness WIRE TIES...

  • Page 24: Comfort Adjustments

    C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height and angle, armrest angle, foot platform height and angle and controller position. NOTE: If your power chair is equipped with a specialty seat, refer to the information provided in separate manuals.
  • Page 25 C O M F O R T A D J U S T M E N T S 12. Reinstall each screw into the trapeze bars and tighten. 13. Reinstall the seat and flip down the seat latch safety. 14. Reconnect the controller connector(s) to the power base. 15.
  • Page 26 C O M F O R T A D J U S T M E N T S Armrest Width Adjustment You can change each armrest’s width independently of the other. NOTE: Changing the armrest width may increase the overall width of your power chair. To change the armrest width: 1.
  • Page 27 C O M F O R T A D J U S T M E N T S 7. Route the controller cable to the back of the power base and plug in the controller. See figure 12. 8. Secure the controller cable to the armrest with wire ties. See figure 13.
  • Page 28 C O M F O R T A D J U S T M E N T S Foot Platform Angle Adjustment You can adjust the angle of the foot platform with a hex key. To adjust the foot platform angle: 1.
  • Page 29 C O M F O R T A D J U S T M E N T S Positioning Belt Your power chair may be equipped with a positioning belt that can be adjusted for operator comfort. See figure 26. The positioning belt is designed to support the operator so that he/she does not slide down or forward in the seat.

  • Page 30: Batteries And Charging

    PROHIBITED! Do not allow unsupervised children to play near the power chair while the batteries are charging. Pride recommends that you do not charge the batteries while the power chair is occupied. MANDATORY! Read the battery charging instructions in this manual and in the manual supplied with the battery charger before charging the batteries.
  • Page 31 4. Plug the off-board charger into the electrical outlet. NOTE: If it is a Pride off-board charger, then there are two lights in it. The red light indicates that power to the off-board charger is on. The green light indi- cates that the batteries are fully charged.
  • Page 32 We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specific demands. Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries encoun- ter temperature extremes that may influence initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
  • Page 33 V I . B A T T E R I E S A N D C H A R G I N G It might take a few days for the temperature of the battery to stabilise and adjust to its new ambient temperature. More importantly, it will take a few “charging cycles”...

  • Page 34: Care And Maintenance

    3. Check the joystick operation and the brakes before using your power chair again. 4. If any inconsistencies are found, take your power chair to your authorised Pride Dealer. Power chairs that are fre- quently exposed to sources of water, such as incontinence, should be inspected often for corrosion and electronic components may need to be replaced frequently.
  • Page 35 V I I . C A R E A N D M A I N T E N A N C E WARNING! Never use a rubber conditioner on the tread area of the tyres; doing so may make the tyres slippery and cause your power chair to skid.
  • Page 36 Your power chair must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Dealer for information on proper disposal of power chair packaging, metal frame components, plastic components, electronics and batteries.
  • Page 37 V I I . C A R E A N D M A I N T E N A N C E TYRE AXLE KEY TUBE WHEEL FRONT RIM HALF AXLE SLOT REAR RIM HALF WASHERS NUTS DRIVE WHEEL NUT DRIVE WHEEL WASHER Figure 28.
  • Page 38 V I I . C A R E A N D M A I N T E N A N C E REAR SHROUD FASTENERS REAR SHROUD BATTERY WIRING DIAGRAM LABEL FRONT BATTERY REAR BATTERY Figure 29. Battery Installation www.quantumrehab.com Quantum 610...
  • Page 39 V I I . C A R E A N D M A I N T E N A N C E WARNING! Do not mix or match new and old batteries. If you encounter a situation where one battery needs to be replaced, then replace both batteries. Refer to the specifications table in this manual and the manual supplied with the battery charger for recommended type and capacities.
  • Page 40 V I I . C A R E A N D M A I N T E N A N C E When to See Your Quantum Rehab Specialist for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your Quantum Rehab Specialist.

  • Page 41: Warranty

    Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your authorised Pride Dealer is re- sponsible for labour and service. Please contact your authorised Pride Dealer for information about these ser- vices and for any applicable charges.

  • Page 42: Appendix I - Specifications

    A P P E N D I X S P E C I F I C A T I O N S QUANTUM 610 SPECIFICATIONS Suspension: Active-Trac Extreme (ATX) Drive Wheels: 25.4 cm (10 in.), pneumatic or solid available Front Castor Wheels: 12.7 cm (5 in.), solid Rear Castor Wheels: 15.24 cm (6 in.), solid...
  • Page 43 A P P E N D I X S P E C I F I C A T I O N S LENGTH 39”(99 cm ) with foot platform 34.75”(88.27 cm ) TURNING RADIUS 21.25”(53.98 cm ) WIDTH 23.25”(59 cm ) 2.375”(6 cm ) GROUND CLEARANCE Figure 30.
  • Page 44 N O T E S www.quantumrehab.com Quantum 610...
  • Page 45 N O T E S Quantum 610 www.quantumrehab.com...
  • Page 46 N O T E S www.quantumrehab.com Quantum 610...
  • Page 47 Quality Control - Quantum 610 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *infmanu3077* Serial #...
