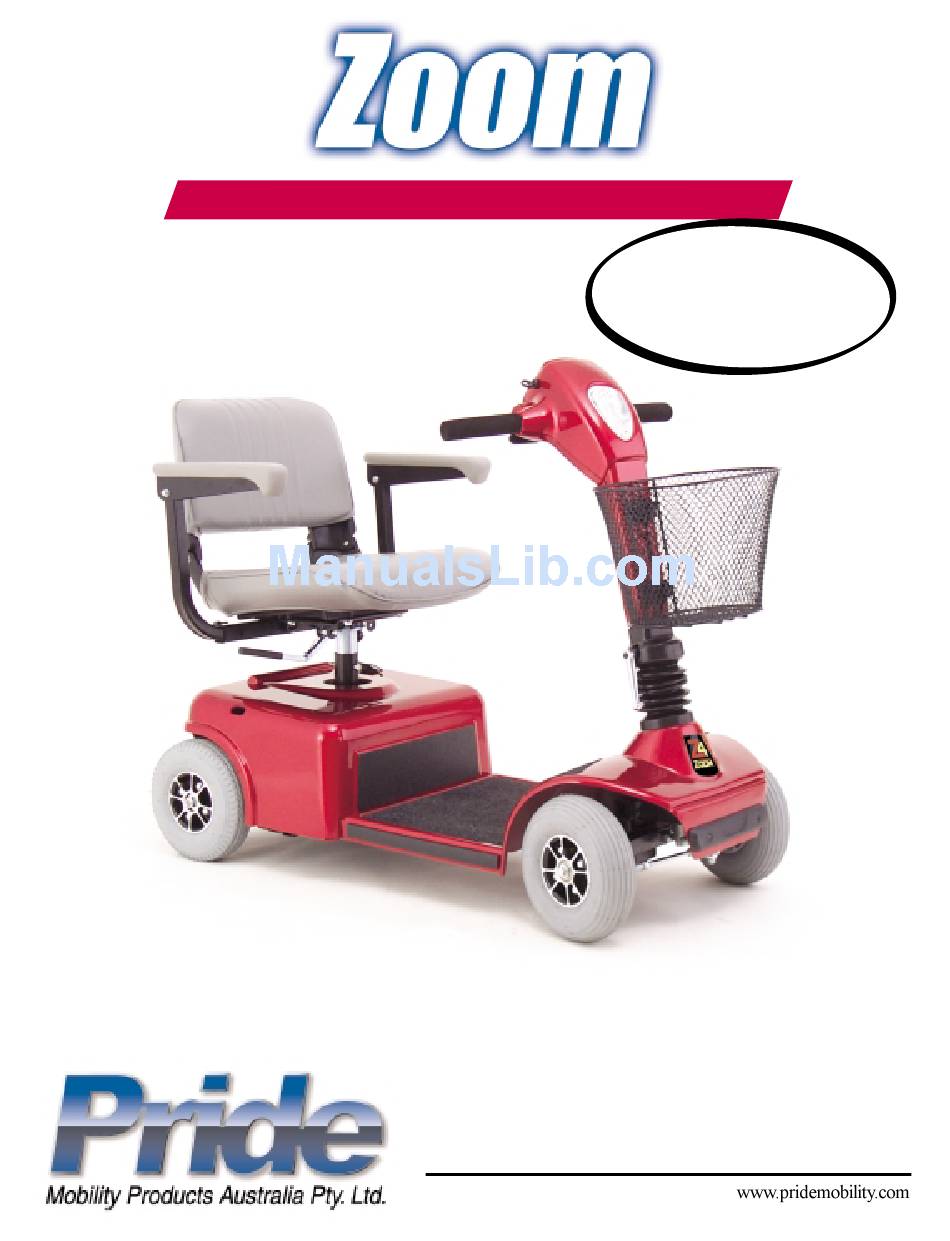

- Page 1 Owner’s Manual ATTENTION: Please read the content of your owner’s manual before operating your scooter. The Ultimate In Style & Performance ® 21 Healey Road Dandenong, 3175 Victoria, Australia...
-
Page 2: Safety Guidelines
Using your Pride product safely depends upon your diligence in following the warnings, cautions, and instructions in this owner’s manual. Using your Pride product safely also depends upon your own good judgement and/or common sense, as well as that of your provider, caregiver, and/or healthcare professional. - Page 3 C O N T E N T S INTRODUCTION SAFETY III. SPECIFICATIONS IV. YOUR ZOOM BATTERIES AND CHARGING VI. OPERATION VII. COMFORT ADJUSTMENTS VIII.DISASSEMBLY AND ASSEMBLY IX. TROUBLESHOOTING CARE AND MAINTENANCE XI. WARRANTY ZOOM 4...
-
Page 4: Information Exchange
I N T R O D U C T I O N Please read and follow all of the instructions in this manual before you attempt to operate your Zoom for the first time. INFORMATION EXCHANGE... - Page 5 I N T R O D U C T I O N My Authorised Pride Provider Is: Quick Reference Information: NOTE: If you ever lose or misplace your product registration card or owner’s manual, write us and we will be glad to send you a new one immediately.
-
Page 6: I I . S A F E T Y
I I . S A F E T Y GENERAL WARNING! Do not operate your new scooter for the first time without completely reading and understanding this owner’s manual. MODIFICATIONS WARNING! Do not modify your scooter in any way. Unauthorised modifications may result in personal injury and/or damage to your scooter. -
Page 7: Pre-Ride Safety Check
WEIGHT LIMITATIONS WARNING! Exceeding the weight limit voids your warranty and may result in personal injury and damage to your scooter. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations. WARNING! Do not carry passengers on your scooter. Carrying passengers on your scooter may result in personal injury and/or property damage. - Page 8 8.7% 7.0% 3.5% FIGURE 1. MAXIMUM RECOMMENDED ZOOM 4-WHEEL INCLINE ANGLE WARNING! Any attempt to climb or descend a slope steeper than 8.7% may put your scooter in an unstable position and cause it to tip, resulting in personal injury.
-
Page 9: Cornering Information
I I . S A F E T Y WARNING! Do not exceed the incline guidelines or any other specifications presented in this manual. FIGURE 2. NORMAL DRIVING POSITION FIGURE 2A. INCREASED STABILITY DRIVING POSITION CORNERING INFORMATION WARNING! When cornering sharply, reduce your speed. When using your scooter at higher speeds, do not corner sharply. -
Page 10: Outdoor Driving Surfaces
I I . S A F E T Y OUTDOOR DRIVING SURFACES STATIONARY OBSTACLES (STEPS, KERBS, ETC.) WARNING! Do not drive near raised surfaces, unprotected ledges, and/or drop-offs (kerbs, porches, stairs, etc.). WARNING! Do not attempt to have your scooter climb or descend an obstacle that is inordinately high. -
Page 11: Braking Information
Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme caution. NOTE: Safety accessories such as fluorescent flags are available to order from your authorised Pride provider. INCLEMENT WEATHER PRECAUTIONS WARNING! It is recommended that you do not operate your scooter in icy or slippery conditions or on salted surfaces (i.e., walks or roads). - Page 12 I I . S A F E T Y STAIRS AND ESCALATORS WARNING! Do not use your scooter to negotiate steps or escalators. You may cause injury to yourself and to others and damage your scooter. DOORS ELEVATORS LIFT/ELEVATION PRODUCTS BATTERIES WARNING! 32 AH scooter batteries weigh 11 kg each and 17 AH batteries weigh 6.3 kg each.
-
Page 13: Motor Vehicle Transport
I I . S A F E T Y MOTOR VEHICLE TRANSPORT WARNING! Do not sit on your scooter while it is in a moving vehicle. Personal injury and/or property damage may result. WARNING! Always be sure your scooter and its batteries are properly secured when it is being transported. -
Page 14: Reaching And Bending
I I . S A F E T Y REACHING AND BENDING WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by reaching down between your knees. Movements such as these may change your centre of gravity and the weight distribution of the scooter and cause your scooter to tip, possibly resulting in personal injury. -
Page 15: Specifications
112 cm Length 46 cm 41 cm 56- 74 cm 137 cm Turning Radius FIGURE 4. ZOOM DIMENSIONS 53 cm 7 cm 5 cm 20 cm 23 cm FIGURE 4A. ZOOM TIRE DIMENSIONS (FRONT) FIGURE 4B. ZOOM TIRE DIMENSIONS (REAR) - Page 16 I I I . S P E C I F I C A T I O N S Model Number SC155AUS Available Colours Candy Apple Red, Viper Blue Overall Length 112 cm Overall Width 53 cm Total Weight Without Batteries 52.5 kg Heaviest Piece When Disassembled Rear section: 20.5 kg...
-
Page 17: Control Console Assembly
I V . Y O U R Z O O M SEAT REAR SECTION FRONT SECTION BASKET BATTERIES REAR SHROUD FIGURE 5. SEVEN SCOOTER COMPONENTS CONTROL CONSOLE ASSEMBLY WARNING! Do not expose the control console assembly to moisture. In the event that the console does become exposed to moisture, do not attempt to operate your scooter until the control console assembly has thoroughly dried. - Page 18 I V . Y O U R Z O O M Key Switch WARNING! If the key is removed from the key switch while your scooter is in motion, the electronic brakes engage and your scooter comes to an abrupt stop! Speed Adjustment Dial Throttle Control Lever Battery Condition Metre...
-
Page 19: Rear Section
I V . Y O U R Z O O M REAR SECTION BATTERIES ELECTRONIC CONTROLLER ASSEMBLY MAIN CIRCUIT BREAKER (RESET BUTTON) ONBOARD BATTERY CHARGER CHARGER POWER CORD RECEPTACLE BATTERY CHARGER MANUAL FREEWHEEL FUSE LEVER MOTOR/TRANSAXLE ASSEMBLY ANTI-TIP WHEELS FIGURE 7. REAR SECTION Onboard Battery Charger Battery Charger Fuse... - Page 20 Z O O M CAUTION! The replacement fuse must exactly match the rating of the new fuse. If you install a fuse with an incorrect rating, you may damage the charger. Contact your authorised Pride provider for fuse rating information.
-
Page 21: Optional Accessories
I V . Y O U R Z O O M Motor/Transaxle Assembly Anti-Tip Wheels OPTIONAL ACCESSORIES CANE/CRUTCH SINGLE CANE/ DUAL CANE/CRUTCH WALKER HOLDER FOREARM CRUTCH HOLDER CRUTCH HOLDER HOLDER HOLDER REAR BASKET OXYGEN TANK HOLDER SAFETY FLAG CUP HOLDER TAILLIGHT QUAD CANE HOLDER ALSO AVAILABLE BUT NOT SHOWN:... -
Page 22: Batteries And Charging
B A T T E R I E S A N D C H A R G I N G BATTERY SPACER BRACKET FIGURE 8. POSITIONING THE BATTERY SPACER BRACKET CHRISTMAS TREE CLIP READING YOUR BATTERY VOLTAGE FIGURE 8A. INSTALLING THE CHRISTMAS TREE CLIPS CHARGING YOUR BATTERIES FIGURE 9. - Page 23 B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING-FREQUENTLY ASKED QUESTIONS (FAQS) How does the charger work? What if my scooter’s batteries won’t charge? Can I use a different charger? How often must I charge the batteries? How can I ensure maximum battery life?
- Page 24 B A T T E R I E S A N D C H A R G I N G How can I get maximum range or distance per charge? Rarely will you have ideal driving conditions—smooth, flat, hard driving surfaces with no wind or curves. Often, you will face hills, pavement cracks, uneven and loosely packed surfaces, curves, and wind, all of which affect the distance or running time per battery charge.
- Page 25 B A T T E R I E S A N D C H A R G I N G Why do my new batteries seem weak? How should I store my scooter and its batteries? WARNING! If your scooter’s batteries do become frozen, do not attempt to charge them. Cold or frozen batteries should be allowed to warm up for several days prior to recharging.
-
Page 26: Operation
V I . O P E R A T I O N BEFORE GETTING ONTO YOUR SCOOTER WARNING! Never leave the manual freewheel lever pulled up unless you are manually pushing your scooter. GETTING ONTO YOUR SCOOTER WARNING! Never attempt to get onto your scooter without first removing the key from the key switch. -
Page 27: Auto Shutoff Feature
V I . O P E R A T I O N GETTING OFF OF YOUR SCOOTER WARNING! Never attempt to get off of your scooter without first removing the key from the key switch. This prevents the scooter from moving if accidental throttle control lever contact is made. AUTO SHUTOFF FEATURE NOTE: Although the electronic controller asembly will be shut down by the auto shutoff feature, all activated lights will remain on. -
Page 28: Seat Height Adjustment
V I I . C O M F O R T A D J U S T M E N T S WARNING! Remove the key before adjusting the tiller or the seat. Never attempt to adjust the tiller or the seat while the scooter is in motion. TILLER ADJUSTMENT LEVER TILLER ADJUST-... -
Page 29: Armrest Width Adjustment
V I I . C O M F O R T A D J U S T M E N T S FRONT-TO-BACK SEAT ADJUSTMENT SEAT PLATFORM SEAT LOCK LEVER SEAT BOLTS FIGURE 12. FRONT-TO-BACK SEAT ADJUSTMENT ARMREST WIDTH ADJUSTMENT ARMRESTS ADJUSTMENT KNOBS... -
Page 30: Disassembly And Assembly
V I I I . D I S A S S E M B L Y A N D A S S E M B L Y DISASSEMBLY WARNING! Lifting weight beyond your physical capability may result in personal injury. Ask for assistance when necessary while disassembling and assembling your scooter. - Page 31 V I I I . D I S A S S E M B L Y A N D A S S E M B L Y UPPER SEAT POST FRAME HANDLE FRAME LOCK UP FIGURE 17. FRAME HANDLE FIGURE 18. FRAME SEPARATION ASSEMBLY...
-
Page 32: Troubleshooting
I press the n Fully charge your scooter’s batteries. throttle control lever. n Have your authorised Pride provider load test each battery. n Obtain a battery load tester at most any automotive parts... -
Page 33: Care And Maintenance
C A R E A N D M A I N T E N A N C E TYRE PRESSURE 30-35 psi WARNING! Do not exceed 35 psi; overinflating a tyre can cause it to explode. TYRE CONDITION AND TREAD WEAR WARNING! Do not put rubber conditioner on tyre tread;... -
Page 34: Warranty
X I . W A R R A N T Y TWO-YEAR LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY NOT COVERED UNDER WARRANTY BATTERIES SERVICE CHECKS AND WARRANTY SERVICE...
