2 x N105-0011 (door bushing) 2 x N160-0022 (pivot pin clip)

15. Door Installation

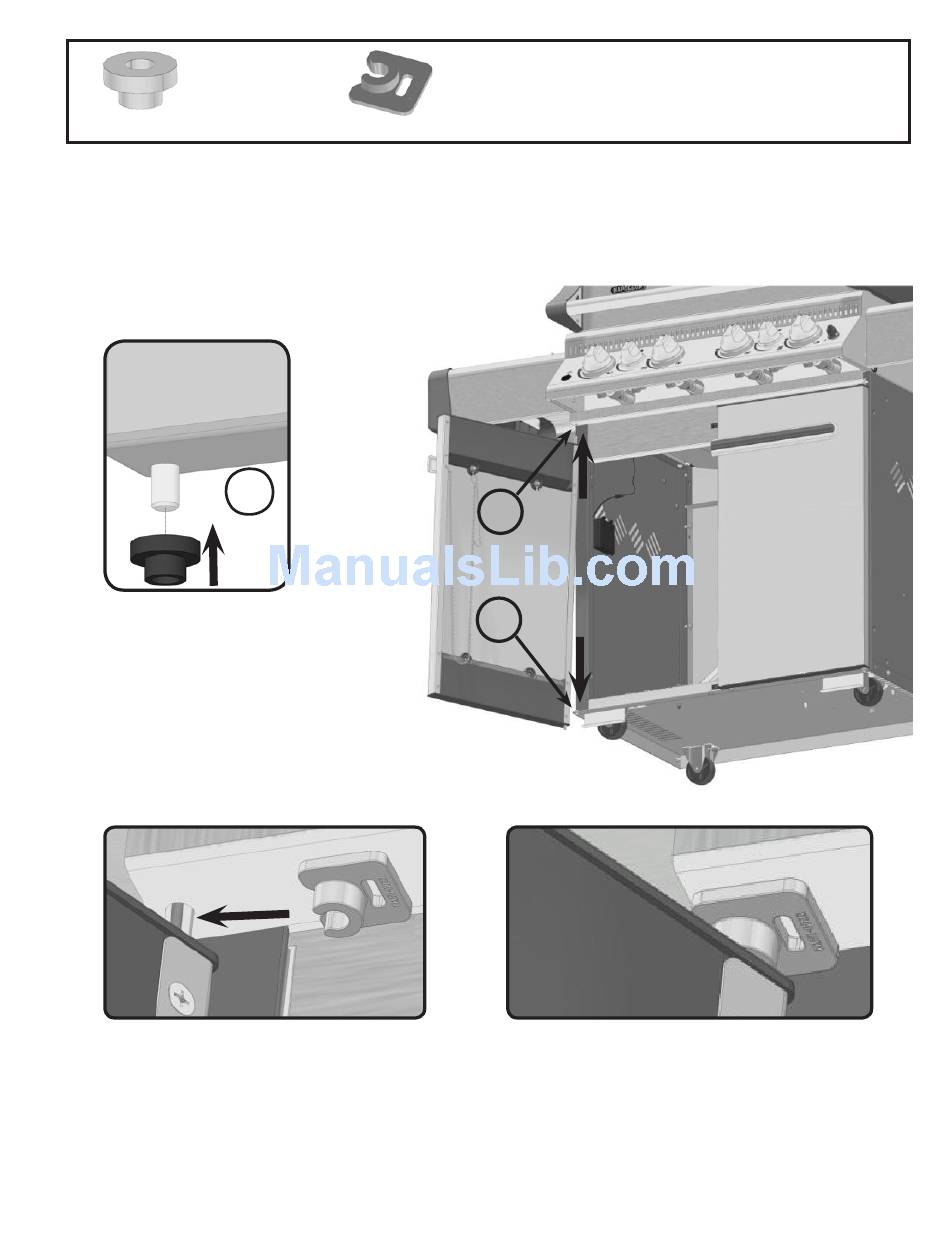

Slide the bushing over the pivot pin on the bottom of the door. Direct the top pivot pin into the hole in the underside of
the front cabinet support and then lower the door fitting bushing into the hole in the bottom shelf. Once installed, snap
the top pivot pin clip over the top pivot pin as illustrated.
