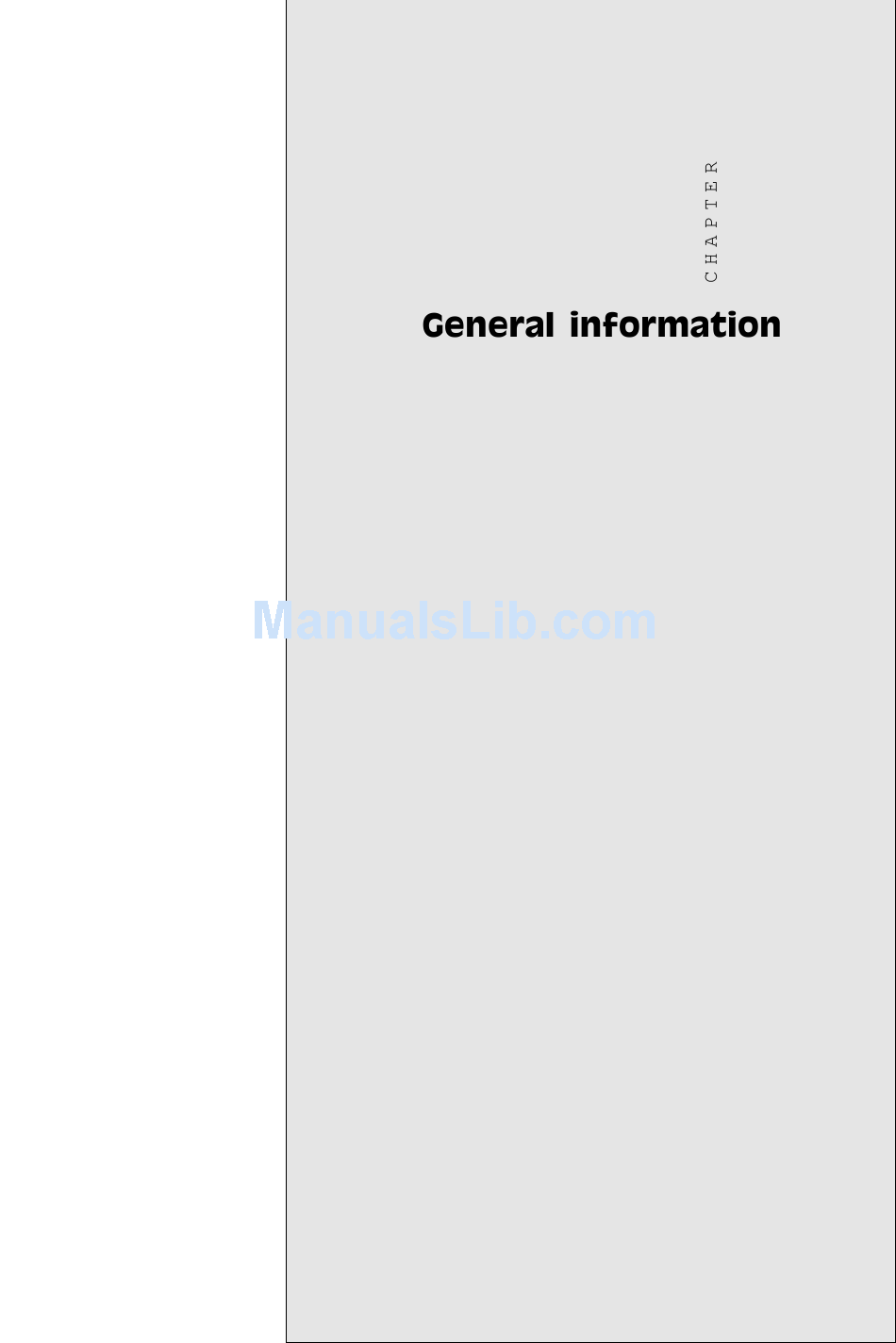

  • Page 1 Chapter 1 General information...

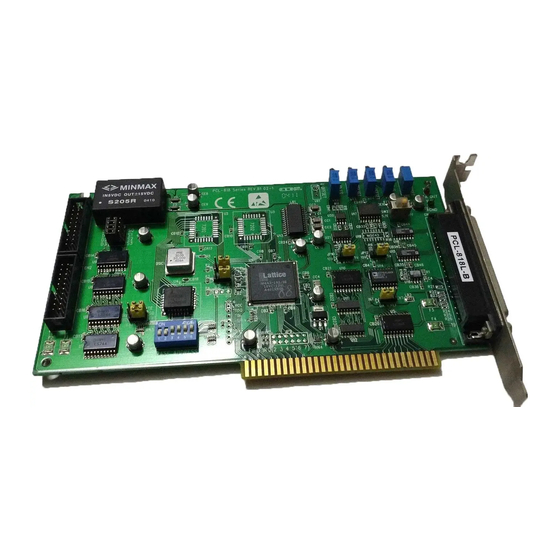

  • Page 2 A/D conversion with DMA and individual channel gains. The PCL-818L is an advanced new version of our popular PCL-818. A custom 160-pin ASIC chip integrates the functions of the full-size PCL-818. This chip gives you maximum accuracy and reliability, along with minimum cost, size and power consumption.
  • Page 3 • Channels: 16 single-ended or 8 differential, switch selectable • Resolution: 12 bits • Input ranges (bipolar, V ±0.625, ± 1.25, ±2.5, ±5 or ±1.25, ± 2.5, ±5, ±10 All input ranges are software programmable. • Overvoltage: Continuous ±30 V max. •...
  • Page 4 Pacer channel 0: Internal 100 KHz or external clock (10 MHz max). Source selected with Timer/Counter Enable Register (BASE+10) • Pacer output: 0.00023 Hz (71 minutes/pulse) to 2.5 MHz • Level: IRQ 2 to 7, software selectable • Enable: Via INTE bit of Control Register (BASE+9) PCL-818L User's Manual...
  • Page 5 • Operating temp: 0 to +50 • Storage temp: -20 to +65 We offer a wide variety of optional daughterboards to help you get the most from your PCL-818L. You will need the PCLD-774 Analog Expansion Board or PCLD-8115 Wiring Terminal Board to make connections.
  • Page 6 This board holds eight opto-isolated solid state relay modules and provides an additional eight outputs to drive external relays. These boards let you control relays through the PCL-818L's 16-bit digital output channels. PCLD-785B provides 24 SPDT relays, while the PCLD-885 provides 16 SPST power relays.
  • Page 7 The PCL-818L comes with a powerful and easy-to-use software driver whose functions can be accessed by referring to a user-defined Parameter Table. With these driver functions your application pro- gramming becomes much easier, especially when you want to use some of the sophisticated features available from the PCL-818L, such as interrupt or DMA data transfer.
  • Page 8 16 channels of acquired data to disk. It can store at up to 200 KB/sec with no limitations on file size. Advantech Contact your local PC-LabCard representative for more information about these software packages. PCL-818L User's Manual...
