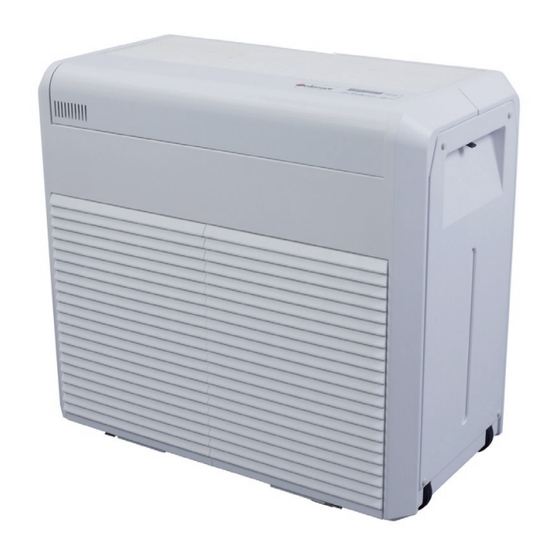

- Page 1 Defensor pH28/pH28a adiabatic Humidifiers Operating instructiOns...
-
Page 3: Table Of Contents
Unit specifications Connecting the water supply (PH28A only) Putting the unit into operation Appendix 10.1 Wiring diagram Operation Filling the water tank (PH28 only) 10.2 Spare parts list PH28 10.3 Spare parts list PH28A 5.2 Switching the unit on and off Menu overview Unit settings (normal operating mode) 5.4.1 Setting the desired humidity value... -
Page 4: Introduction
Introduction To the very beginning We thank you for having purchased an air purifier/air humidifier Defensor PH28 or PH28A. The air purifier/air humidifier Defensor PH28/PH28A incorporates the latest technical ad v an c es and meets all recognized safety standards. Nevertheless, improper use of the Defensor PH28/PH28A may result in danger to the user or third parties and/or impairment of material assets. To ensure a safe, proper, and economical operation of the air purifier/air humidifier Defensor PH28/ PH28A, please observe and comply with all information and safety instructions contained in the present operating instructions as well as the instructions given in the manuals for the components used in the humidification system. If you have questions, which are not or insufficiently answered in this documentation, please contact your Defensor supplier. They will be glad to assist you. Notes on the operating instructions Limitation The subject of this operating instructions are the air purifiers/air humidifiers Defensor PH28 and PH28A. The various accessories are only described insofar as this is necessary for proper operation of the equipment. Further information on accessories can be obtained in the respective... - Page 5 The catchword “WARNING” used in conjunction with the general caution symbol designates safety and danger notes in this operating instructions that, if neglected, may cause to injury to persons. DANGER! The catchword “DANGER”” used in conjunction with the general caution symbol designates safety and danger notes in this operating instructions that, if neglected, may lead to severe injury or even death of persons. Safekeeping Please safeguard this operating instructions in a safe place, where it can be immediately accessed. If the equipment changes hands, the documentation should be passed on to the new operator. If the documentation gets mislaid, please contact your Defensor supplier. Language versions This operating instructions are available in various languages. Please contact your Defensor sup- plier for information. Copyright protection The present operating instructions are protected under the Copyright Act. Passing-on and reproduc- tion of the manual (or part thereof) as well as exploitation and communication of the contents are prohibited without written permission by the manufacturer. Violation of copyright terms is subject to legal prosecution and arises liability for indemnification. The manufacturer reserves the right to fully exploit commercial patent rights.
-
Page 6: For Your Safety
For your safety General Every person working with the Defensor PH28/PH28A must have read and understood the Operating instructions before carrying out any work. Knowing and understanding the contents of the Operating instructions is a basic requirement for protecting the personnel against any kind of danger, to prevent faulty operation, and to operate the unit safely and correctly. All ideograms, signs and markings applied to the unit must be observed and kept in readable state. Qualification of personnel All actions described in the present Operating instructions (installation, operation, maintenance, etc.) must be carried out only by well trained and sufficiently qualified personnel authorised by the owner. - Page 7 Lay out the mains cable so that it does not become a stumbling trap. Connect mains cable only to a mains socket with protection earth. Any extension cable used must be equipped with a protection earth too. Behaviour in case of danger If it is suspected that safe operation is no longer possible, then the Defensor PH28/PH28A should immediately be disconnected from the mains (disconnect mains connector) and secured against accidental power-up. This can be the case under the following circumstances: – if the Defensor PH28/PH28A is damaged – if the Defensor PH28/PH28A is no longer operating correctly...
-
Page 8: Product Overview
Product Overview Unit versions The Defensor PH28/PH28A air purifier/air humidifier is available in two basic versions: – PH28: version with integrated water tank – PH28A: version with inlet valve for the connection to the drinking water system Both versions are equipped as standard with a coarse dust filter and a flock-coated evaporator mat to operate the unit as a humidifier (winter time operation). Unit construction PH28 Air outlet grill Water tank carriage 2 Radial fan Type plate 3 Rotary humidification drum Silver ionisation electrodes Evaporator mat 1 2 Safety float... -
Page 9: Operating Panel
Base tub Fuse 6 Coarse dust filter (Option: Quattro filter) 3 pole mains cable Air intake grill Inlet valve Operating panel with display 1 7 Water filter Side cover Water supply connector Operating panel PH28 LC display Error indicator <Menu> key <On/Off> Arrow keys <Enter> key... -
Page 10: Identification Of The Unit
The fan (1) takes in the air from both sides via the coarse dust filter (2) or the Quattro filter, re- spectively. After passing the humidification drum, the purified air is led to the air outlet grill (5) and distributed in the room. The unit continuously measures the air humidity in the room with the integrated humidity sensor and compares it with the set reference humidity value. If the actual value (e.g. 40 %rh) is below the reference value (e.g. 45 %rh) the humidification drum (3) starts turning. The vaporizer mat is dipped into the base tub (4) and takes up water. The air passing through the humidification drum absorbs the humidity. The coarse dust filter retains dust particles up to 100 µm. If the Defensor PH28/PH28A is equipped with a Quattro filter it can retain dust particles up to 0.1 µm. In addition the activated charcoal layer in the Quattro filter removes unpleasant odour. The water level in the base tub is monitored by the level regulating valve in the water tank (Defensor PH28) or by the level controlled inlet valve (Defensor PH28A). -
Page 11: Options
Two silver ionisation electrodes prevent the formation of slime and microorganisms in the base tub and on the humidification drum. The ionizer electrodes are active as soon as the Defensor PH28/ PH28A is switched on. Operating modes The Defensor PH28/PH28A can be operated in the following operating modes: – Operation as air humidifier In the humidifier mode the ventilator and the humidification drum are running only, if the actual humidity value is below the set reference value. Note: if the actual humidity value remains below the reference value for a prolonged period of time, the fan must be switched to the next highest level. – Operation as air purifier (without humidification) In this operating mode the fan is running continuously. The humidification drum remains switched off. – Operation as air purifier/humidifier (Combined mode) In this operating mode the fan is running continuously. The humidification drum is only switched on if the actual humidity value is below the set reference value. Options Defensor PH28 Defensor PH28A Radio humidity sensor • • The radio humidity sensor can be used instead of the inte- grated humidity sensor. The maximum range of the radio humidity sensor in an open room is 25 m... -
Page 12: Accessories
(PH28A only) Standard delivery The air purifier/air humidifier Defensor PH28/PH28A is delivered in a cardboard box (W: 900 mm x H: 820 mm D: 490 mm, transport weight: 49 kg), ready for use. The standard delivery includes: – Air purifier/Air humidifier Defensor PH28 or PH28A, equipped with the “Winter” filter set (coarse dust filter and flock-coated evaporator mat) and the options as ordered. – Filling hose approx. 1,2 m (PH28 only) – Operating instructions (this document) The ordered accessories with operating instructions according chapter 3.7 are packed separately. -
Page 13: Commissioning
Unpacking the unit and checking the scope of delivery Unpacking the unit Open the packing and remove the unit and the accessories. Check the delivery for completeness (standard delivery, see chapter 3.8). Please contact your Defensor supplier in case something is lacking, they will be glad to send you the missing part without delay. Please check the equipment for damage. Please report any damage to your Defensor supplier and to the carriers, as required. Packaging The original packaging of the Defensor PH28/PH28A was design e d for optimum safety during trans- portation. Please preserve the original packing material in case you once have to return the unit for some reason. In case you wish to dispose of the packaging, observe the local regulations on waste disposal. Never dispose of the packaging to the environment. Transporting/storing the unit Transport The Defensor PH28/PH28A is equipped with built-in rollers for effortless displacement. If you have... -
Page 14: Choose Location
Choose location Please observe the following notes for the correct positioning of the Defensor PH28/PH28A: – Place the unit on a solid horizontal surface, if possible free-standing and freely accessible (observe minimal distances). – A mains socket should be located close to the unit. – To ensure the entire volume of air is fully recirculated, do not place the unit in recessed compart- ments, closed corridors, behind curtains, etc. – Do not place any objects on the unit (performance reduction). – Continuous direct sunlight is harmful for the unit and can affect the correct function of the inte- grated humidity sensor. Therefore do not expose the unit to continuous direct sunlight. – The unit must not be installed in hazardous loca tions and in rooms where water splashes may... -
Page 15: Connecting The Water Supply (Ph28A Only)
– Install the air outlet grills in a way that the moist air can leave the unit unhampered and make sure the air flow is not directed towards obstacles (pillars, furniture, etc.) or cold outer walls (risk of condensation). 4.4 Connecting the water supply (PH28A only) The water supply has to be connected to the unit by a qualified specialist according to the illustra- tion below. The installation data has to be maintained. The installation of a shut-off valve next to the PH28A is mandatory. Lay the connection hose carefully so that nobody will trip over it. WARNING! For the water installation the unit must be disconnected from the mains (pull the plug out of the socket) and secured against inadvertent reconnection. Important! The local regulations regarding the connection of units to drinking water systems must be observed. Filter valve (accessory “Z261”) Drinking water without additives: –... -
Page 16: Putting The Unit Into Operation
Putting the unit into operation Proceed as follows to put the Defensor PH28/PH28A into operation: • PH28: fill the water tank (see chapter 5.1) PH28A: open the shut-off valve in the water supply line. • Connect unit to the mains. CAUTION! Make sure the required supply voltage (see type plate) matches the local mains voltage, oth- erwise do not connect the Defensor PH28/PH28A to the mains! CAUTION! The Defensor PH28/PH28A must be connected only to grounded mains. Never connect the unit to an outlet without protective earthing. The Defensor PH28/PH28A is now ready for operation. The next chapter provides detailed informa- tion on the operation of the unit. -
Page 17: Operation
Operation 5.1 Filling the water tank (PH28 only) Switch off the Defensor PH28 and Press the snap and fold out the Pull out the handle and slide the wa- disconnect the unit from the mains water tank carriage. ter tank carriage out of the unit. (pull the mains plug out of the CAUTION! In order to avoid water socket). damage, immediatelly remove any spilled water on the floor and on the components of the unit. -
Page 18: Switching The Unit On And Off
• Press the <On/Off> key. The unit loads the settings that were active when the device was shut down last. Upon completion the operating display appears. The look of the operating display depends whether the Defensor PH28/PH28A is operated in “Normal operating mode” or in “Program mode”. Normal operating mode Program mode Status humidity sensor (active=^) -
Page 19: Menu Overview
Menu overview The following diagram shows the menu overview of the Defensor PH28/PH28A. After switching on, the unit is in the user level. Timer level User level In the user level you can define the set- In the timer level you can define and activate tings for the normal operating mode (see the program mode (see chapter 5.5). -
Page 20: Unit Settings (Normal Operating Mode)
30...90 %rH (see chapter 5.4.2) Old Value Note: The reference humidity value can be modified only if program mode is deactivated (see chap- ter 5.5). Setting range: 30...90 %rH Factory setting: 45 %rH Notes on setting: The optimum reference value depends on various factors. For apartments we recommend a value of 40 – 45 %rH. Note: After initial commissioning or replacement of the vaporizer mat the humidification perform- ance of the Defensor PH28/PH28A will be slightly reduced be c ause the evaporator mat takes a few days to become fully saturated with water. Maximum performance is available after one week, approximately. Furthermore, the humidification performance depends on the ambient tem p e r ature. -
Page 21: Setting The Fan Step
5.4.2 Setting the fan step (see chapter 5.4.1) modify Fan power Fan power Auto1 Auto1 confirm Fan power New Value cancel Fan power 1...4 or (see chapter 5.4.3) Old Value Auto1...Auto4 Note: The fan step can be modified only if program mode is deactivated (see chapter 5.5). Available settings: 1, 2, 3, 4 or Auto1, Auto2, Auto3, Auto4 Operating mode Fan step Behaviour... -
Page 22: Selecting The Operating Mode
(see chapter 5.4.4) Combi mode Old Value Note: The operating mode can be modified only if program mode is deactivated (see chapter 5.5). Available settings: Humidify (air humidification), Purify (air purification without humidification) and Combi mode (air purification with humidification) Factory setting: Humidify Notes on setting: The selection of the operating mode depends on whether the Defensor PH28/ PH28A shall be operated as humidifier, as purifier without humidification or as purifier with humidification. If the unit shall be operated as purifier without humidification the base tub and the water tank should be emptied. 5.4.4 Switching the buzzer on and off (see chapter 5.4.3) modify Buzzer Buzzer confirm Buzzer New Value cancel... -
Page 23: Calling Timer Level
5.4.5 Calling timer level (see chapter 5.4.4) Calling timer level Timer Timer Adjust Leaving timer level (see chapter 5.4.6) For detailed information regarding the settings in the timer level see chapter 5.5 “program opera- tion”. -
Page 24: Program Operation
Program operation The operation of the Defensor PH28/PH28A can be controlled via customisable operating programs. These programs allow to operate the unit at a preset time with the requested operating mode and fan step. This greatly facilitates the adaption of the Defensor PH28/PH28A to your particular require- ments (e.g. adjusted to the business hours and/or working time). Every program consists of a starting point (day of the week and hour), a reference humidity value, the operating mode and the desired fan step. Up to 2 starting points with individual programs may be set up per day. -
Page 25: Activating/Deactivating The Program Mode
Timer Timer confirm Timer New Value cancel Timer On/Off (see chapter 5.5.3) Old Value Available settings: On (program mode activated) or Off (program mode deactivated) Factory setting: Notes on setting: If program mode is activated the Defensor PH28/PH28A operates time-controlled with the operating programs (see chapter 4.3.4). If no programs or starting points are defined the unit operates with the settings of the normal operating mode. 5.4.3 Setting the current time (see chapter 5.5.2) modify Time Time Mo 12:00 Mo 12:00 confirm Time New Value... -
Page 26: Setting The Starting Points And The Operating Programs
5.5.4 Setting the starting points and the operating programs (see chapter 5.5.3) modify Monday 1 Monday 1 --.-- 45%rH BA0 --.-- 45%rH H0 confirm Monday 1 New Value see notes on setting cancel Monday 1 Monday 2 Old Value --.-- 45%rH BA0 Sunday 2 --.-- 45%rH BA0 (see chapter 5.5.2) -
Page 27: Locking/Unlocking The Keyboard
Locking/unlocking the keyboard The keyboard of the Defensor PH28/PH28A can be locked to prevent unauthorized access to the stored settings. • To lock the keyboard, press <ESC> key until (approx. 4 seconds) the Key lock adjacent message appears in the display. The keyboard is locked now. 50%rH Each time you press any key the adjacent message appears again. • To unlock the keyboard, press <ESC> key until (approx. 4 seconds) 30%rH the message “Key lock” disappears and the operating display is 50%rH shown. -
Page 28: 6 Maintenance
Maintenance Maintenance intervals The Defensor PH28/PH28A can only provide full humidification and purification performance if the unit is regularly cleaned and the wearing parts are replaced. The maintenance intervals mostly depend on the load of the ambient air, the water quality and the operating time. Please consider the intervals for cleaning and replacing the individual components in the table below as approximate values. If the room air is heavily contaminated the filters must be cleaned/replaced more often. If the water is very hard the parts in contact with water must be cleaned more often. every 2 weeks Warning 6 Filter change As soon as the message appears or at least every 6 month Note: If the silver ionisation electrodes are worn, slime will accumulate in the base tub and on the rotary humidification drum. In this case replace the silver ionisation elec t rodes. -
Page 29: 6.2 Maintenance Work
Pull out the handle and slide the disconnect the unit from the mains water tank cart. cart out of the unit. (pull the mains plug out of the CAUTION! In order to avoid water socket). Defensor PH28A only: damage, immediatelly remove any close the shut-off valve in the wa- spilled water on the floor and on the ter supply line. components of the unit. Tip the swivel plate upwards. -
Page 30: 6.2.2 Cleaning Work
6.2.2 Cleaning work Unit component What to clean and how to clean Base tub, Retaining net, • Wash parts with a lukewarm soap solution and rinse Rotary humidification drum well with tap water. • Occasionally remove scale coating with a household decalcify agent (observe safety notes in chapter 6.3). Finally rinse the parts well with tap water. - Page 31 Unit component What to clean and how to clean Coarse dust filters (Quattro filters) • Clean the coarse dust filters (Quattro filters) on the inner side with a vacuum cleaner (lowest power step). Note: As soon as the filter replacing message appears in the display (see error messages in chapter 7) replace coarse dust filters (Quattro filters) together with the evaporator mat evaporator mat. CAUTION! Make sure the filters do not get wet. Wet filters must be dry before reinstalling.
-
Page 32: Notes On Cleaning Agent
Notes on cleaning agent Only use cleaning agents stated in the table above. The use of disinfectants is only permitted if they do not leave any toxic residues. In any case the parts must be thoroughly rinsed with water after cleaning. DANGER! Household decalcify agent attacks the mucous membranes and the skin. Protect the hands, eyes and respiratory tracts therefore from contact with the agent and its vapour (wear gloves, goggles and work in a well ventilated room or outside). CAUTION! Do not use any solvents, aromatised or halogenised hydrocarbons or other aggressive substances, they may damage the unit components. -
Page 33: 6.4 Reassembly Of The Unit
Reassembly of the unit CAUTION! Before reassembling the Defensor PH28 check all components for possible damage. Do not reuse damaged parts but replace them before reassembling the unit Reassemble the unit as follows: Install the vaporizer mat and the Slide the humidification drum (with Place the coarse dust filter with retaining mesh in the humidifica- the internal geared wheel facing the blue side facing upwards (fac- tion drum. backwards) together with the base ing to the centre when mounted) or tub into the unit. -
Page 34: 6.5 Resetting The Filter Changing Message
Note: By pressing the <ESC> key the reset procedure can be can- celled without action. The filter changing message is then displayed again. Repair work Note: Except for the change of the fuse and the replacement of damaged parts revealed upon main- tenance, the customer must not carry out any repair work. Replacement of the unit fuse 1. Shut down the Defensor PH28 and disconnect the unit from the mains (pull the mains plug out of the socket). 2. Remove the water tank carriage (see chapter 5.1). 3. Loosen the screws of the terminal cover, then remove the cover. 4. Pull out the fuse holder. - Page 35 8. Insert and lock the water tank carriage (see chapter 5.1). 9. Reconnect the unit to the mains. Replacing the ionizer electrodes 1. Shut down the Defensor PH28 and disconnect the unit from the mains (pull the mains plug out of the socket). 2. Remove the water tank carriage (see chapter 5.1) and tip the swivel plate up.
-
Page 36: 10 7 Fault Elimination
Description Cause: If a new battery is inserted into the radio humidity sensor (op- Radio sensor K1 tion) and the radio channel of the radio humidity sensor does Install.? ESC/E not correspond to the active channel of the Defensor PH28/ PH28A a beep sounds briefly (if the buzzer is activated) and a new radio channel (e.g. K1) will be proposed. Action: Press the <Enter> key if you want to confirm the suggested channel. The Defensor PH28/PH28A switches to the new chan- nel and returns to the standard operating display. -
Page 37: Error Messages
(can not be again. Max Niveau switched off) Error message is displayed until reset. Cause: Maximum water level in the base tub exceeded. Safety switch has triggered. PH28: water tank not tight (tank cap not tight and/or level regulating valve in the tank cap blocked or defective). PH28A: inlet valve defective. Action/Remedy: PH28: Remove the tank immediately. Check/clean filler neck, tank cap and level regulating valve in tank cap (replace tank cap if necessary), then close tank cap correctly. PH28A: check/replace inlet valve. flashes buzzes... -
Page 38: What, If
What, if...? The following table lists symptoms of malfunction that may occur in daily operation of the Defensor PH28/PH28A, together with possible causes and suggested remedies. Symptom Cause Remedy Unit does not work, LC display Unit is not connected to the mains. Connect unit to the mains. remains dark Unit fuse blown. Have a service technician of your Defensor supplier check the unit. -
Page 39: Notes On Fault Elimination
Notes on fault elimination DANGER! For the elimination of faults set the Defensor PH28/PH28A out of operation, separate the unit from the mains and secure it against inadvertent power-up. The elimination of faults must be carried out only by qualified and well trained professionals. Malfunctions relating to the electrical installation must only be repaired by authorized personnel or by your Defensor representative’s service technician. Repair work and the replacement of faulty components must be carried out only by your Defensor representative’s service technician! -
Page 40: Taking Out Of Service/Disposal
Taking out of service/Disposal Taking out of service If the Defensor PH28/PH28A must be replaced or if the unit is not needed any more, proceed as follows: 1. Switch off the unit, separate it from the mains and secure it against inadvertent power-up. Close shut-off valve in the water supply line (PH28A only). 2. Have the unit (and all other system components, if necessary) unmounted by a qualified service technician. Disposal/Recycling At the end of the life-span the unit and its components must be returned to the manufacturer or brought to an authorised collection point for correct disposal and/or recycling according to the local regulations. In case of doubt please contact your local administration or your Defensor supplier. -
Page 41: Unit Specifications
Unit specifications Dimensions (B x H x T) 800 x 750 x 440 mm Weight (empty) 43 kg Operating weight 73 kg Water tank capacity 30 l Mains voltage 220…240VAC/50…60Hz oder 90…110VAC/50…60Hz Power consumption max. 128 W Capacity levels Air circulation rate 320 m 420 m 600 m 750 m Humidification capacity 1.7 l/h 2.1 l/h 2.4 l/h 2.7 l/h (at 25 °C and 20 %rh) -
Page 42: Appendix
Appendix 10.1 Wiring diagram PH28 Keypad&LED St. 1 (ws) 122 V St. 2 (rt) 146 V 172 V St. 3 (gu) St. 4 (sw) 230 V C2 (bn) N (bl) C1 (ge) PE (gn/ge) P (bl) N (sw) PE (gn/ge) 1.25 AT... -
Page 43: 10.2 Spare Parts List Ph28
10.2 Spare parts list PH28... - Page 44 Pos. Art.-No. Spare parts designation 2560541 Outlet grill 2561710 Outlet grill special color (RAL or NCS code according type plate) 1109392 Fan cpl. 2560927 Keyboard foil 2560916 Synchronous motor cpl. 2533163 Tothed belt pulley for motor 1103725 Toothed belt 1115515 Display LCD 2560896 Control PCB 1103722 Transformer cpl.
-
Page 45: 10.3 Spare Parts List Ph28A
10.3 Spare parts list PH28A 60 62... - Page 46 Pos. Art.-No. Spare parts designation 2560541 Outlet grill 2561710 Outlet grill special color (RAL or NCS code according type plate) 1109392 Fan cpl. 2560927 Keyboard foil 2560916 Synchronous motor cpl. 2533163 Tothed belt pulley for motor 1103725 Toothed belt 1115515 Display LCD 2560896 Control PCB 1103722 Transformer cpl.
- Page 47 © Walter Meier (climate international) Ltd. 2011, printed in switzerland technical modifications reserved...
- Page 48 cOnsuLting, saLes anD service: solutions for indoor climate reg.no. 40002-2 Manufacturer: Walter Meier (climate international) Ltd. talstr. 35-37, p.O. Box, cH-8808 pfäffikon (switzerland) phone +41 55 416 61 11, Fax +41 55 416 62 62 www.waltermeier.com, international.climate@waltermeier.com...
