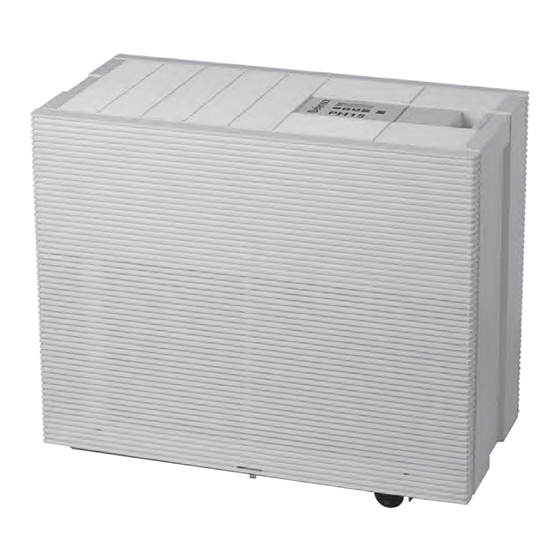

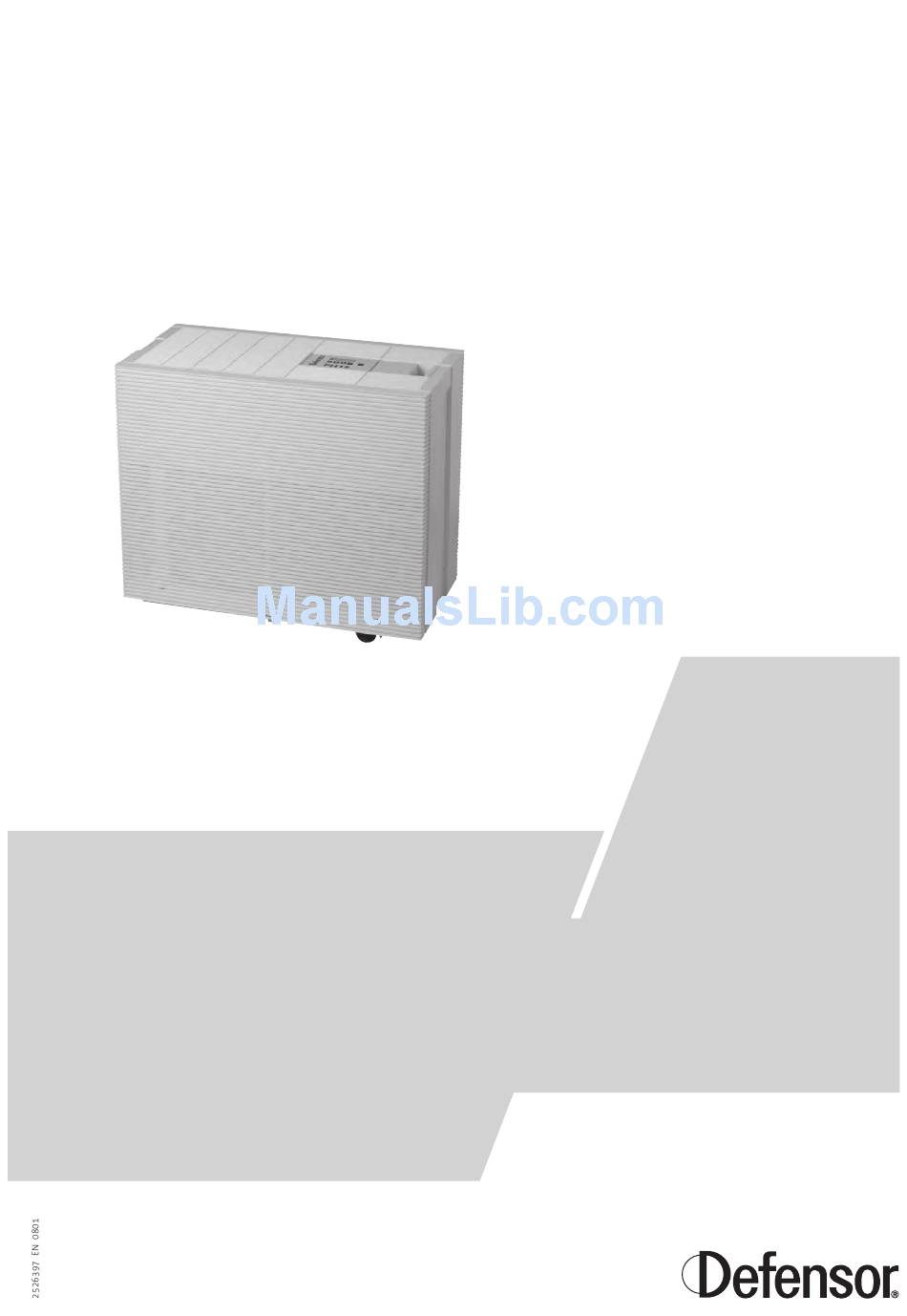

- Page 1 Defensor PH15/PH15A Adiabatic Humidifiers OPErAtiNg iNstructiONs...
-
Page 3: Table Of Contents
Taking out of service 4.2 Transporting/storing the unit 8.2 Disposal/Recycling 4.3 Choose location Unit specifications 4.4 Connecting the water supply (PH15A only) 4.5 Putting the unit into operation Appendix 10.1 Wiring diagram Operation 10.2 Spare parts list PH15 5.1 Filling the water tank (PH15 only) 10.3 Spare parts list PH15A 5.2 Switching the unit on and off 5.3 Menu overview 5.4 Unit settings (normal operating mode) 5.4.1 Setting the desired humidity value 5.4.2 Setting the fan step 5.4.3 Selecting the operating mode (Humidifying mode) 5.4.4 Switching the buzzer on and off 5.4.5 Calling timer level 5.4.6 Selecting the dialogue language 5.5... -
Page 4: Introduction
To ensure a safe, proper, and economical operation of the air purifier/air humidifier Defensor PH15/ PH15A, please observe and comply with all information and safety instructions contained in the present operating instructions as well as the instructions given in the manuals for the components used in the humidification system. - Page 5 If the equipment changes hands, the documentation should be passed on to the new operator. If the documentation gets mislaid, please contact your Defensor supplier. Language versions This operating instructions are available in various languages. Please contact your Defensor supplier for information. Copyright protection The present operating instructions are protected under the Copyright Act.
-
Page 6: For Your Safety
For safety and warranty reasons any action beyond the scope of this manuals must be carried out only by qualified personnel authorised by your Defensor supplier. It is assumed that all persons working with the Defensor PH15/PH15A are familiar and comply with the appropriate regulations on work safety and the prevention of accidents. - Page 7 Behaviour in case of danger If it is suspected that safe operation is no longer possible, then the Defensor PH15/PH15A should immediately be disconnected from the mains (disconnect mains connector) and secured against accidental power-up.
-
Page 8: Product Overview
Product Overview Unit versions The Defensor PH15/PH15A air purifier/air humidifier is available in two basic versions: – PH15: version with integrated water tank – PH15A: version with inlet valve for the connection to the drinking water system Both versions are equipped as standard with a coarse dust filter and evaporator mat to operate the unit as a humidifier (winter time operation). -
Page 9: Operating Panel
PH15A Air inlet lattice Carriage Coarse filter Operating panel Radial fan Type plate Centrifuge 3 pole mains cable Mobile base with cover Silver ionisation electrodes (option) Flock-coated evaporator mat or activated Level switch carbon evaporator mat Safety switch Droplet trap Water filter Coarse dust filter or Quattro filter Inlet valve... -
Page 10: Identification Of The Unit
Quattro filter it can retain dust particles up to 0.1 µm. In addition the activated charcoal layer in the Quattro filter removes unpleasant odour. The water level in the base tub is monitored by the level regulating valve in the water tank (Defensor PH15) or by the level controlled inlet valve (Defensor PH15A). -
Page 11: Options
Operating modes The Defensor PH15/PH15A can be operated in the following operating modes: – Operation as air humidifier In the humidifier mode the ventilator and the centrifuge are running only, if the actual humidity value is below the set reference value. -
Page 12: Accessories
(PH15A only) Standard delivery The air purifier/air humidifier Defensor PH15/PH15A is delivered in a cardboard box (B: 1 mm x H: mm T: 5 mm, transport weight: 2 kg), ready for use. The standard delivery includes: – Air purifier/Air humidifier Defensor PH15 or PH15A, equipped with the “Winter” filter set (coarse dust filter, flock-coated evaporator mat) and the options as ordered. -
Page 13: Commissioning
(standard delivery, see chapter 3.). Please contact your Defensor supplier in case something is lacking, they will be glad to send you the missing part without delay. Please check the equipment for damage. Please report any damage to your Defensor supplier and to the carriers, as required. -
Page 14: Choose Location
Choose location Please observe the following notes for the correct positioning of the Defensor PH15/PH15A: – Place the unit on a solid horizontal surface, if possible free-standing and freely accessible (observe minimal distances). – A mains socket should be located close to the unit. -
Page 15: Connecting The Water Supply (Ph15A Only)
After locating the unit: • Lock the wheels of the carriage unlock lock • Completely unwind the mains cable (at the point of the delivery the mains cable is winded up in the unit) and take it out of the unit as shown below. Connecting the water supply (PH15A only) The water supply has to be connected to the unit by a qualified specialist according to the illustration below. -
Page 16: Putting The Unit Into Operation
The Defensor PH15/PH15A must be connected only to grounded mains. Never CAUTION! connect the unit to an outlet without protective earthing. The Defensor PH15/PH15A is now ready for operation. The next chapter provides detailed informa- tion on the operation of the unit. -
Page 17: Operation
Operation Filling the water tank (PH15 only) To maintain the monitoring of the unit during filling, neither switch off the unit nor disconnect it from the mains! If the lock is not released (step 3), the carriage remains Place an absorbent cloth below the unit. -
Page 18: Switching The Unit On And Off
The unit loads the settings that were active when the device was shut down last. Upon completion the operating display appears. The look of the operating display depends whether the Defensor PH15/PH15A is operated in “Normal operating mode” or in “Program mode” . -
Page 19: Menu Overview
Menu overview The following diagram shows the menu overview of the Defensor PH15/PH15A. After switching on, the unit is in the user level. Timer level User level In the user level you can define the set- In the timer level you can define and activate tings for the normal operating mode (see the program mode (see chapter 5.5). -
Page 20: Unit Settings (Normal Operating Mode)
Note: After initial commissioning or replacement of the vaporizer mat the humidification perform- ance of the Defensor PH15/PH15A will be slightly reduced because the evaporator mat takes a few days to become fully saturated with water. Maximum performance is available after one week, approximately. -
Page 21: Setting The Fan Step
5.4.2 Setting the fan step (see chapter 5.4.1) modify Fan power Fan power confirm Fan power New Value cancel Fan power 1, 2, 3, 4 or A (see chapter 5.4.3) Old Value Note: The fan step can be modified only if program mode is deactivated (see chapter 5.5). Available settings: 1, 2, 3, or A (automatic operation) Factory setting: Notes on setting:... -
Page 22: Selecting The Operating Mode (Humidifying Mode)
Factory setting: Humidify Notes on setting: The selection of the humidifying mode depends on whether the Defensor PH15/PH15A shall be operated as humidifier, as purifier with humidification or as purifier without humidification. If the unit shall be operated as purifier without humidification the base tub and the water tank should be emptied. -
Page 23: Calling Timer Level
5.4.5 Calling timer level (see chapter 5.4.4) Calling timer level Timer Timer Adjust Leaving timer level (see chapter 5.4.6) For detailed information regarding the settings in the timer level see chapter 5.5 “program opera- tion” . 5.4.6 Selecting the dialogue language (see chapter 5.4.5) modify Language Language english english confirm Language New Value cancel... -
Page 24: Program Operation
These programs allow to operate the unit at a preset time with the requested operating mode and fan step. This greatly facilitates the adaption of the Defensor PH15/PH15A to your particular require- ments (e.g. adjusted to the business hours and/or working time). -
Page 25: Activating/Deactivating The Program Mode
After calling the modification mode set the current day of the week, the current hour and the current minute. Confirm each setting with the <Enter> key. Note: If the Defensor PH15/PH15A has lost the time settings due to power failure, the time indication (--:--) in the operating display flashes. -
Page 26: Setting The Starting Points And The Operating Programs
5.5.4 Setting the starting points and the operating programs (see chapter 5.5.3) modify Monday 1 Monday 1 --.-- 45%rH H0 --.-- 45%rH H0 confirm Monday 1 New Value see notes on setting cancel Monday 1 Monday 2 Old Value --.-- 45%rH H0 Sunday 2 --.-- 45%rH H0 (see chapter 5.5.2) First select the desired day of the week or the starting point, respectively (Monday 1, Monday 2 .. -
Page 27: Locking/Unlocking The Keyboard
Locking/unlocking the keyboard The keyboard of the Defensor PH15/PH15A can be locked to prevent unauthorized access to the stored settings. • To lock the keyboard, press <ESC> key until (approx. seconds) the PH15 adjacent message appears in the display. The keyboard is locked now. -
Page 28: Maintenance
Maintenance Maintenance intervals The Defensor PH15/PH15A can only provide full humidification and purification performance if the unit is regularly cleaned and the wearing parts are replaced. The maintenance intervals mostly depend on the load of the ambient air, the water quality and the operating time. -
Page 29: Maintenance Work
Maintenance work 6.2.1 Disassembling the unit Disconnect unit from the mains Place an absorbent cloth below the unit. Press in the lock latches on both sides of the unit. -
Page 30: Cleaning Work
6.2.2 Cleaning work Unit component What to clean and how to clean Centrifuge • Wash parts with a lukewarm soap solution and rinse Droplet trap well with tap water. Additionally clean the centrifuge Mat holder inside with the brush supplied. Base tub cover •... - Page 31 Unit component What to clean and how to clean Water filter • Clean water filter with a brush, then rinse filter well with (PH15A only) tap water. • Carefully wipe the level switch and the safety switch Level switch Safety switch with a damp cloth.
-
Page 32: Notes On Cleaning Agent
Notes on cleaning agent Only use cleaning agents stated in the table above. The use of disinfectants is only permitted if they do not leave any toxic residues. In any case the parts must be thoroughly rinsed with water after cleaning. Household decalcify agent attacks the mucous membranes and the skin. -
Page 33: Reassembly Of The Unit
Reassembly of the unit After the maintenance reassemble the unit as follows: The centrifuge must catch in the centering! Lower carefully After positioning of the upper part of the unit close the lock latches on both sides of the unit... -
Page 34: Resetting The Filter Changing Message
Resetting the filter changing message After the replacement of the filters and the evaporator mat the filter changing message can be reset as follows: 1. Switch on the unit (the filter changing message appears). Warning 6 Filter change 2. Press the <ESC> and <Enter> keys simultaneously until the opposite Filter change message appears. -
Page 35: Fault Elimination
Radio hygro. K1 and the radio channel of the humidistat does not correspond to Install.? ESC/E the active channel of the Defensor PH15/PH15A a beep sounds briefly (if the buzzer is activated) and a new radio channel (e.g. K1) will be proposed. -
Page 36: Error Messages
Cause: Maximum water level in the base tub exceeded. Safety switch has triggered. PH15: water tank not tight (tank cap not tight and/or level regulating valve in the tank cap blocked or defective). PH15A: inlet valve defective. Action/Remedy: PH15: Remove the tank immediately. Check/clean filler neck, tank cap and level regulating valve in tank cap (replace tank cap if necessary), then close tank cap correctly. -
Page 37: What, If
What, if...? The following table lists symptoms of malfunction that may occur in daily operation of the Defensor PH15/PH15A, together with possible causes and suggested remedies. Symptom Cause Remedy Unit does not work, LC display Unit is not connected to the Connect unit to the mains. -
Page 38: Notes On Fault Elimination
The elimination of faults must be carried out only by qualified and well trained professionals. Malfunctions relating to the electrical installation must only be repaired by authorized personnel or by your Defensor representative’s service technician. Repair work and the replacement of faulty components must be carried out only by your Defensor representative’s service technician! -
Page 39: Taking Out Of Service/Disposal
Taking out of service/Disposal Taking out of service If the Defensor PH15/PH15A must be replaced or if the unit is not needed any more, proceed as follows: 1. Switch off the unit, separate it from the mains and secure it against inadvertent power-up. Close shut-off valve in the water supply line (PH15A only). -
Page 40: Unit Specifications
Unit specifications Dimensions (B x H x T) 30 x 10 x 30 mm Weight (empty) 25 kg Water tank capacity 20 l Mains voltage 220…20 VAC/50…0 Hz or 90…110 VAC/50…0 Hz Power consumption max. 2 Watt Capacity levels Air circulation rate 155 m m 195 m m 20 m m... -
Page 41: Appendix
Appendix 10.1 Wiring diagram Keypad&LED Enter I / 0 St. 1 (ws) St. 2 (rt) St. 3 (gu) St. 4 (sw) C2 (bn) C1 (ge) N (bl) PE (gn/ge) C (bn) P (bl) N (sw) PE (gn/ge) 1.25 AT 230 VAC 5 4 3 2 1 1 2 3 110V... -
Page 42: Spare Parts List Ph15
10.2 Spare parts list PH15... - Page 43 Safety switch 110 Impeller 111535 Electrodes ionisation 252529 Impeller motor 252520 Fan cpl. 252521 Control panel Defensor 1115515 Display LCD 252530 Control PCB 110319 Humidity sensor cpl. 1113552 Gasket for tank cap with integrated level regulating valve 25259 Radio humidistat...
-
Page 44: Spare Parts List Ph15A
10.3 Spare parts list PH15A... - Page 45 Level switch 11035 Safety switch 110 Impeller 111535 Electrodes ionisation 252529 Impeller motor 252520 Fan cpl. 252521 Control panel Defensor 1115515 Display LCD 252530 Control PCB 110319 Humidity sensor cpl. 25259 Radio humidistat 2525353 Reiceiver module radio humidistat 2525305 Transformer 100 V...
- Page 46 Notes...
- Page 47 © Walter Meier (climate international) Ltd. 2007, Printed in switzerland technical modifications reserved...
- Page 48 01.2016 Condair GmbH. Irrtum und technische Änderungen vorbehalten. Der Inhalt entrpicht dem Stand der Drucklegung. Bei Fragen zur Dokumentation wenden Sie sich bitte an den Hauptsitz in Deutschland. Condair GmbH Regionalcenter Süd Hauptsitz Condair GmbH Parkring 3 D-85748 Garching-Hochbrück Tel. +49 (0) 89 / 20 70 08-0 Fax +49 (0) 89 / 20 70 08-140 Regionalcenter Südwest Zettachring 6...
