Download this manual See also: Installation, Operation & Maintenance Manual

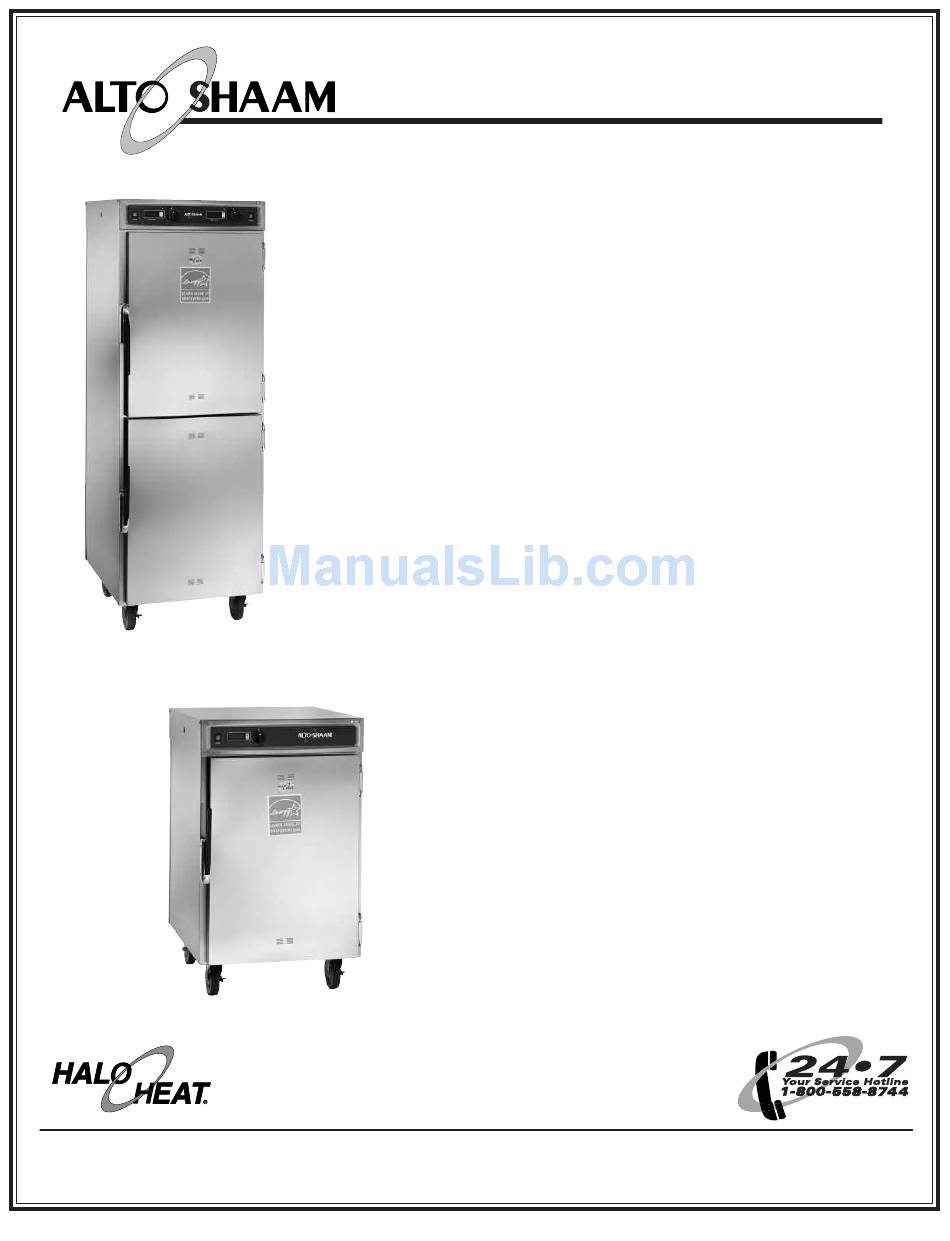

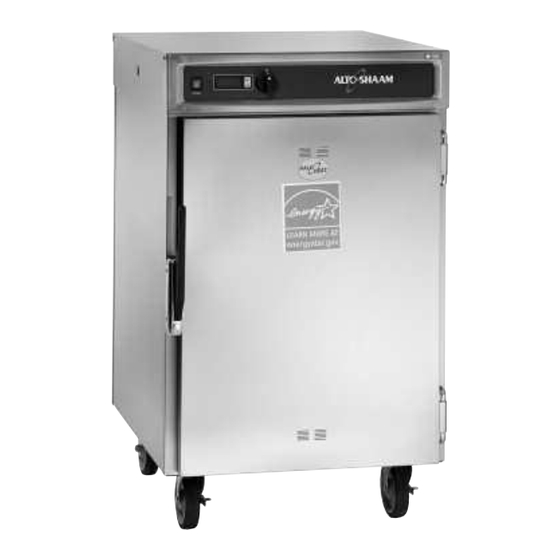

H o l d i n g C a b i n e t
®
E l e c t ro n i c o r M a n u a l C o n t ro l
1200-UP
Models:
1200-S
1200-UP
1200-S
• INSTALLATION
• OPERATION
• MAINTENANCE
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: 262.251.3800 • 800.558.8744
/
FAX: 262.251.7067 • 800.329.8744
.
.
.
USA
CANADA
U
S
A
ONLY
www.alto-shaam.com
M N - 2 8 6 8 0 • 1 0 / 0 8
.
.
.
P R I N T E D I N U
S
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Halo Heat 1200-S and is the answer not in the manual?

Questions and answers

Related Manuals for Alto-Shaam Halo Heat 1200-S

Summary of Contents for Alto-Shaam Halo Heat 1200-S

  • Page 1 H o l d i n g C a b i n e t ® E l e c t ro n i c o r M a n u a l C o n t ro l 1200-UP Models: 1200-S 1200-UP 1200-S • INSTALLATION • OPERATION •...
  • Page 2 Additional model. Contact the Alto-Shaam service manuals are available from the Alto-Shaam department if you have any questions concerning service department. installation, operation, or maintenance.

  • Page 3: Safety Procedures And Precautions

    Used to notify personnel of N O T E : installation, operation, or maintenance information that is important but not hazard related. 1200-S, 1200-UP • INSTALLATION OPERATION SERVICE MANUAL...

  • Page 4: Installation

    Clock may require recharging. Plug the 5. This appliance must be kept free and clear of unit into the proper receptacle for a any obstructions blocking access for minimum of 24 hours. maintenance or service. 1200-S, 1200-UP • INSTALLATION OPERATION SERVICE MANUAL...

  • Page 5: W E I G H T S A N D C A P A C I T I E S

    *74-9/16" (1894mm) - with optional 6" (152mm) legs W E I G H T S A N D C A P A C I T I E S PER COMPARTMENT 192 lbs (87kg) WEIGHT - 1200-S PRODUCT\PAN CAPACITY MAXIMUM : 120...
  • Page 6 Side Rack Model AVAILABLE AVAILABLE Stacking Hardware 5009000 Universal Angle Pan Slides, Chrome SR-24447 SR-24447 Universal Angle Pan Slides, Stainless Steel SR-24762 SR-24762 Water Reservoir, Pan 1775 1775 Water Reservoir, Cover 1774 1774 1200-S, 1200-UP • INSTALLATION OPERATION SERVICE MANUAL...
  • Page 7 Side Rack SR-25271 U T I O N N G E R TO PREVENT PERSONAL INJURY, DISCONNECT UNIT FROM USE CAUTION WHEN MOVING OR POWER SOURCE BEFORE LEVELING THIS APPLIANCE. CLE NING OR SERVICING. 1200-S, 1200-UP • INSTALLATION OPERATION SERVICE MANUAL...

  • Page 8: Restraint Requirements -Mobile Equipment

    18" (457mm) from the floor. A flexible connector is not supplied by nor is it available from the factory. 1200-S, 1200-UP • INSTALLATION OPERATION SERVICE MANUAL...
  • Page 9 NO PLUG NO PLUG at 240 at 240 16.7 4.0 at 230 at 230 8.0 1.85 7/7, 7/7, 1000W 2000W at 230 at 230 16.0 3.67 220-230 220-230 2000W V PLUG 4000W V PLUG 1200-S, 1200-UP • INSTALLATION OPERATION SERVICE MANUAL...

  • Page 10: Before Initial Use

    Through even heat application, BECOME EXTREMELY HOT WHEN IN the quality of food products is maintained up to OPERATION. TO AVOID BURNS, several hours or more. ALWAYS USE HAND PROTECTION WHEN OPERATING THIS APPLIANCE. 1200-S, 1200-UP • INSTALLATION OPERATION SERVICE MANUAL...

  • Page 11: Operation

    . BE THE FINAL SETTING. Temp Display Temperature Digital Light Control Knob Display Temperature On/Off Display Power Button Switch 1200-S, 1200-UP • . 10 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 12 POWER ON INDICATOR LIGHT POWER ON INDICATOR LIGHT OFF KEY OFF KEY HEAT INDICATOR HEAT INDICATOR LED DISPLAY LED DISPLAY LOCK INDICATOR LOCK INDICATOR DOWN DOWN ARROW KEYS ARROW KEYS SHELF TIMER KEYS 1200-S, 1200-UP • . 11 INSTALLATION OPERATION SERVICE MANUAL...

  • Page 13: Control Lock

    Before proper temperature range of 140° to 160°F loading the cabinet with food, use a food (60° to 71°C). thermometer to make certain all products are at 1200-S, 1200-UP • . 12 INSTALLATION OPERATION SERVICE MANUAL...

  • Page 14: Heat Recovery

    With the addition of a pan of water, warming cabinets can be used for proofing dough. A water reservoir pan (#1775) and pan cover (#1774) is available as an option from Alto-Shaam. 1. Remove dough from retarder or refrigerator and allow covered product to set up at room temperature.
  • Page 15 Using the timer, press the On/Off key to turn power failure. To stop the blinking, simply ON unit. Power Indicator Light will depress On/Off Key. The memory will not be illuminate. impaired. 1200-S, 1200-UP • . 14 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 16 1 and 10, use a metal-stemmed indicating thermometer to measure the internal temperature of the product(s) being held. Adjust the thermostat setting to achieve the best overall setting based on internal product temperature. 1200-S, 1200-UP • . 15 INSTALLATION OPERATION SERVICE MANUAL...

  • Page 17: Care And Cleaning

    THE USE OF ABRASIVE CLEANING COMPOUNDS, CHLORIDE BASED CLEANERS, OR CLEANERS CONTAINING QUATERNARY SALTS. NEVER USE HYDROCHLORIC ACID (MURIATIC ACID) ON STAINLESS STEEL. NEVER USE WIRE BRUSHES, METAL SCOURING PADS OR SCRAPERS. 1200-S, 1200-UP • . 16 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 18 TO CLEAN. DISCONNECT UNIT FROM SEVERE D M GE OR POWER SOURCE BEFORE ELECTRIC L H Z RD COULD RESULT. CLE NING OR SERVICING. WARRANTY BECOMES VOID IF APPLIANCE IS FLOODED 1200-S, 1200-UP • . 17 INSTALLATION OPERATION SERVICE MANUAL...

  • Page 19: Internal Food Product Temperatures

    SAFE ZONE 36°F TO 40°F (2°C TO 4°C) FROZEN FOODS DANGER ZONE ABOVE 32°F (ABOVE 0°C) CRITICAL ZONE 0° TO 32°F (-18° TO 0°C) SAFE ZONE 0°F or below (-18°C or below) 1200-S, 1200-UP • . 18 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 20 Ino p erative Unit E-83 Stuck button on control panel. Check buttons. E-90 Button shorted If control is still inoperative, contact Alto-Shaam Service Department. Ino p erative Co ntro l Contact Alto-Shaam Service Department. E-91 Input failure N G E R...
  • Page 21 Service Agent: ® Check the power flow to the unit. Plug in outlet? Circuit breaker switch at back of unit turned on? Do not attempt to repair or service the holding cabinet beyond this point. Contact Alto-Shaam for the ®...
  • Page 22 S E R V I C E 1200-S - MANUAL CONTROL Bonnet Assembly 5008316 Control Panel Control Panel Bezel Overlay PE-28280 PE-28451 Door Hinge HG-2015 Casing, Side 16056 16041 Door Assembly 55018 Universal Pan Slide SR-24447 CHROME SR-24762 Door Handle...
  • Page 23 PE-28367 5008316 Door Hinge HG-2015 Door Assembly 55018 Casing, Side 16055 16033 Universal Pan Slide SR-24447 SR-24762 (230V) Side Rail Door Handle 16046 HD-27080 Door Gasket GS-23796 Caster Package, 5" 4007 1200-S, 1200-UP • . 22 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 24 THIS SECTION IS PROVIDED FOR THE ASSISTANCE DISCONNECT UNIT FROM OF QUALIFIED SERVICE TECHNICIANS ONLY AND POWER SOURCE BEFORE IS NOT INTENDED FOR USE BY UNTRAINED OR CLE NING OR SERVICING. UNAUTHORIZED SERVICE PERSONNEL. 1200-S, 1200-UP • . 23 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 25 THIS SECTION IS PROVIDED FOR THE ASSISTANCE DISCONNECT UNIT FROM OF QUALIFIED SERVICE TECHNICIANS ONLY AND POWER SOURCE BEFORE IS NOT INTENDED FOR USE BY UNTRAINED OR CLE NING OR SERVICING. UNAUTHORIZED SERVICE PERSONNEL. 1200-S, 1200-UP • . 24 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 26 S E R V I C E 1200-UP with Manual Control - 120V Unit Shown 1200-UP with Manual Control - 208-240V Unit Shown 1200-S, 1200-UP • . 25 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 27 S E R V I C E 1200-UP with Manual Control - 230V Unit Shown 1200-S with Manual Control - 120V Unit Shown 1200-S 208-240V 230V DRAWINGS NOT AVAILABLE AT THIS TIME 1200-S, 1200-UP • . 26 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 28 27. Tape, 1/2" Foam TA-25621 TA-25621 28. Terminal Block BK-3019 BK-3019 29. Terminal Block, Porcelain BK-33546 —— 30. Terminal Strip TM-33560 TM-33560 31. Thermostat, Hi-limit TT-33476 TT-33476 32. Washer, #8 Ext Lock WS-2333 WS-2333 1200-S, 1200-UP • . 27 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 29 S E R V I C E 1200-UP with Electronic Control - 230V Unit Shown 1200-S with Electronic Control - 230V Unit Shown 1200-S, 1200-UP • . 28 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 30 1200-S, 1200-UP • . 29 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 31 1200-S, 1200-UP • . 30 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 32 1200-S, 1200-UP • . 31 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 33 1200-S, 1200-UP • . 32 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 34 1200-S, 1200-UP • . 33 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 35 1200-S, 1200-UP • . 34 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 36 1200-S, 1200-UP • . 35 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 37 1200-S, 1200-UP • . 36 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 38 1200-S, 1200-UP • . 37 INSTALLATION OPERATION SERVICE MANUAL...
  • Page 39 1200-S, 1200-UP • . 38 INSTALLATION OPERATION SERVICE MANUAL...

  • Page 40: Transportation Damage And Claims

    ALT O- S HAAM, IN C . RECORD THE MODEL AND SERIAL NUMBER OF THE APPLIANCE FOR EASY REFERENCE. ALWAYS REFER TO BOTH MODEL AND SERIAL NUMBER IN ANY CONTACT WITH ALTO-SHAAM REGARDING THIS APPLIANCE. Model: Date Installed:...
