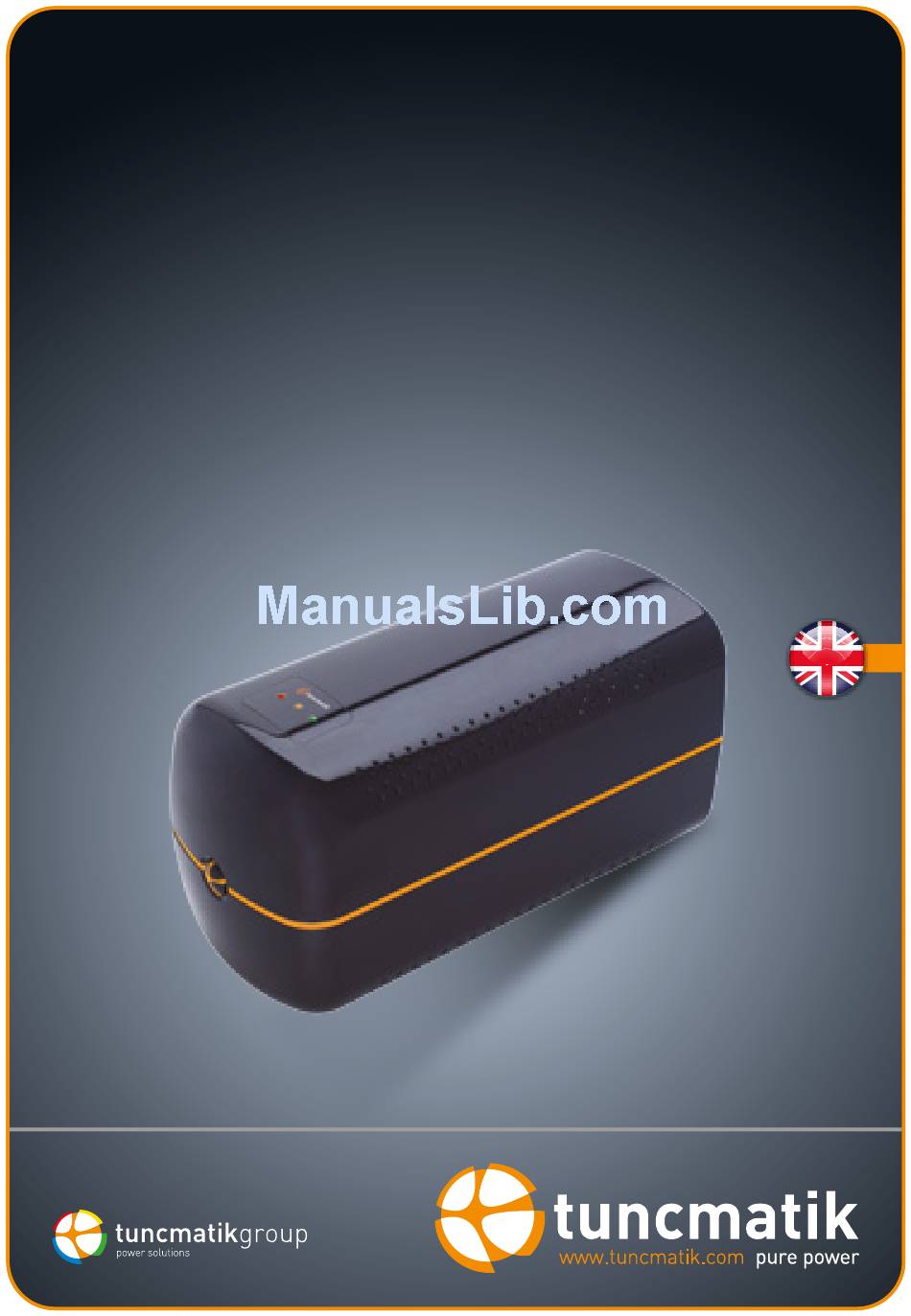

- Page 1 DIGITECH ECO 1500/2000 VA UNINTERRUPTIBLE POWER SUPPLY USER MANUAL...
- Page 2 INTRODUCTION Front Panel Back Panel 1. On/Off Button 2. AC Input 3. Output Receptacles 4. USB Communication Port 5. Fax Modem Protection 6. AC Mode: Green Lighting 7. Battery Mode: Orange Flashing 8. Fault: Red Lighting...
- Page 3 This UPS is specially designed for Personal Computers with multi-functions. lts light weight, compact design perfect fits to the limited working environment. The line of UPS is equipped with boost and buck AVR to stabilize input voltage range. lt is also built-in with DC start function.
- Page 4 3. Placement Install the UPS unit in any protected environment that provides adequate airflow around the unit, and is free from excessive dust, corrosive fumes and conductive contaminants. Do not operate your UPS in an environ- ment where the ambient temperature or humidity is high. On the other hand, place the UPS away from the monitor at...
- Page 5 SAFETY - WARNING This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs. Internal battery voltage is 12Vdc. Sealed, lead-acid, 6 cells battery. Connection to any other type of receptacle other than a two-pole, three-wire grounded receptacle may result in shock hazard as well as violate local electrical codes.
-
Page 6: Trouble Shooting
TROUBLE SHOOTING Use the table below to solve m nor problems. Symptom Possible Cause Remedy No LED display on 1. Battery weak. 1. Charge battery up to 8 hours. the front panel. 2. Battery defect. 2. Replace with the same type of battery. 3. -
Page 7: Technical Specifications
392 x 177 x 211 Dimensions D x W x H (mm) 10,7 11,45 Net weight (kg) ENVIRONMENT 0-40˚C 0-90% (non-condensing) Humidity <40 dB Noise level tuncmatik products offer energy savings of up to 30%, helping you consume less of natural resources.
