Summary of Contents for Tuncmatik DIGITECH PRO 650 VA

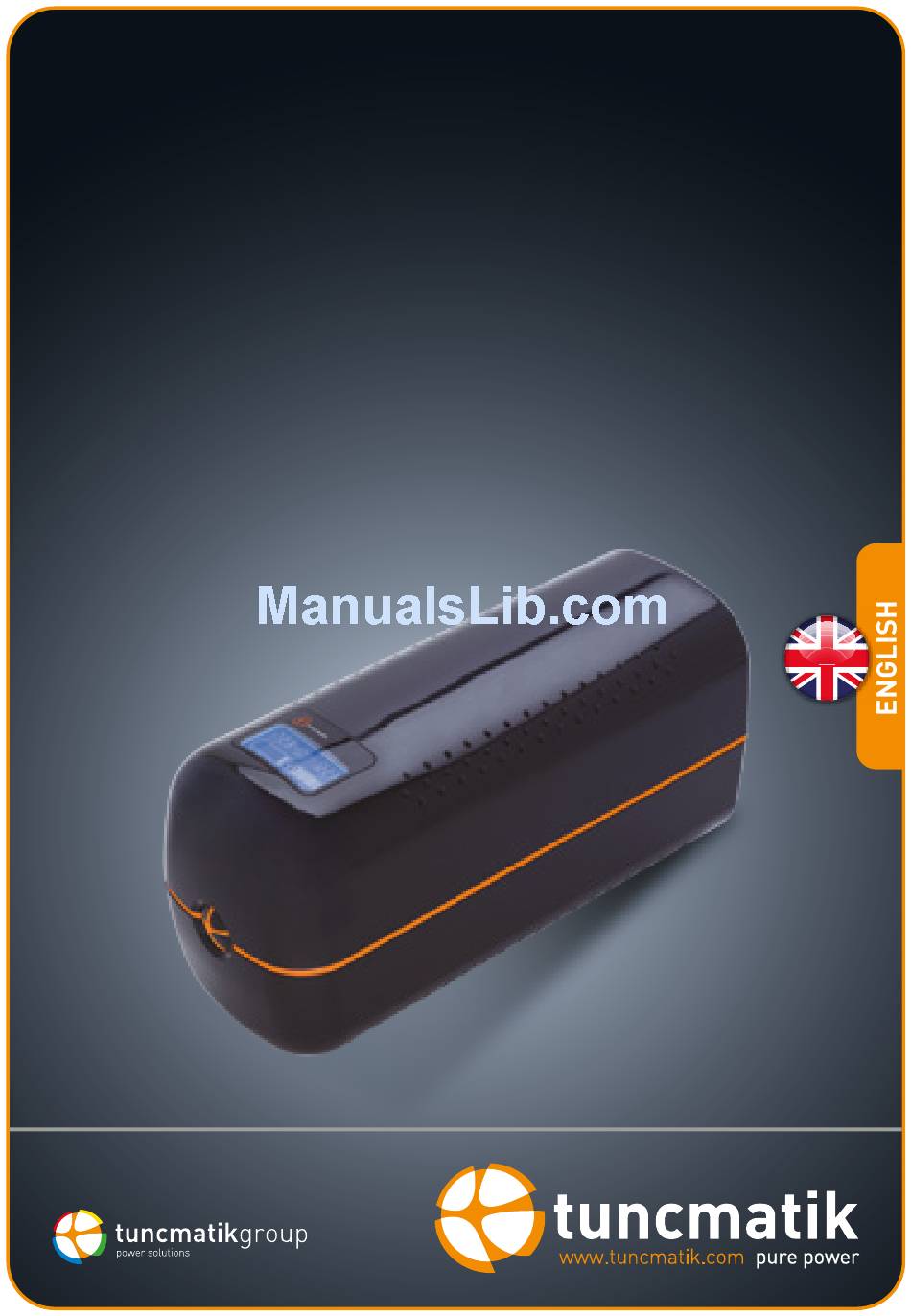

- Page 1 DIGITECH PRO 650/850 VA UNINTERRUPTIBLE POWER SUPPLY USER MANUAL...
-
Page 2: Product Overview
Product Overview 650 VA / 850 VA Front View Back View Power Switch AC Input LCD Display USB Communication Port RJ 11/45 Protection Port Output Receptacles... -
Page 3: Lcd Display
LCD Display Battery Mode Line Mode Input Output Voltage Voltage Load Battery Level Level Over Battery Load Fault Product Features Modern, stylish concept Today the IT users not only want functional products, but also nice looking products which they will enjoy to see every day. Digitech Pro is a unique design and has a display which looks up, if you think 90% of the UPS work under your table on the floor;... - Page 4 Buck and boost AVR function Digitech Pro acts as a voltage stabilizer as well, if the line voltage is too high it will reduce it to the normal limits or if there is a brownout, Digitech Pro UPS will increase the voltage level to protect it’s connected equipment.
-
Page 5: Installation And Initial Startup
Installation and initial startup • Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. • Install the UPS in a protected area that is free of excessive dust and has adequate air flow. • Do NOT operate the UPS where the temperature and humidity is outside the specific limits. -
Page 6: Safety Warning
SAFETY - WARNING This UPS utilizes voltages that may be hazardous. supply from battery. The battery supply should be Do not attempt to disassemble the unit. The unit therefore disconnected in the plus and minus pole contains no user serviceable parts. Only factory of the battery when maintenance or service work service personnel may perform repairs. -
Page 7: Troubleshooting
TROUBLE SHOOTING Use the table below to solve m nor problems. Possible Cause Problem Solutions No LED display on Low battery Charge the UPS at least 6 hours the front panel Battery fault Replace the battery with the same type of battery (Please see Safety-Warning page) The UPS is not turned on Press the On/Off button at least 1... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS 650 VA 850 VA CAPACITY 360 W 480 W INPUT 220/230/240 VAC Voltage 162-265 VAC Voltage range OUTPUT ± %10 Voltage range 2-6 ms, 10 ms max. Transfer time Simulated sine wave Waveform BATTERY 12V 7Ah x 1 12V 9Ah x 1 Type &...
