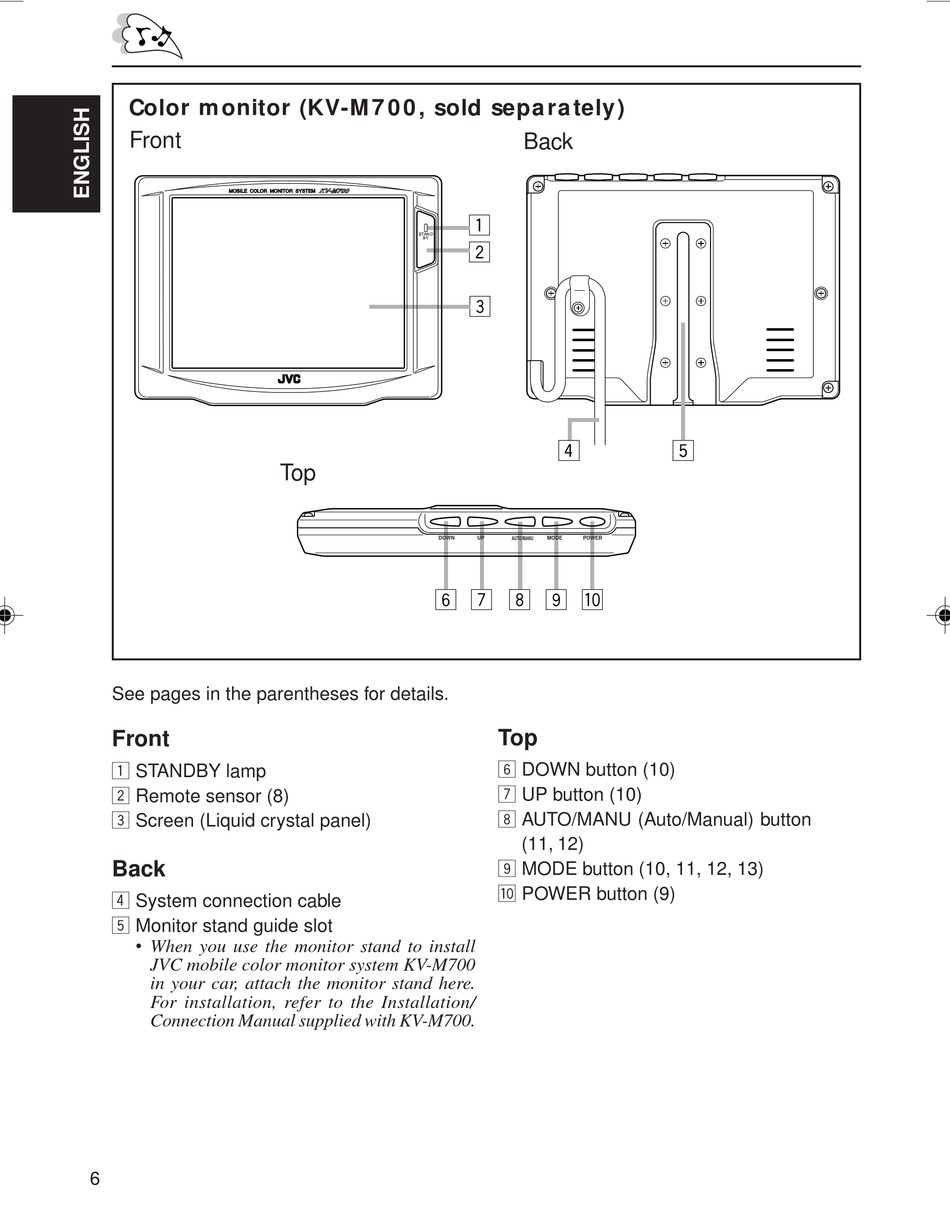

Color monitor (KV-M700, sold separately)

Front
See pages in the parentheses for details.
Front
1 STANDBY lamp
2 Remote sensor (8)
3 Screen (Liquid crystal panel)
Back
4 System connection cable
5 Monitor stand guide slot
• When you use the monitor stand to install
JVC mobile color monitor system KV-M700
in your car, attach the monitor stand here.
For installation, refer to the Installation/
Connection Manual supplied with KV-M700.
6
Top
DOWN
6
Back
1
2
3
4
UP
AUTO/MANU
MODE
POWER
8
9
p
7
Top
6 DOWN button (10)
7 UP button (10)
8 AUTO/MANU (Auto/Manual) button
(11, 12)
9 MODE button (10, 11, 12, 13)
p POWER button (9)
5
