KV-C1007
TV Tuner Unit : Instructions
LVT1392-001A
[EE]
ENGLISH
WARNINGS
• USE WITH DC 12 V NEGATIVE GROUND VEHICLES.
If your vehicle does not have this system, a voltage inverter is required, which can be purchased
at JVC IN-CAR ENTERTAINMENT dealer.
• DO NOT INSTALL THE MONITOR IN A LOCATION WHICH OBSTRUCTS DRIVING AND
VISIBILITY, OR WHERE APPLICABLE LAWS AND REGULATIONS PROHIBIT THE
INSTALLATION.
• NEVER USE BOLTS OR NUTS FROM THE VEHICLE'S SAFETY DEVICES FOR
INSTALLATION.
If bolts or nuts from the steering wheel, brakes or other safety devices are used for installation, it
may cause an accident.
• INSTALL THE ANTENNA IN A PROPER LOCATION.
Be sure to select a location for installation of the antenna so that the antenna is not protruding
beyond the width or the front or back of the vehicle. If it is protruding, it might come into contact
with a pedestrian or other object and cause an accident.
• ATTACH THE WIRES CORRECTLY.
If the wiring is not correctly performed, it may cause a fire or an accident. In particular, be sure
to run and secure the lead wire so that it does not get tangled with a screw or the moving
portion of a seat rail.
To prevent short circuits, it is recommended that you disconnect the battery's negative
terminal and make all electrical connections before installing the unit. If you are not sure how to
install this unit correctly, have it installed by a qualified technician.
• Avoid installing the unit in the following places.
– Where it would hinder your safety driving.
– Where it would be exposed to direct sunlight or heat directly from the heater or placed in an
extremely hot place.
– Where it would be subject to rain, water splashes or excessive humidity.
– Where it would be subject to dust.
– Where it would be positioned on an unstable place.
– Where it could damage the car's fittings.
– Where proper ventilation would not be maintained, such as under a floor mat.
– Where it would be located near inflammable objects (since heat is generated inside the unit).
• Handle the Lithium coin battery (product number: CR2025) with care.
– Store the battery in a place where children cannot reach.
If a child accidentally swallows the battery, consult a doctor immediately.
– Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire.
These behaviors may cause the battery to be overheated, crack or fire.
– Do not leave the battery with other metallic materials.
Doing this may cause the battery to be overheated or cracked. It may cause a fire.
– When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery
may be overheated, crack or fire.
– Do not poke the battery with tweezers or similar tools.
Doing this may cause the battery to be overheated or cracked. It may cause a fire.
Parts list
The following parts are provided with this unit.
After checking them, please set them correctly.
Fixing screws—M4 x 8 mm
Brackets
Battery
CR2025

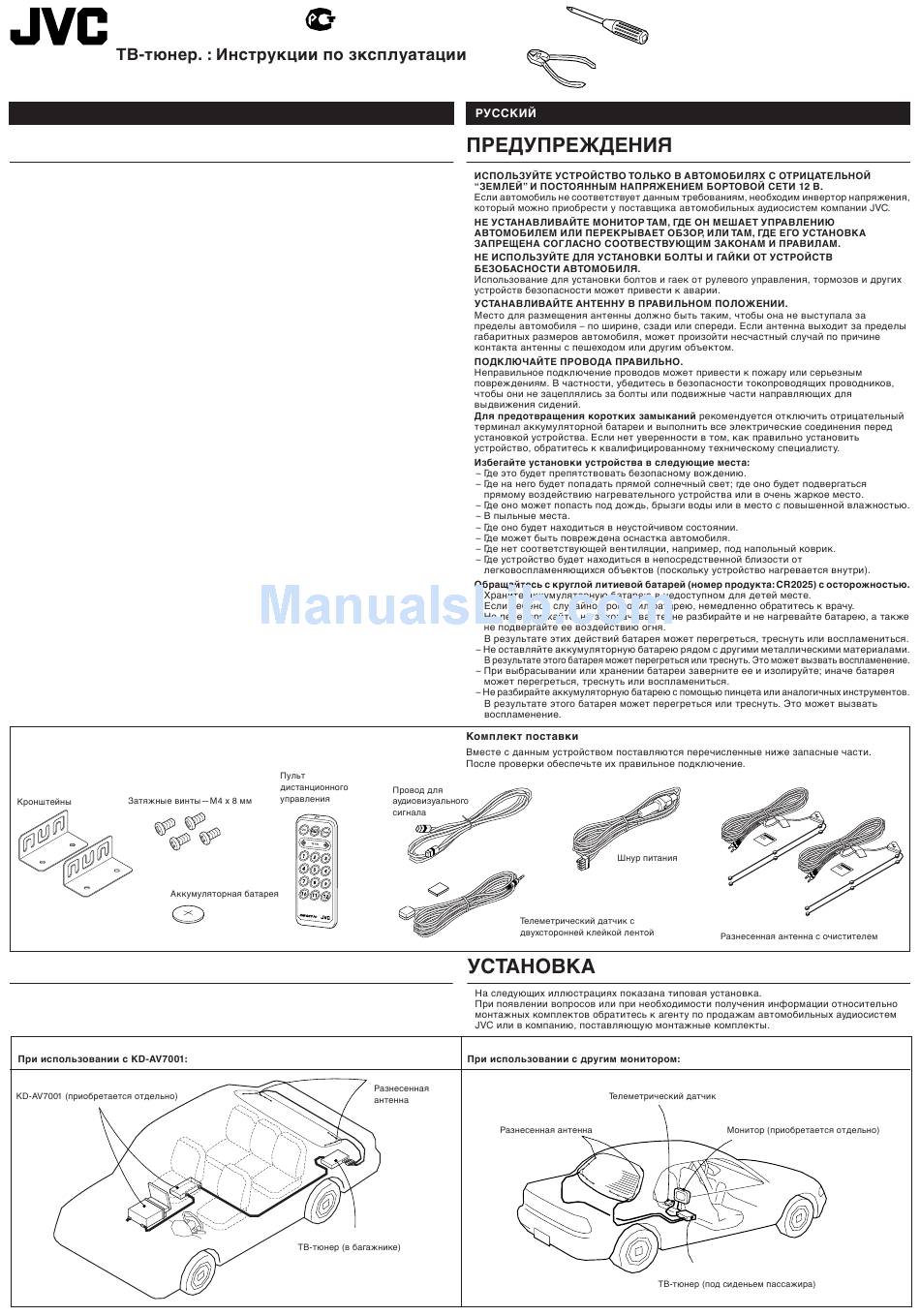

INSTALLATION
• The following illustrations show typical installation.
If you have any questions or require information regarding installation kits, consult your JVC
IN-CAR ENTERTAINMENT dealer or a company supplying kits.
When used with KD-AV7001:
KD-AV7001 (separately purchased)
Remote controller
AV bus cable
RM-RK510
Diversity antenna
TV tuner unit (in trunk)
Power cord
Remote sensor unit with double-faced
adhesive tape
When used with another monitor system:
Remote sensor unit
Diversity antenna
1
0605MNMMDWJEIN
EN, RU
© 2005 Victor Company of Japan, Limited
Diversity antennas with a cleaner
Monitor system (separately purchased)
TV tuner unit (under the passenger's seat)
