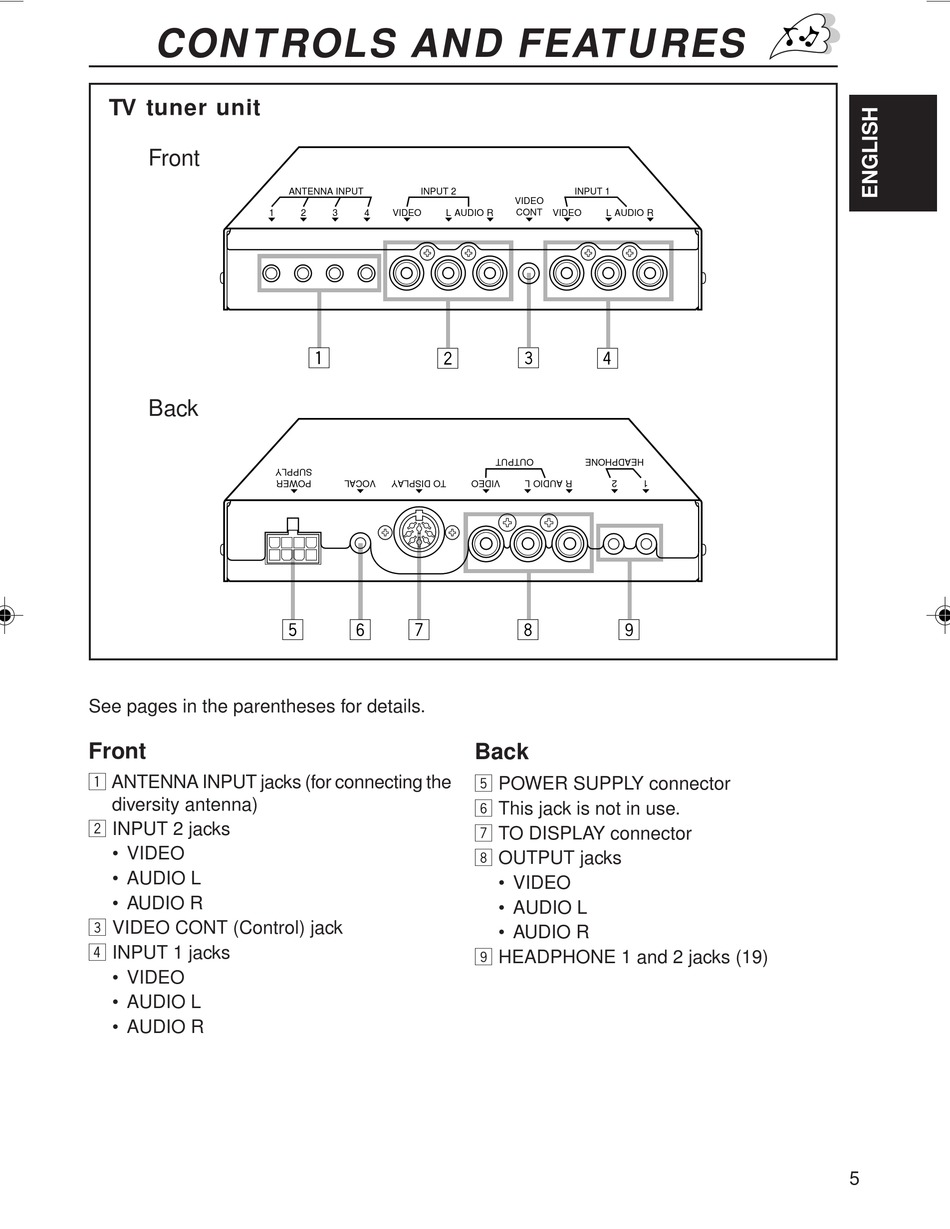

CONTROLS AND FEATURES

TV tuner unit

Front
Back
See pages in the parentheses for details.
Front
1 ANTENNA INPUT jacks (for connecting the
diversity antenna)
2 INPUT 2 jacks
• VIDEO
• AUDIO L
• AUDIO R
3 VIDEO CONT (Control) jack
4 INPUT 1 jacks
• VIDEO
• AUDIO L
• AUDIO R
ANTENNA INPUT
INPUT 2
1
2
3
4
VIDEO
1
SUPPLY
POWER
VOCAL
DISPLAY
5
6
7
INPUT 1
VIDEO
CONT
L AUDIO R
VIDEO
3
2
OUTPUT
HEADPHONE
TO
VIDEO
L AUDIO R
8
Back
5 POWER SUPPLY connector
6 This jack is not in use.
7 TO DISPLAY connector
8 OUTPUT jacks
• VIDEO
• AUDIO L
• AUDIO R
9 HEADPHONE 1 and 2 jacks (19)
L AUDIO R
4
2
1
9
5
