Summary of Contents for APart-Audio APart CM4

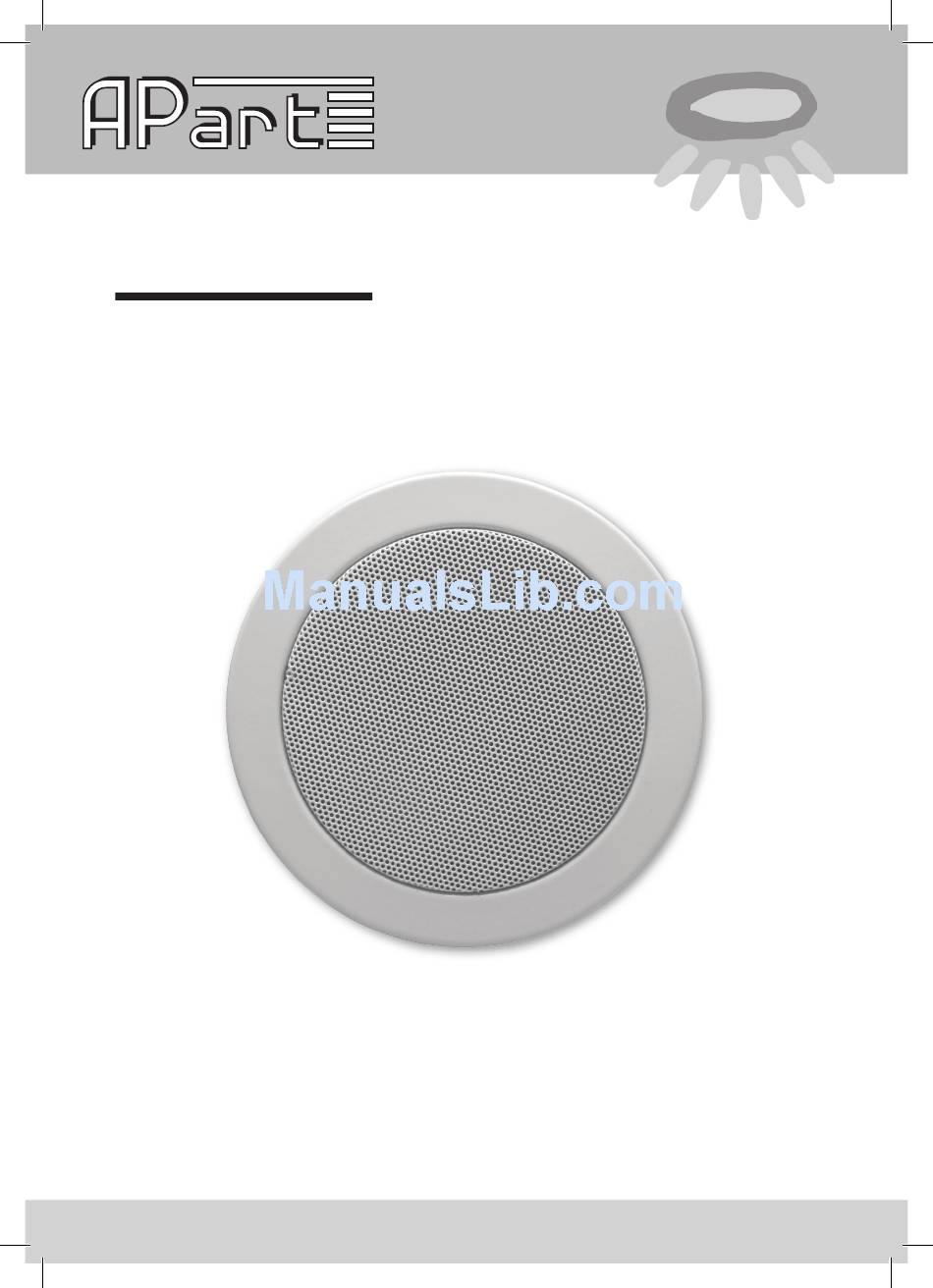

- Page 1 MANUAL INFO@APART-AUDIO.COM...
-
Page 2: Safety Precaution
2 zones of each 4 speakers or one stereo/mono zone with up to 8 APart CM4speakers. The build in filter ensures long life of the speaker and enhances the speaker-response. This speaker is straight forward: connect and play while no need to worry about filtering. -
Page 3: Features And Benefits
• The strong retention spring system enables sufficient strength to allow very thin ceiling material. • 16Ohm voicecoil allows to connect up to 4 APart 16-Ohm capable speakers to each 4Ohm stable amplifier channel. INFO@APART-AUDIO.COM... - Page 4 Using the cutout template Note: when making the hole in your ceiling, double-check if there are no cables or any other obstruction behind the ceiling. Cutting in the ceiling without this check might result in damaged infrastructure and even damaged power lines. WWW.APART-AUDIO.COM...
-
Page 5: Connecting The Speaker
Parallel wiring speaker diagram: Total resistance = 1/R1 + 1/R2 + 1/R3 + 1/R4 + ... R1 = Resistance of speaker 1 R2 = Resistance of speaker 2 R3 = Resistance of speaker 3 R4 = Resistance of speaker 4 INFO@APART-AUDIO.COM... - Page 6 For speech and background music, the CM4 is highly suitable in stand alone operation, for optimum and full bodied music we advice to add one of our subwoofers to your system, like the CMSUB8 or SUBTILE. The APart CMSUB8 stereo ceiling subwoofer is designed to reproduce a fat and deep bass.
-
Page 7: Specifications
Grill construction Metal IP class Protected against falling debris yes, by backside can Fixing type 2 high strenght springs Cut out dimension 115mm Outside dimension 135mm Depth dimension 100mm Max wire size diameter 2,5mm2 Net weight 0,785Kg Gross weight 0,925Kg INFO@APART-AUDIO.COM... - Page 8 Polar diagram 1000 Hz Polar diagram 2000 Hz WWW.APART-AUDIO.COM...
- Page 9 Polar diagram 4000 Hz Polar diagram 8000 Hz INFO@APART-AUDIO.COM...
-
Page 10: Warranty Info
Technical drawing with measurements Warranty info APart-Audio warrants this product to be free of defects in material and workmanship for a period of one year for parts and for a period of one year for labor from the date of original end-user purchase. This warranty is valid only for the original end- user and cannot be transferred. - Page 11 Notes INFO@APART-AUDIO.COM...
- Page 12 Send your ideas or suggestions to suggestions@apart-audio.com Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2010 APart-Audio specifications subject to change without notice. developed by Audioprof nv Industriepark Brechtsebaan 8 bus 1...
