- Page 1 MANUAL OVO5 INFO@APART-AUDIO.COM...

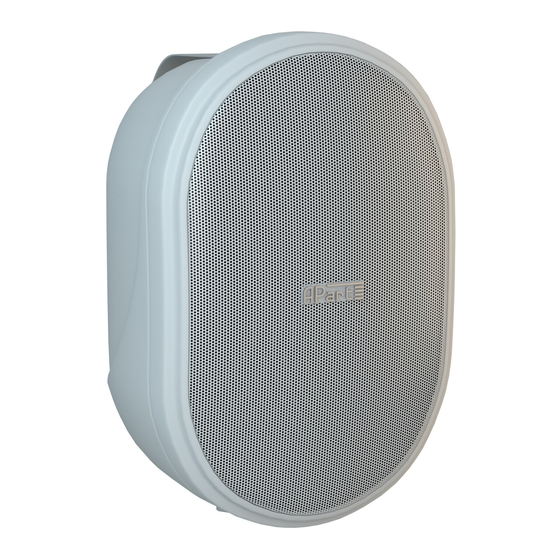

- Page 2 Thanks for purchasing our APart OVO5 speaker. Budget and quality sound united: welcome the OVO-speakers. This series of cabinet speakers fit into any décor or interior style.
- Page 3 • Free stand incorporated in the housing for usage on flat surfaces. • Quick fit cable clamps for quick and easy mounting. • Indoor use only • Can be painted in any RAL color from a minimum of 12pieces. (ref.: PAINTCAB6) INFO@APART-AUDIO.COM...
- Page 4 Parallel wiring speaker diagram: Total resistance = 1/R1 + 1/R2 + 1/R3 + 1/R4 + ... R1 = Resistance of speaker 1 R2 = Resistance of speaker 2 R3 = Resistance of speaker 3 R4 = Resistance of speaker 4 WWW.APART-AUDIO.COM...
- Page 5 180°, 120°, 90° Color white or black Cabinet construction ABS with bass reflex Grille material Steel IP class Fixing type mounting bracket Height (mm) 260mm Width (mm) 170mm Depth (mm) 180mm Net weight (pair) 4,9 Kg Gross weight (pair) 5,7 Kg INFO@APART-AUDIO.COM...
- Page 6 Polar diagram 1000 Hz Polar diagram 4000 Hz Polar diagram 8000 Hz WWW.APART-AUDIO.COM...
- Page 7 Technical drawing with measurements Warranty info APart-Audio warrants this product to be free of defects in material and workmanship for a period of one year for parts and for a period of one year for labor from the date of original end-user purchase. This warranty is valid only for the original end- user and cannot be transferred.
- Page 8 Send your ideas or suggestions to suggestions@apart-audio.com Company names, product names, and names of formats etc. are the trademarks or registered trade- marks of their respective owners. © 2011 APart-Audio specifications subject to change without notice. developed by Audioprof nv Industriepark Brechtsebaan 8 bus 1...
