Summary of Contents for APart-Audio OVO5T
- Page 1 MANUAL OVO5T...

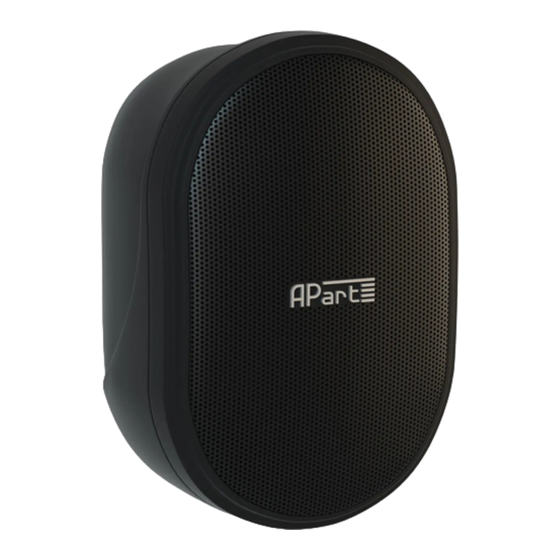

- Page 2 The OVO5T can be used in both 100V- and 16Ohm-systems thanks to an easily accessible selection switch. The OVO5T uses a new bracket system that allows a wide range of positioning. In case you want to place your OVO on a flat surface, you can remove the bracket.
- Page 3 whole system. • Avoid loud feedback from microphones, this can damage your speaker. • Please check the units condition after unpacking. If the outside of the carton box has been damaged, inform your shipper immediately. • Take notice that this speaker is intended for indoor use only. Do not expose the speaker to direct rain.
- Page 4 Connecting the speaker Use the correct polarity when daisy chaining speakers! When a mistake occurs in your daisy chain, it can severely impact speaker performance as there will be audio-cancellation. The daisy chain options are endless and the setup will depend on the capabilities of your amplifier.
- Page 5 100V technology ≥ 2.5W 2.5W 70 Watt 120 Watt Amplifier Amplifier power must be equal higher than total power of all speakers Specifications Woofer 5,25 inch coated paper Tweeter 1 inch silk dome tweeter Shape cabinet 100 Volt power taps 30W, 15W, 6W, 3W Music power RMS 80 W / 16 Ohm...
- Page 6 Polar diagram 1000 Hz Polar diagram 4000 Hz Polar diagram 8000 Hz...
- Page 7 Technical drawing with measurements Warranty info APart-Audio warrants this product to be free of defects in material and workmanship for a period of one year for parts and for a period of one year for labor from the date of original end-user purchase. This warranty is valid only for the original end- user and cannot be transferred.
- Page 8 Company names, product names, and names of formats etc. are the trademarks or registered trade- marks of their respective owners. © 2011 APart-Audio specifications subject to change without notice. developed by Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten...
