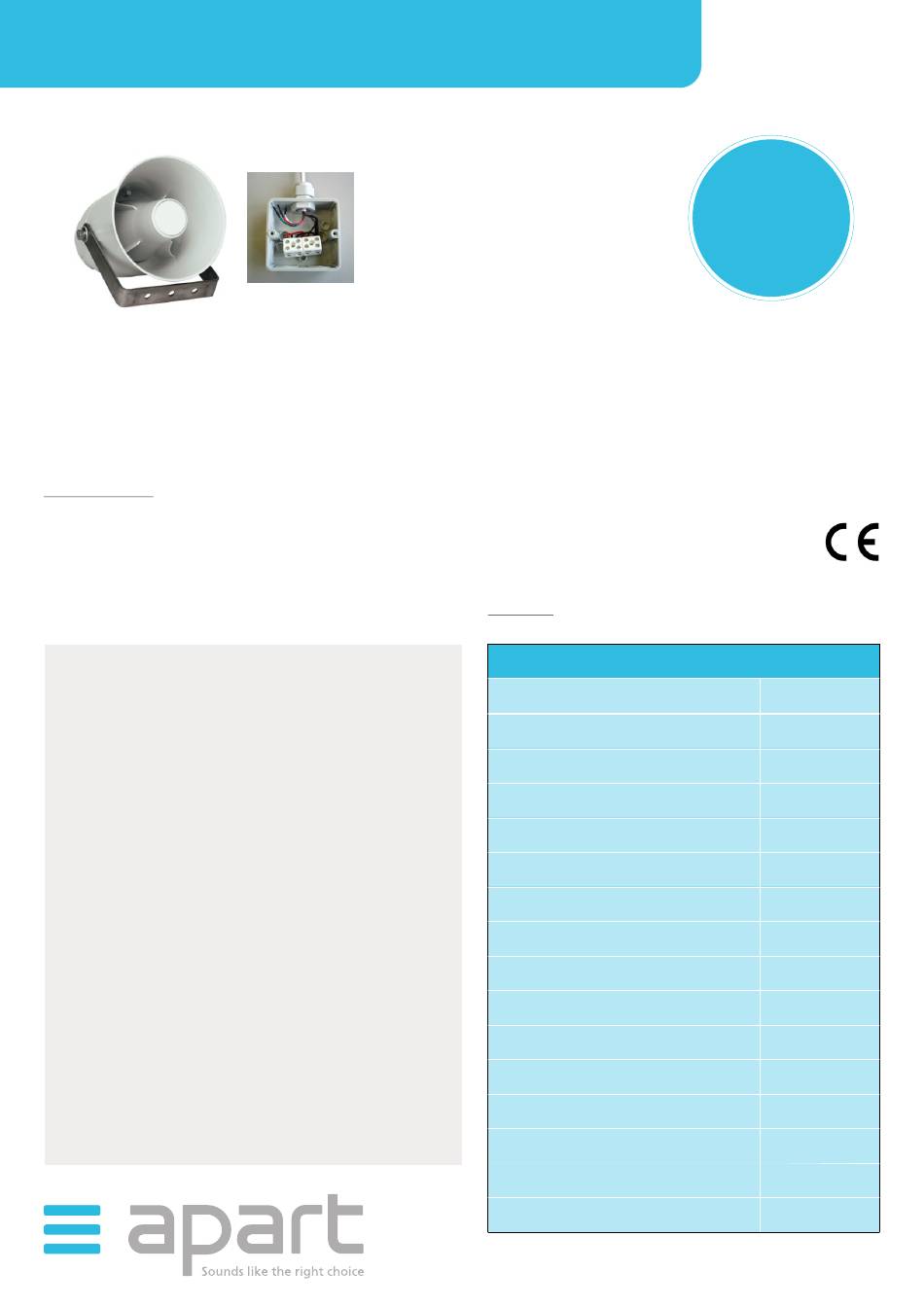

APart-Audio EN-H10-G Quick Start Manual

Certificate No.: 1438/CPD/XXXX

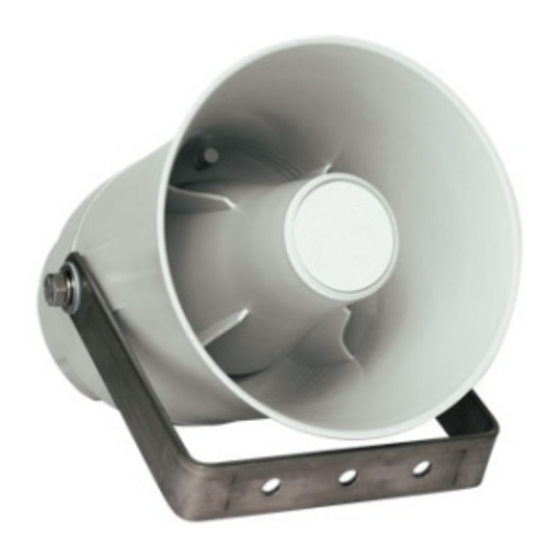

The Apart-Audio EN-H10-G is a powerful horn speaker made of UV and impact resistant ABS (RAL 7035 equivalent), (UL94V0), equipped with a compression driver and
a multitap 100 volt transformer, all certified according EN 54-24. Ip66 makes it the ideal choice for industrial applications.
The unit is equipped with a ceramic speaker line connector block, junction box, thermal fuse and stainless installation bracket. The unit can be used as a low impedance
speaker by setting the power selector switch to the 20 ohms position. Lo-Z impedance and power: 20 ohms, 10 watt.
The highlights are: Ip66, weather resistant ABS, junction box, lo-Z and 100 volt.
Not included: cable gland for the cable from the power amplifier to the junction box.

Mounting instructions

1. Install the bracket and junction box on a wall or ceiling.
2. Connect the speaker cable to the power amplifier.
3. Set the power selector switch at the rear of the speaker as required.

Safety precautions

• Keep this manual for future reference.
• When making the hole in your mounting panel to mount the Apart
speaker, make sure there is sufficient clearance behind the panel
(no obstructions like A/C channels, power lines etc, ...).
• Take care of your speaker wires, they should be free of damage. Damaged
speaker wires may result in poor sound quality and can damage amplifiers.
• Only use accessories specified by the manufacturer.
• Make sure the mounting panel can support the speaker's weight.
• Use a sufficient amount of speakers to avoid dead spots.
• No main power shall be connected to the loudspeakers, doing so will
damage the speaker.
• This apparatus should only be serviced by qualified personnel. If not
serviced by qualified personnel, warranty may be void.
• Use cable of the right gauge, certainly for long runs.
• Use cables with clear color indication and maintain polarity throughout
the whole system.
• Avoid loud feedback from microphones, this can damage your speaker.
• Please check the unit's condition after unpacking. If the outside of the
carton box has been damaged, inform your shipper immediately.

Warranty info

Apart Audio warrants this product to be free of defects in material and
workmanship for a period of one year for parts and for a period of one year
for labor from the date of original end-user purchase. This warranty is valid
only for the original end-user and cannot be transferred.
During the warranty period Apart Audio or one of its authorized service
partners shall either repair or replace any product, free of charge, that proves
to be defective on inspection by Apart Audio or its authorized service
representative.This warranty does not include, damages or product faults due
to abuse, misuse or faulty installation.

Legal info

Audioprof nv
Industriepark Brechtsebaan 8 bus 1, 2900 Schoten - Belgium
Company names, product names and trademarks are property of their
respective owners. Apart-Audio specifications are subject to change without
notice.
HORN SPEAKER
Please note: to obtain the frequency response requested in EN54-24,
an equalizer has to be integrated into the signal path.

Technical specifications

Speaker type
Diameter x depth
Colour
100 volt transformer power taps
Lo-Z impedance
Lo-Z power
Frequency response (-10 dB, IEC268-5)
Frequency range
Dispersion angle -6 db, 500 Hz / 1 kHz / 2 kHz / 4 kHz
SPL 1W / 1m (IEC268-5)
SPL 1W / 4m (IEC268-5)
SPL Pmax / 4m (IEC268-5)
SPL Pmax / 1m (IEC268-5)
Sensitivity EN54-24, 1W / 4m
IP classification
Chassis material
EN-H10-G
EN 54-24
certified
compression driver
142 x 210 mm
RAL 7035
10/5/2.5/1,25 watts
20 ohms
10 watt
418 - 12400 Hz
370 - 13000 Hz
360° / 235° / 90° / 46°
98.0 dB
86.0 dB
96.0 dB
108 dB
74.5 dB
66
ABS plastic
