Summary of Contents for APart-Audio SDQ5PIR-WH
- Page 1 MANUAL SDQ5Pir...

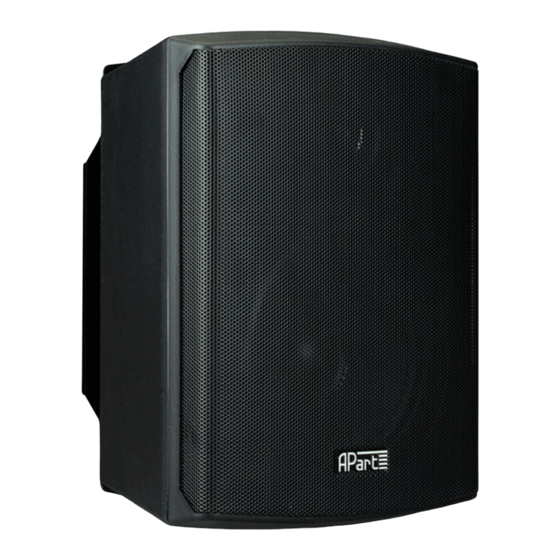

- Page 2 Features The APart SDQ5Pir powered loudspeaker set is a versatile and very compact, easy to use, plug and play sound system. It consists of an amplified loudspeaker with a 5.25” woofer, a high frequency unit and a second linkable passive loudspeaker, powered by the second amplifier built into the active speaker. The speakers are magnetically shielded.
-
Page 3: Rear Panel
Rear panel 1. Power switch: turn mains power on and off. 2. Power cord inlet: attach the power cord supplied to this socket. The inlet also contains the mains fuse. 3. Multifunction led: this led is orange in standby mode, green when the speaker is active and red when an overload or clipping occurs. - Page 4 RS232 communication Communication with SDQ5Pir via RS232 is done with simple ASCII Commands and Replies. The port settings are 19200 Baudrate, 8 databits, no parity and 1 stop bit. The physical connection is as described below: Standard 9 pin serial cable, wired straight through (no null modem cable !!!). Maximum wire length depends on cable quality and influence from external interference.
- Page 5 Configuration Settings: SELECT is input source selection, a possible command could look like this: “Set select AB<CR>”. In this case, both inputs A and B will be mixed together by the SDQ5Pir unit. Possible values are A, B, AB or WI.
- Page 6 Restore Factory Settings: The factory defaults are shown in the RS232 commands table. In order to restore the factory default settings, enter the following command: SET RESTORE ON<CR> This function can also be executed without using RS232 commands. In that case, power off the speaker. While pushing BASS + and - buttons on the rear panel simultaneously, power up the speaker with the power switch.
- Page 7 RS232 COMMANDS Attribute Description Commands Value Factory default SDQLVL Volume level GET, SET, INC, OFF (-64) -63 to 0 MAXLVL Maximum GET, SET BACK, OFF (-64) BACK allowed level -63 to 0 BALANCE Left - right GET, SET -31 to 31 balance SELECT Source selection...
-
Page 8: Ir Remote Control
ir Remote Control The included infrared remote control unit is powered by a standard CR2025 3V lithium battery. Before first use, carefully remove the transparent battery saver. When the battery is empty, replace with the same type only. Slide out the battery holder from the remote control unit, remove the empty battery and put a fresh one in place. - Page 9 ir Commands Function ir COMMAND Power ON Power STANDBY Input A Input B Input A + B Input WALL Level UP Level Down MUTE Bass UP Bass DOWN SDQ5Pir device code is “807F” Treble UP Infrared commands have been coded according to the NEC®...
-
Page 10: Technical Specifications
Technical specifications Speaker type 2 way bass reflex, active Input impedance minijack input A 5 k ohm Input sensitivity minijack input A 175 mV (-15dBV) Input impedance balanced input B 22 k ohm Input sensitivity balanced input B 175 mV (-15dBV) Tone control bass +- 14 dB @ 100 Hz in 2 dB steps Tone control treble... -
Page 11: Important Safety Instructions
Important safety instructions • Please check the carton box for any kind of damage on reception of the goods. In case of a damaged carton, please contact your dealer before opening the carton. • Read all documentation before operating your equipment. •... - Page 12 Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2009 APart-Audio specifications subject to change without notice.
